8460SRE10.00

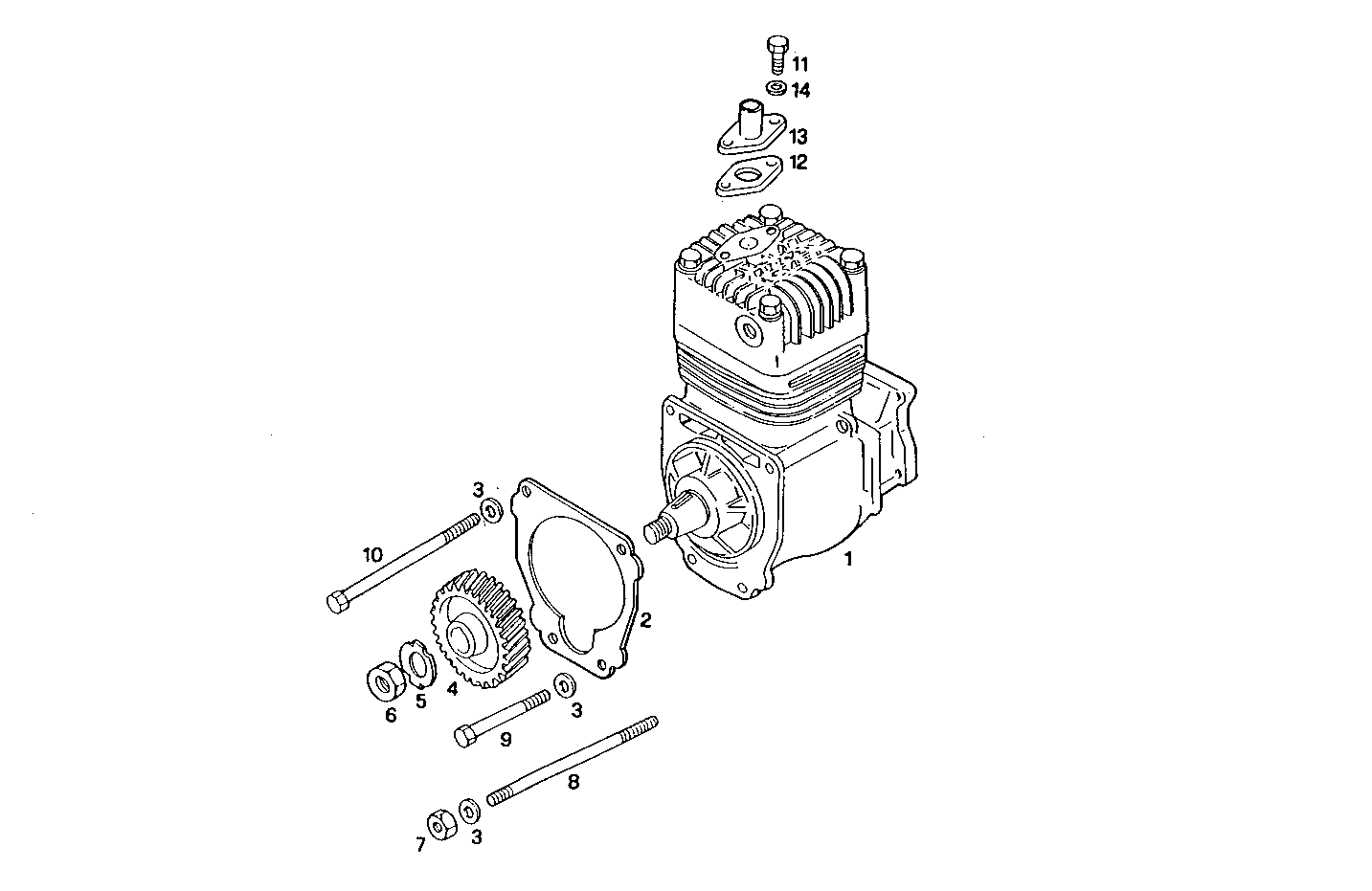

A18050013 AIR COMPRESSOR - 250cc MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 99440235 | AIR COMPRESSOR ASSY BENDIX |
| 2 | 4864032 | FLAT ENGINE GASKET |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 61316311 | COMP. DRIVE GEAR |
| 5 | 4709364 | LOCKING PLATE |
| 6 | 99471892 | HEXAGON NUT |
| 7 | 17038221 | HEXAGON NUT M10 |
| 8 | 8005308 | STUD |
| 9 | 15972121 | SCREW M10X1,25X115 |
| 10 | 15972621 | HEXAGON BOLT M10X1,25X140 MM |
| 11 | 16043521 | SCREW M8X22 |
| 12 | 4863948 | FLAT ENGINE GASKET |
| 13 | 4699303 | PIPE |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
