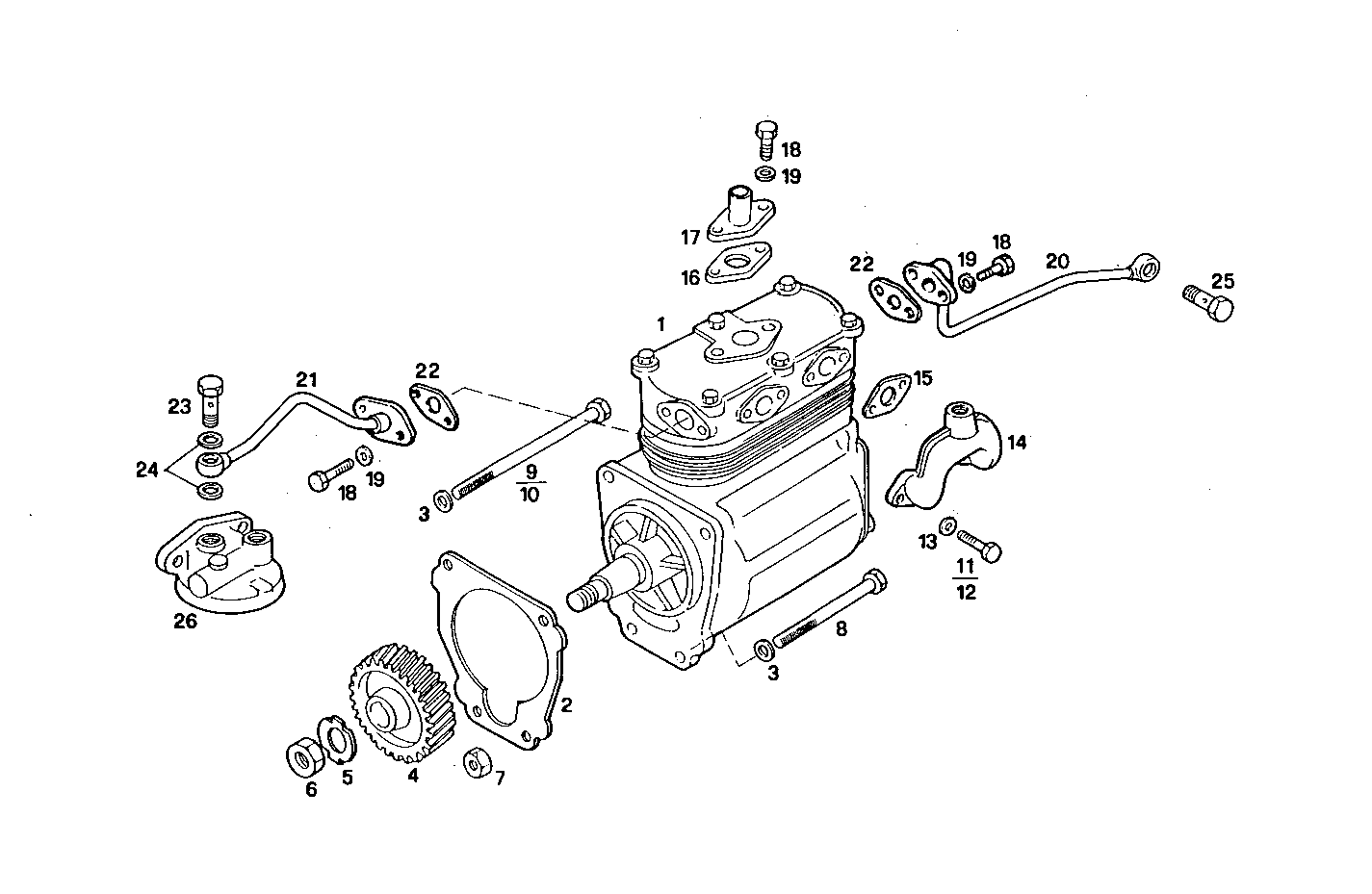

A18060006 AIR COMPRESSOR - 400cc MARELLI

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 99440236 AIR COMPRESSOR ASSY
2 61319045 FLAT ENGINE GASKET
3 17090174 SPRING WASHER Ø10X20 MM
4 61316311 COMP. DRIVE GEAR
5 4709364 LOCKING PLATE
6 99471892 HEXAGON NUT
7 17038221 HEXAGON NUT M10
8 15972221 SCREW M10X1,25X120
9 61316114 HEXAGON BOLT M10X1,25X230 MM
10 16162121 HEXAGON BOLT M10X275 MM
11 16605824 HEXAGON BOLT M8X35 MM
12 16690624 CYLIND-HEAD SCREW M8X25 MM
13 17798373 WASHER
14 61320549 EXHAUST ELBOW
15 61319097 FLAT ENGINE GASKET
16 61319095 FLAT ENGINE GASKET
17 61320308 SUCTION LINE
18 16605524 HEXAGON BOLT M8X20 MM
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 61319143 WATER PIPE
21 61318457 WATER PIPE
23 98429224 SCREW CONNECTOR
24 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
25 4864085 SCREW CONNECTOR M18X1,5
26 61319660 SUPPORT
