8460SRE10.00

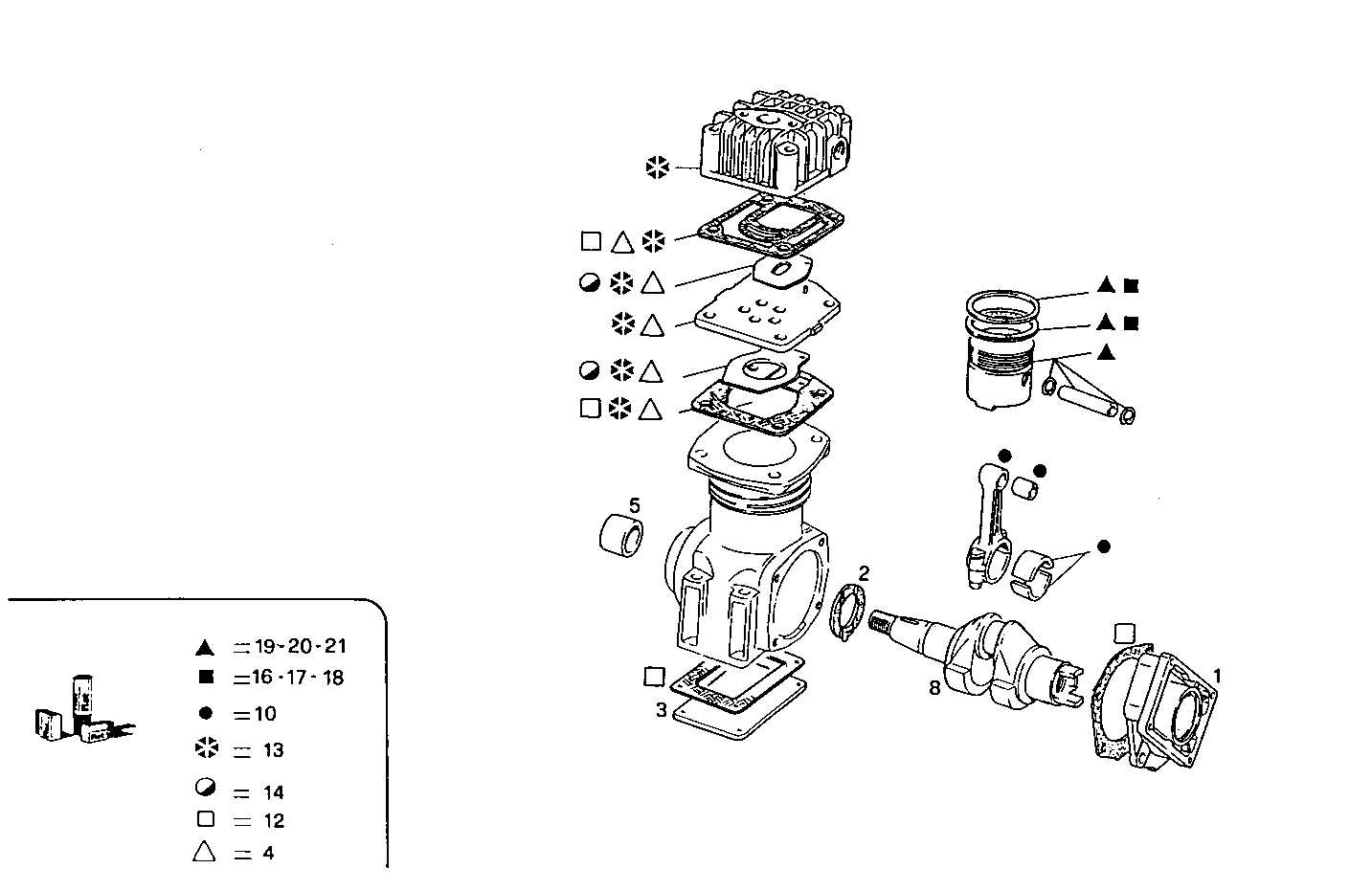

T1805004 AIR COMPRESSOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 75428612 | FLANGE |
| 2 | 75314712 | RING |
| 3 | 8199051 | COVER BOTTOM |
| 4 | 98161595 | KIT-AIR COMPRESSOR |
| 5 | 75481210 | BUSH |
| 8 | 75518301 | SHAFT |
| 10 | 76670702 | KIT-AIR COMPRESSOR |
| 12 | 93161590 | KIT-AIR COMPRESSOR |
| 13 | 93161597 | KIT-AIR COMPRESSOR |
| 14 | 79071642 | KIT-AIR COMPRESSOR |
| 16 | 93161305 | KIT-AIR COMPRESSOR Ø80 MM |
| 17 | 93161306 | KIT-AIR COMPRESSOR Ø80,2MM |
| 18 | 93161307 | KIT-AIR COMPRESSOR Ø80,5MM |
| 19 | 76633501 | KIT-AIR COMPRESSOR |
| 20 | 76633401 | KIT-AIR COMPRESSOR |
| 21 | 76633301 | KIT-AIR COMPRESSOR |
