8460SRE10.00A003

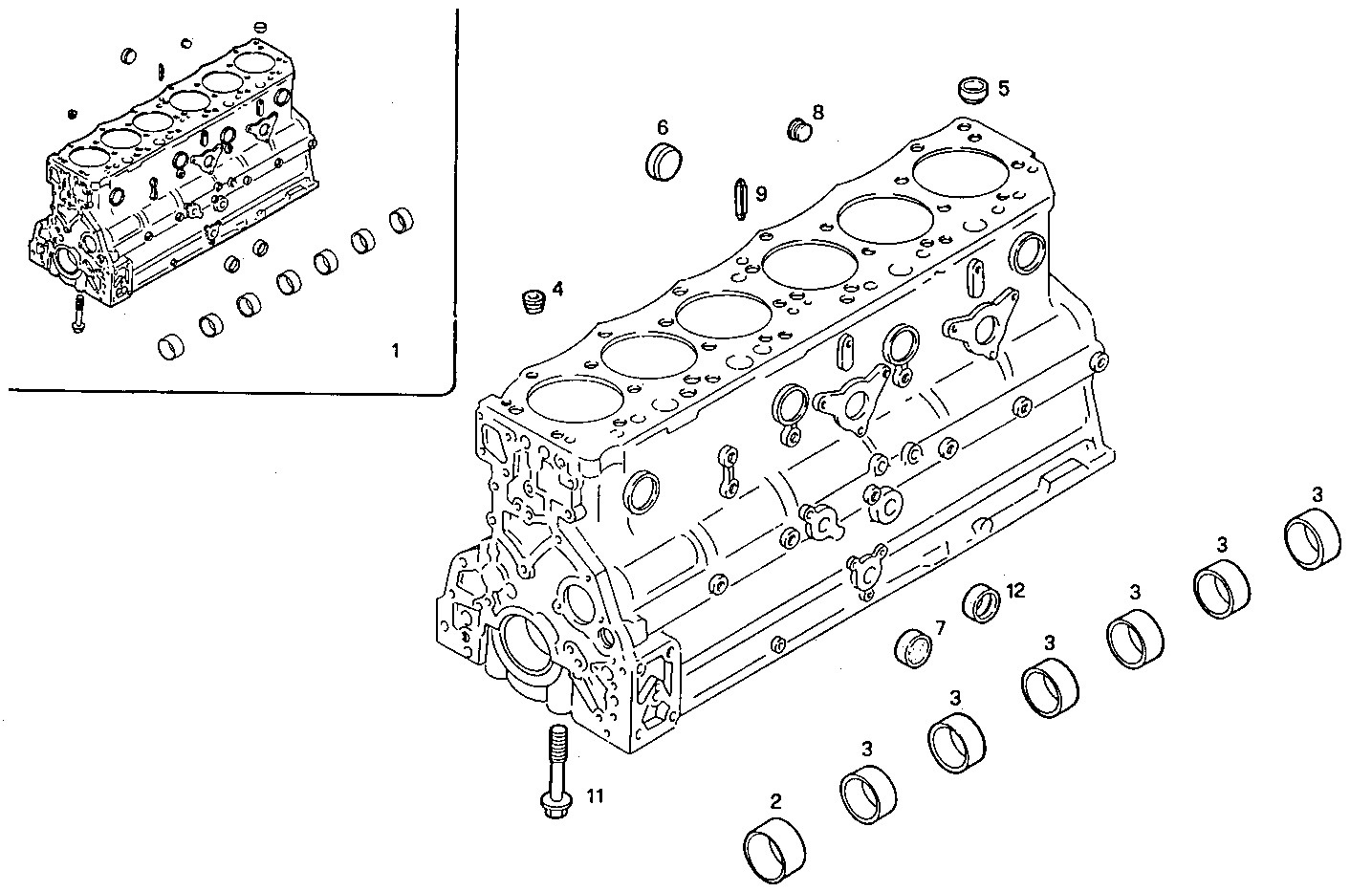

0400.097/01 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 61320884 | CRANKCASE ASSY |
| 2 | 61317181 | CAMSHAFT BEARING |
| 3 | 61317180 | CAMSHAFT BEARING |
| 4 | 16997411 | THREADED PLUG M16X1,5 |
| 5 | 16991170 | LOCK PLUG Ø36 MM |
| 6 | 14282870 | LOCK PLUG Ø40 MM |
| 7 | 16991370 | LOCK PLUG Ø45 MM |
| 8 | 61319492 | LOCK PLUG M12X1,5 |
| 9 | 14612670 | DOWEL PIN Ø12,5 MM |
| 11 | 61315554 | CRAHKSFT.BEAR.STUD |
| 12 | 16991470 | LOCK PLUG Ø50 MM |
