8460SRE10.00A003

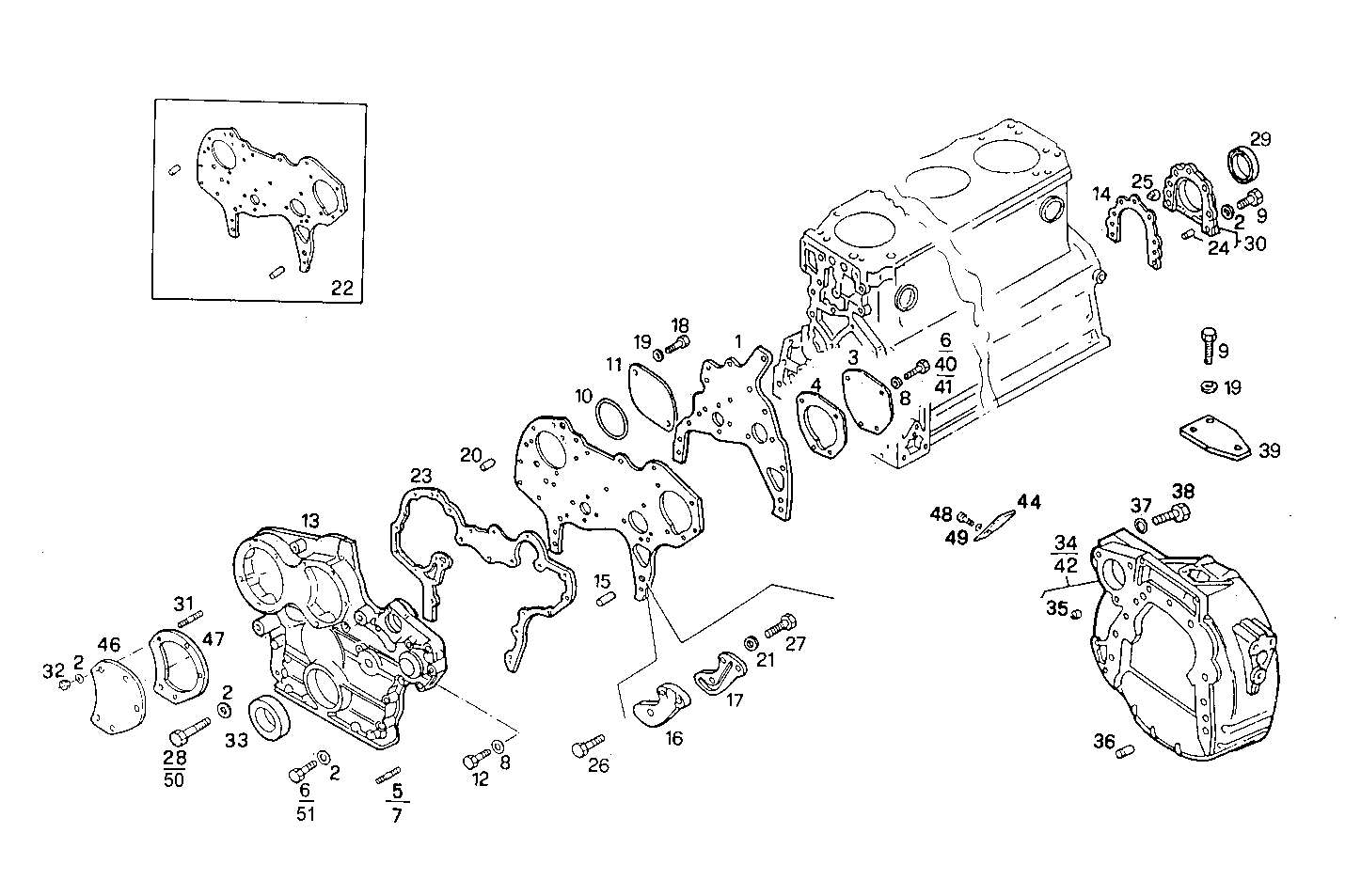

0430.225 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 61319059 FLAT ENGINE GASKET
2 17089574 WASHER Ø8X16 MM
3 61583713 COVER
4 61319045 FLAT ENGINE GASKET
5 13547021 STUD
6 16605524 HEXAGON BOLT M8X20 MM
7 13546521 STUD M10X1,25X20X30 MM
8 17090274 WASHER Ø10X20 MM
9 16605624 HEXAGON BOLT M8X25 MM (8.8)
10 61318654 O-RING
11 8016615 COVER
12 16044724 SCREW M8X75
13 61319090 FRONT C.CASE COVER
14 61319046 FLAT ENGINE GASKET
15 61316841 THREADED INSERT
16 61315071 FLANGE
17 61319044 FLAT ENGINE GASKET
18 16605734 HEXAGON BOLT M8X30 MM
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 61316840 THREADED INSERT
21 61316021 RING
22 61318546 PLATE
23 61319058 FLAT ENGINE GASKET
24 61577156 DOWEL PIN
25 61581074 DOWEL PIN
26 61584440 HEXAGON BOLT
27 61584442 CYLIND-HEAD SCREW
28 16606724 HEXAGON BOLT M8X90 MM
29 40101471 OIL RETAINER REAR
30 61672682 COVER ASSY
31 16746624 STUD M8X20 MM (8.8)
32 17042531 HEXAGON NUT M8
33 98467211 WASHER FRONT
34 61317966 REAR C.CASE COVER
35 61316846 CENTERING PIN
36 61316847 CENTERING PIN
37 61229230 SPRING WASHER Ø14 MM
38 15860134 SCREW M14X1,5X50
39 61586481 PLATE
40 15888734 HEXAGON BOLT M10X1,25X55 MM
41 15972024 HEXAGON BOLT M10X1,25X110
42 61088863 REAR C.CASE COVER ASSY
44 61320467 COVER
46 61317134 SIDE COVER
47 61319061 FLAT ENGINE GASKET
48 15544021 SCREW
49 12646901 WASHER Ø12X28 MM
50 15971724 HEXAGON BOLT M10X1,25X95 MM
51 16045121 HEXAGON BOLT M8X95 MM
