8460SRE10.00A003

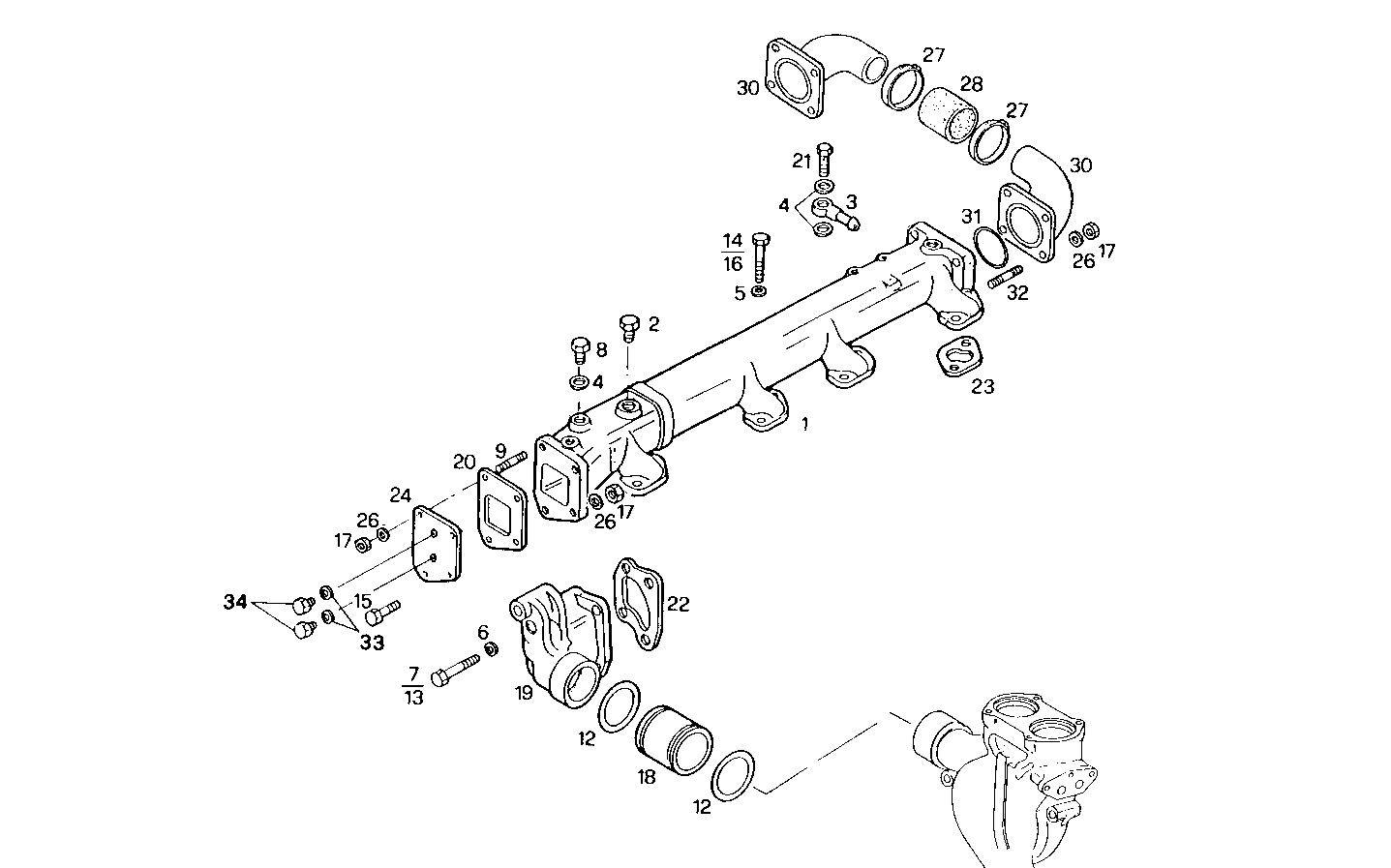

3210.138/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 61315629 WATER MANIFOLD
2 16997411 THREADED PLUG M16X1,5
3 98417685 PIPE
4 4858607 WASHER Ø12X17 MM SP=1,5 MM
5 17089574 WASHER Ø8X16 MM
6 17090274 WASHER Ø10X20 MM
7 11306921 SCREW M10X1,25X30
8 16992211 THREADED PLUG M12X1,5
9 16746824 STUD M8X30 MM (8.8)
12 17296081 O-RING Ø56,52X5,33 MM
13 15971321 HEXAGON BOLT M10X1,25X75 MM
14 16606324 HEXAGON BOLT M8X60 MM
15 16605824 HEXAGON BOLT M8X35 MM
16 16605734 HEXAGON BOLT M8X30 MM
17 17037931 HEXAGON NUT M8X1,25
18 61317101 CONNECTOR SLEEVE
19 8014862 WATER PIPE WATER
20 61318822 FLAT ENGINE GASKET
21 8009696 SCREW CONNECTOR M12X1,5X25
22 61318820 FLAT ENGINE GASKET
23 61319050 FLAT ENGINE GASKET
24 8017510 COVER
26 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
27 17765091 CLIP Ø60/80 MM
28 8016642 WATER HOSE
30 8016620 EXHAUST COOL. ELBOW
31 17290281 O-RING Ø63,09 MM SP=3,53 MM
32 16729424 STUD M8X1,25X25
33 4858608 SEAL GASKET dia.14x19,5x1,5
34 16992311 LOCK PLUG M14X1,5
