8460SRE10.00A003

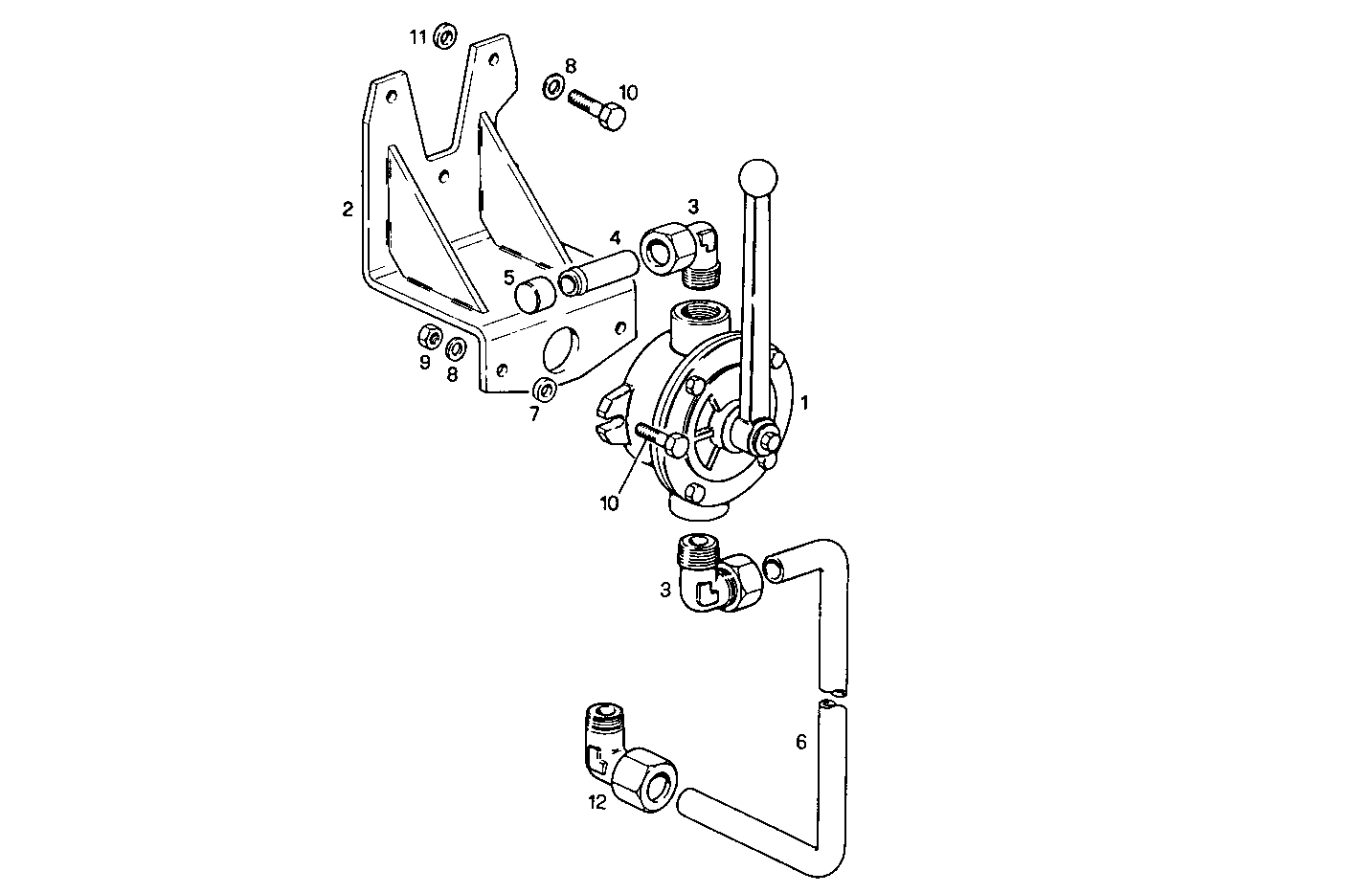

5510.034 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8017343 | SUPPORT |
| 3 | 8111456 | PIPE SOCKET |
| 4 | 8104754 | OIL LINE |
| 5 | 93013662 | PLUG |
| 6 | 8020907 | OIL LINE |
| 7 | 17816011 | SPACING BAR Ø8,5 MM SP=5 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16605734 | HEXAGON BOLT M8X30 MM |
| 11 | 17816214 | SPACER Ø10X8,5X18 MM |
| 12 | 8111454 | PIPE SOCKET M22X1,5 |
