8460SRE12.00

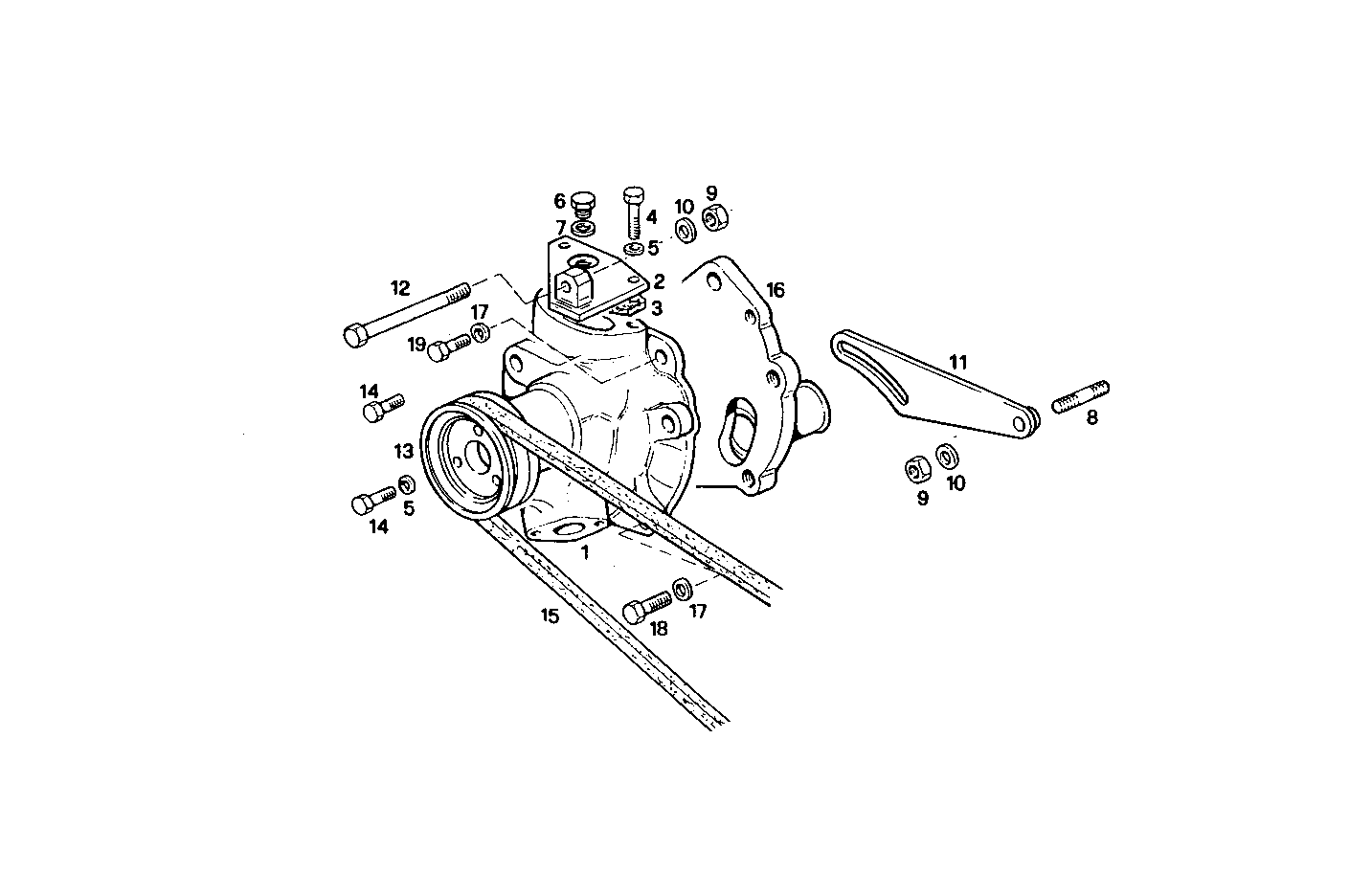

3320.003 AUXILIARY WATER PUMP

Iveco/FPT AUXILIARY WATER PUMP

Item Part number Description
1 8108385 WATER PUMP ASSY
2 8018264 COVER
3 4767560 GASKET
4 16605524 HEXAGON BOLT M8X20 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 11903111 LOCK PLUG M10X1,25
7 4858606 GASKET Ø10X14X1 MM
8 13449721 STUD M10X15X30
9 17157221 NUT M10X1,25
10 4513436 SUPPORT RING Ø10X21X2 MM
11 8018265 BELT TENSIONER
12 15972621 HEXAGON BOLT M10X1,25X140 MM
13 8018263 PULLEY
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 500385852 ALTERNATOR BELT
16 8100617 COVER
17 17090174 SPRING WASHER Ø10X20 MM
18 11343824 HEXAGON BOLT M10X1,25X50 MM
19 11227924 SCREW
