8460SRi10.00A016

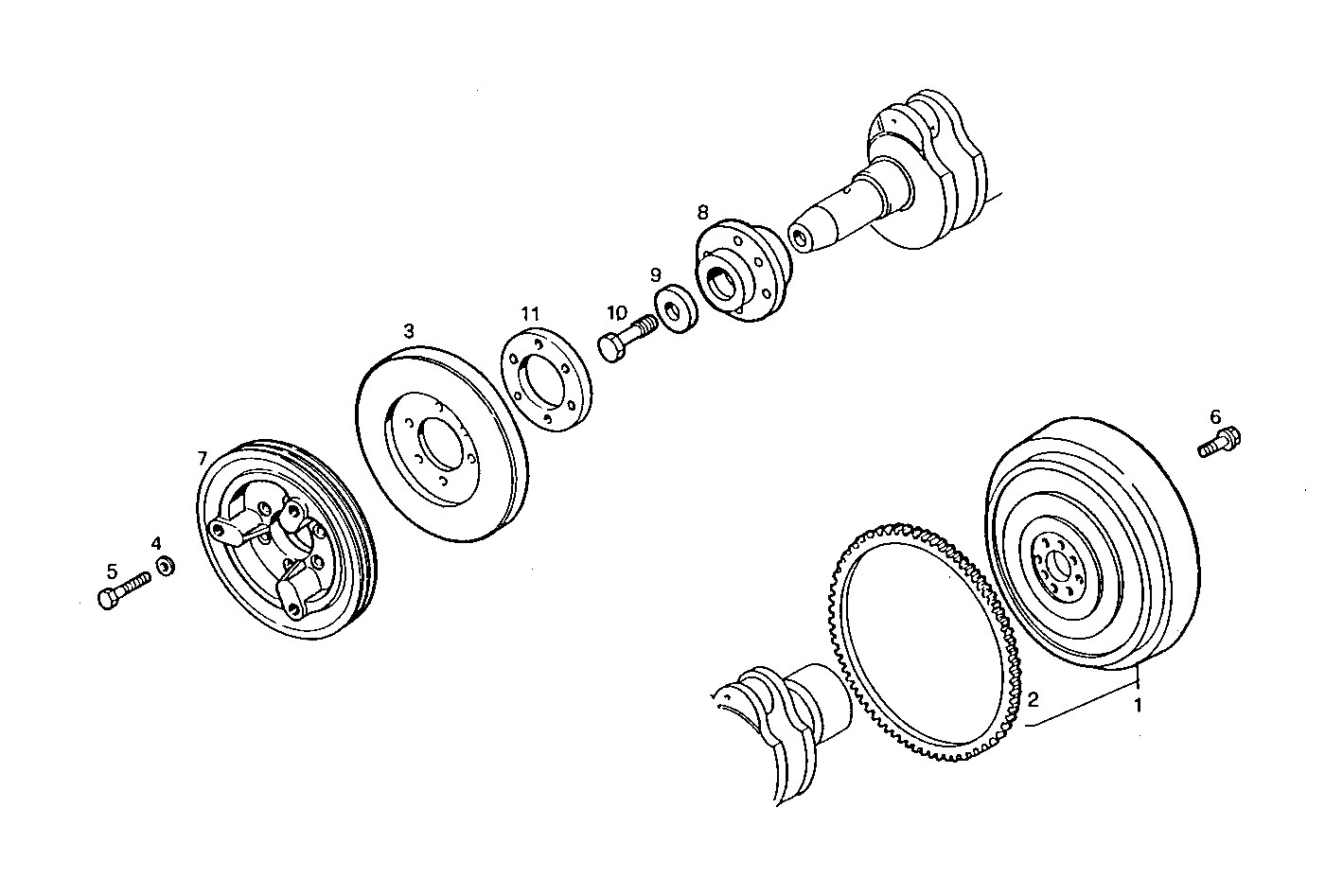

0830.122 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 8017338 | FLYWHEEL ASSY |
| 2 | 61578844 | RING GEAR |
| 3 | 61316389 | VIBRATION DAMPER DAMPERS |
| 4 | 17091074 | WASHER Ø12X24X2,8 MM |
| 5 | 15541221 | HEXAGON BOLT M12X1,25X70 MM [up to 565948] |
| 6 | 4765554 | SCREW |
| 7 | 8018293 | PULLEY |
| 8 | 61317126 | DAMPER HUB |
| 9 | 61577278 | WASHER |
| 10 | 61317125 | HEXAGON BOLT |
| 11 | 8006899 | SPACING BAR |
