8460SRi11.00

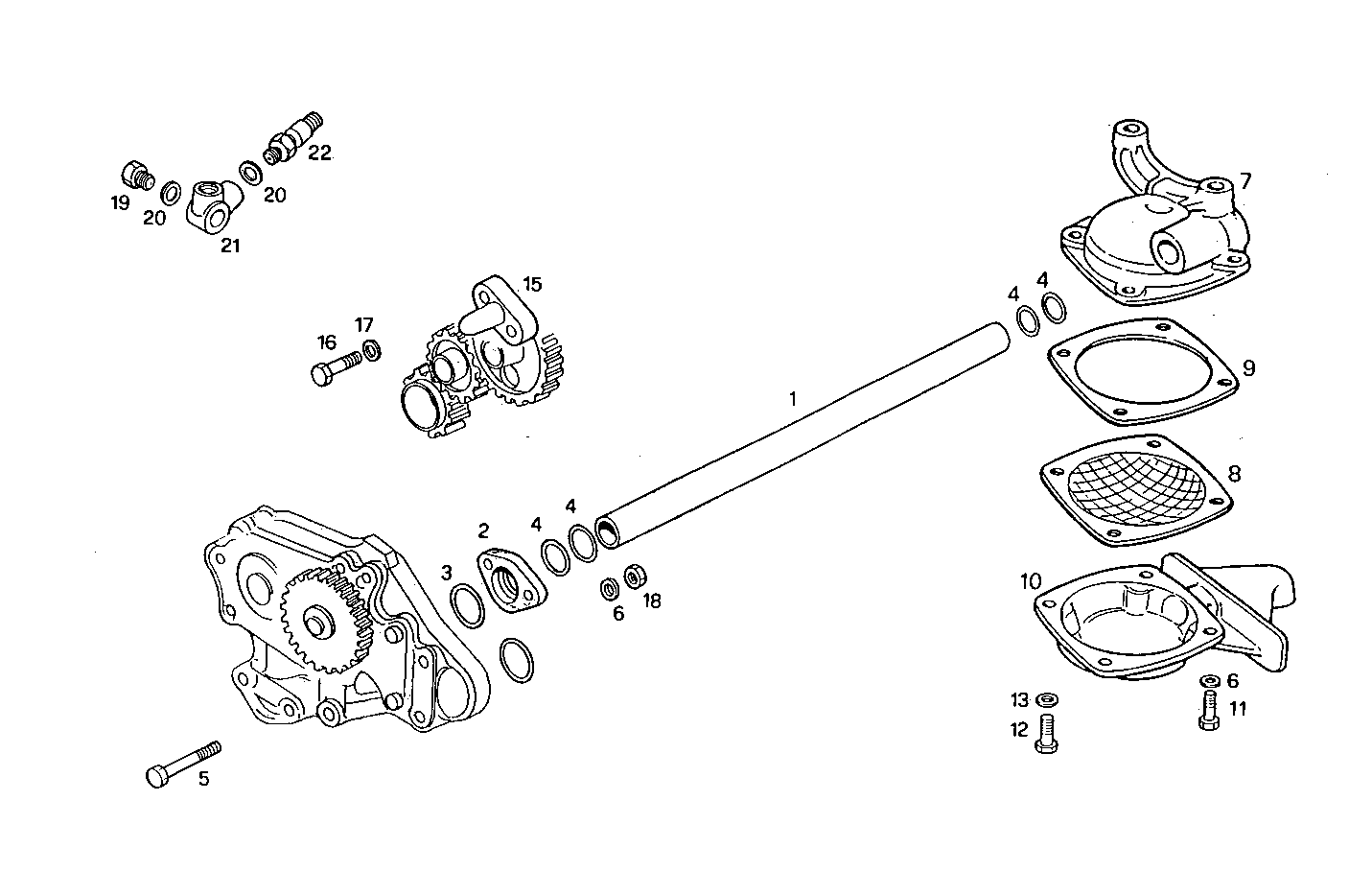

3010.087/01 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 61320868 OIL LINE
2 61317784 FLANGE
3 17288981 O-RING Ø29,74 MM SP=3,53 MM
4 14463581 O-RING SP=3,53 MM
5 16606424 HEXAGON BOLT M8X65 MM
6 11194074 WASHER Ø8,4 MM
7 61316168 SUCTION STRAINER
8 4673581 FILTER
9 61319056 FLAT ENGINE GASKET
10 61319037 SUCTION STRAINER
11 16043624 SCREW M8X25
12 16603824 SCREW M6X25
13 11194874 SPRING WASHER Ø6X18X1,6 MM
15 61586093 OIL NOZZLE
16 16603724 HEXAGON BOLT M6X20 MM (8.8)
17 17799374 SPRING WASHER Ø6X12 MM
18 17037931 HEXAGON NUT M8X1,25
19 16992311 LOCK PLUG M14X1,5
20 4858608 SEAL GASKET dia.14x19,5x1,5
21 61319226 BANJO COUPLING
22 61319225 SCREW CONNECTOR
