8460SRi11.00A004

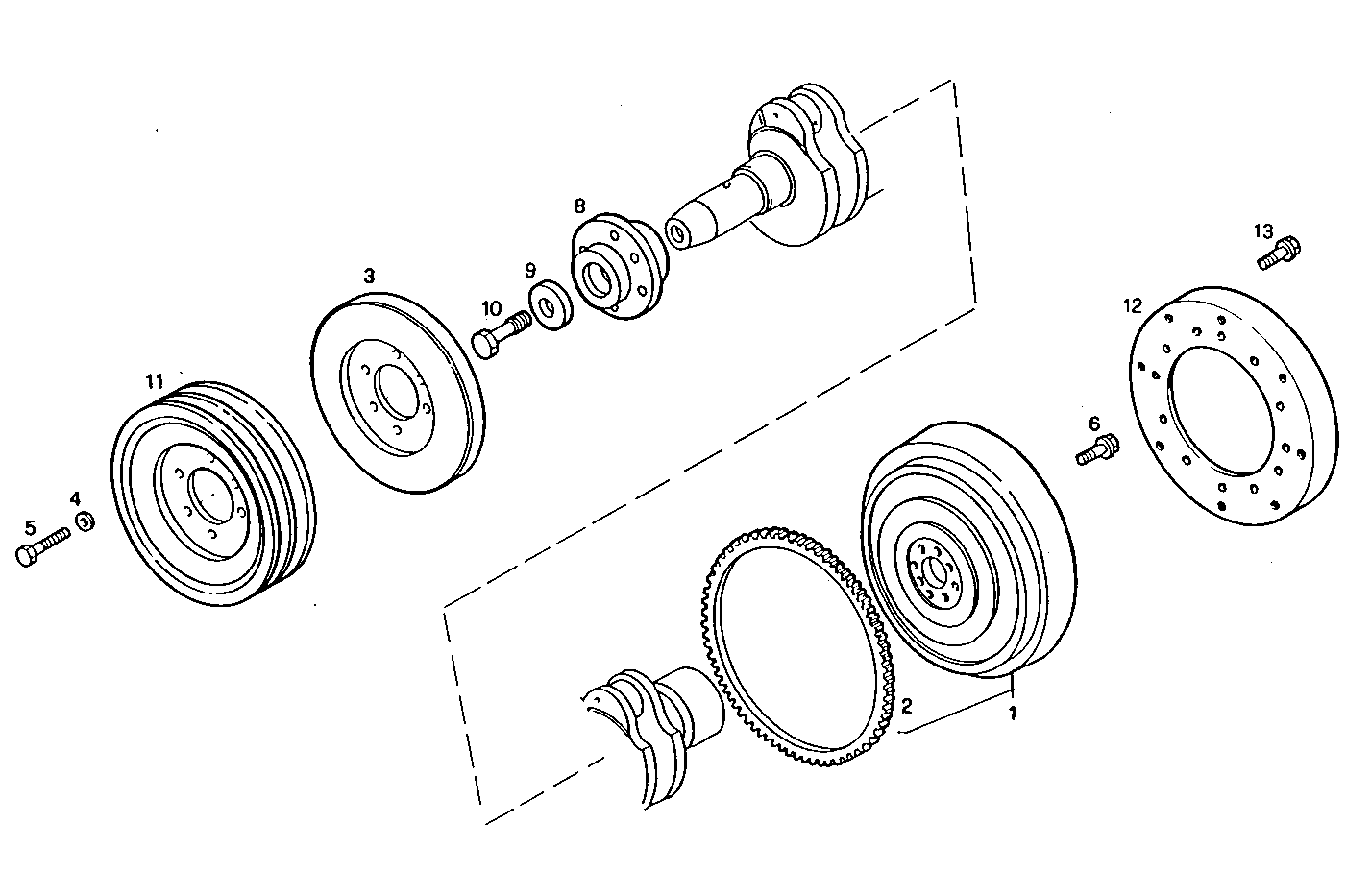

0830.108 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 8014538 | FLYWHEEL ASSY |
| 2 | 4672334 | RING GEAR [up to 08-97] |
| 3 | 61316389 | VIBRATION DAMPER DAMPERS |
| 4 | 17091174 | SPRING WASHER Ø12X24 MM |
| 5 | 15540724 | HEXAGON BOLT M12X1,25X45 MM |
| 6 | 4765554 | SCREW |
| 8 | 61317126 | DAMPER HUB |
| 9 | 61577278 | WASHER |
| 10 | 61317125 | HEXAGON BOLT |
| 11 | 61317357 | CRANKSHAFT PULLEY |
| 12 | 8105258 | FLANGE |
| 13 | 14274721 | LOCKING SCREW M12X1,25X40 MM |
