8460SRi11.00A004

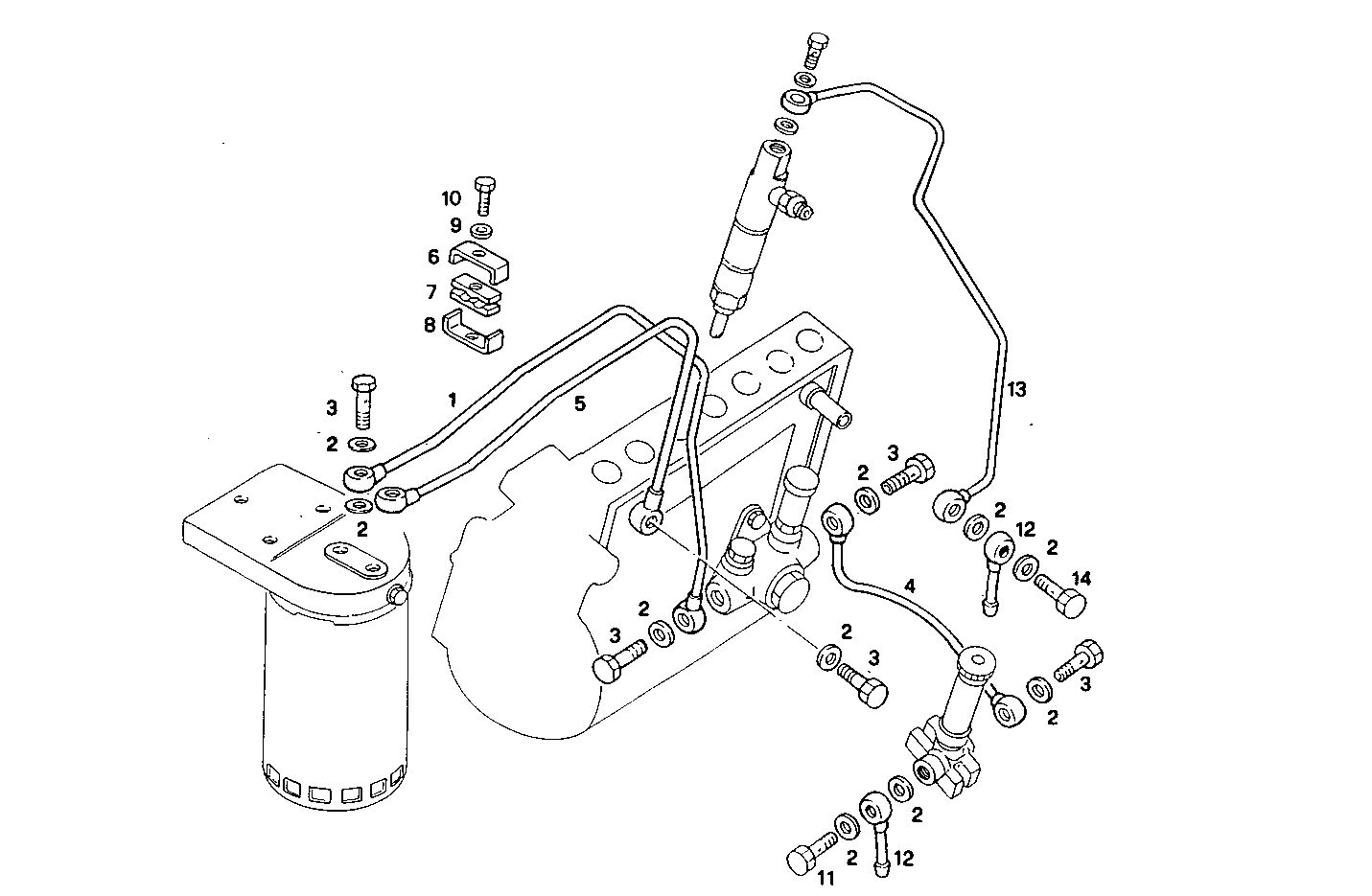

2030.075 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8013920 | FUEL LINE |
| 2 | 98474308 | SEAL GASKET Ø14X22 MM |
| 3 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 4 | 8018278 | FUEL LINE |
| 5 | 8013921 | FUEL LINE |
| 6 | 4644288 | CLIP |
| 7 | 4871771 | RUBBER LUG |
| 8 | 4644289 | CLIP |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 16603824 | SCREW M6X25 |
| 11 | 16500214 | THREADED UNION M14X1,5/M16X1,5 |
| 12 | 98404882 | PIPE SOCKET Ø8 MM |
| 13 | 8020337 | FUEL LINE |
| 14 | 61608319 | SCREW CONNECTOR |
