8460SRM28.12

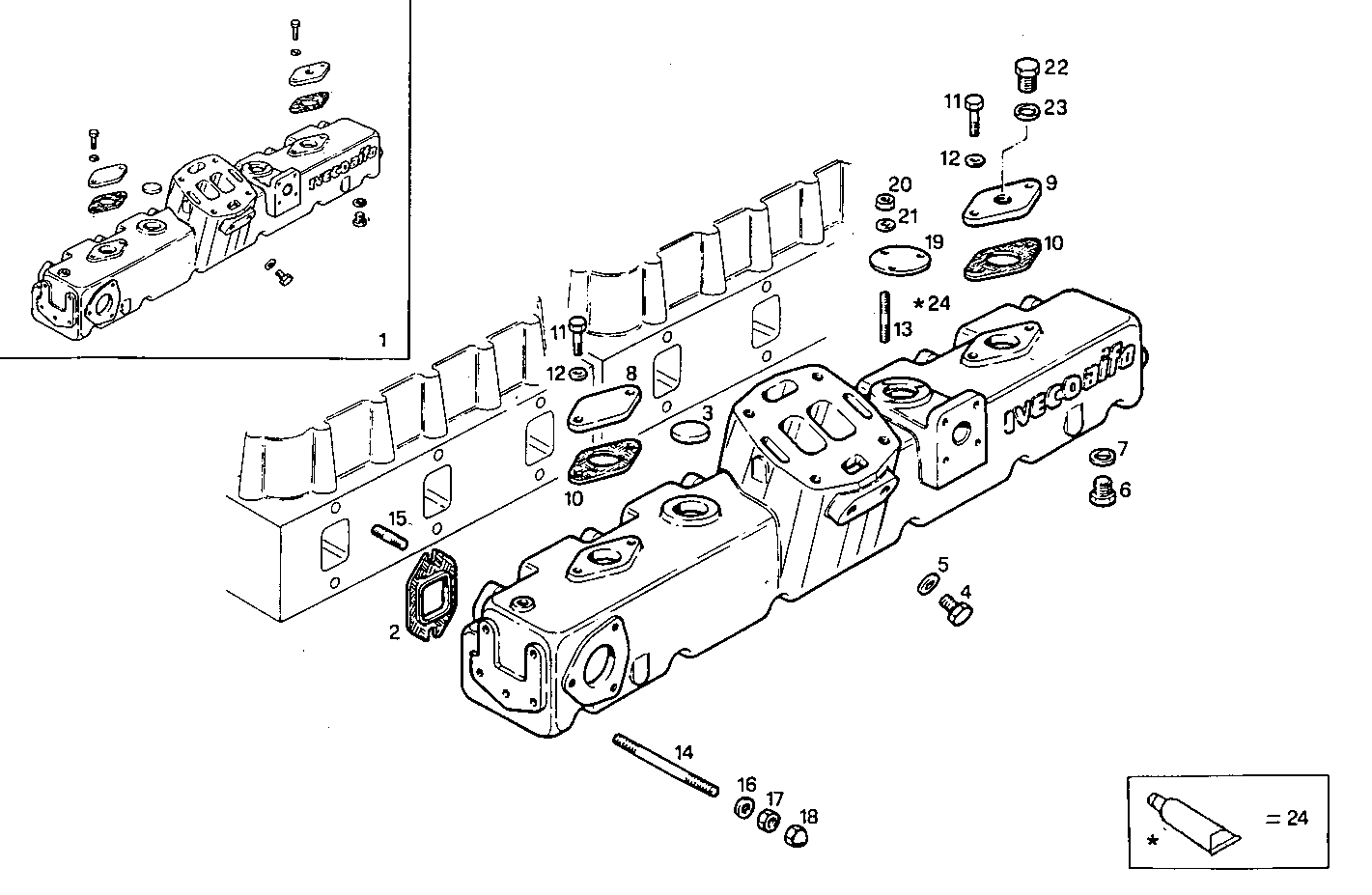

0760.084 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8005002 EXHAUST MANIFOLD ASSY
2 61319208 EXH. MANIFOLD GKT
3 11991170 PLUG Ø36 MM
4 16992211 THREADED PLUG M12X1,5
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 16992440 THREADED PLUG M16X1,5
7 4858609 WASHER Ø16X22 MM SP=1,5 MM
8 8006989 COVER
9 8006990 FLANGE
10 8008755 FLAT ENGINE GASKET
11 16605524 HEXAGON BOLT M8X20 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16727624 STUD M6X16 MM
14 13451921 STUD M10X1,25X140
15 13449824 STUD M10X1,25X15 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 17038221 HEXAGON NUT M10
18 16979731 NUT M10X1,25
19 8011111 COVER
20 17037821 HEXAGON NUT M6X1
21 17088474 WASHER Ø6X12 MM
22 16992340 THREADED PLUG M14X1,5
23 4858608 SEAL GASKET dia.14x19,5x1,5
24 1905683 ADHESIVE/STICKER LOCTITE
