8460SRM50.10

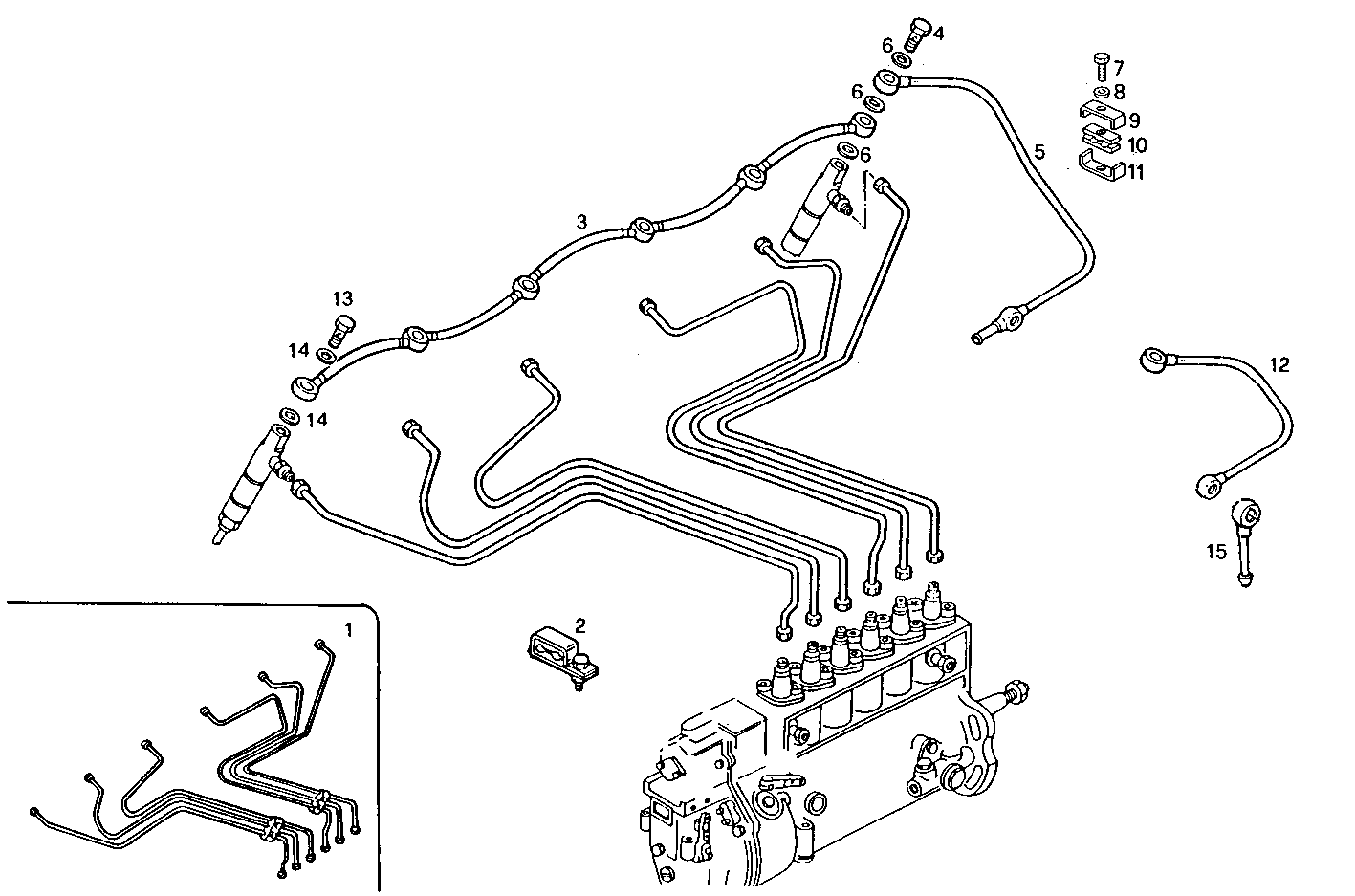

2020.032 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8009618 | INJECTION LINE SET |
| 2 | 8010368 | RETAINER |
| 3 | 61320072 | FUEL LINE |
| 4 | 61316009 | SCREW CONNECTOR |
| 5 | 8017493 | FUEL LINE |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 16602124 | SCREW M5X16 MM |
| 8 | 17094504 | WASHER Ø5,3X10 MM |
| 9 | 4703602 | CLAMP |
| 10 | 4592280 | DOWEL |
| 11 | 4641874 | RETAINER TOP |
| 12 | 8021621 | FUEL LINE |
| 13 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 14 | 98474308 | SEAL GASKET Ø14X22 MM |
| 15 | 8030222 | PIPE SOCKET D [from 01-09-02] |
