8460SRM50.10

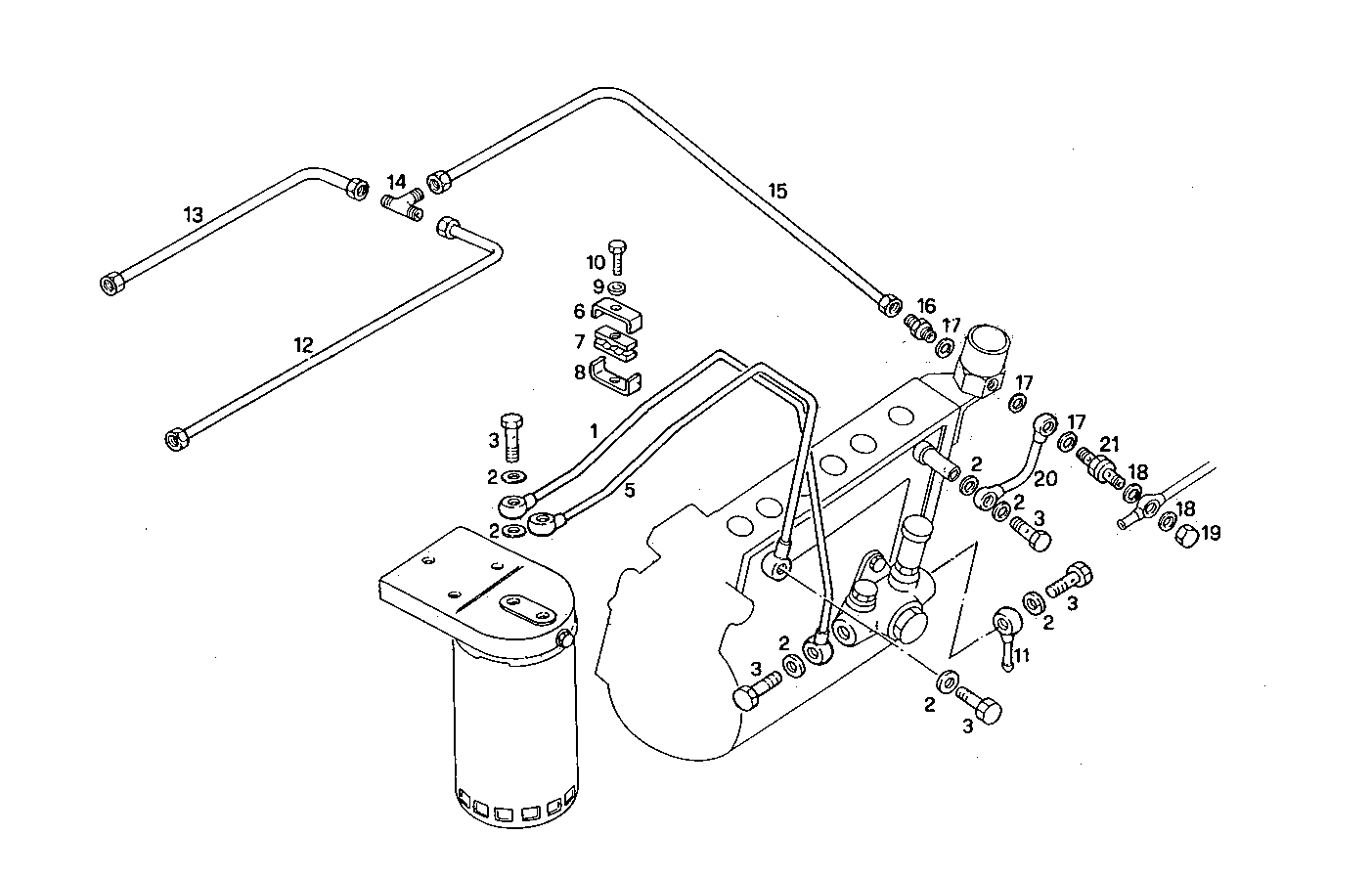

2030.062 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8009125 | FUEL LINE |
| 2 | 98474308 | SEAL GASKET Ø14X22 MM |
| 3 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 5 | 8009126 | FUEL LINE |
| 6 | 4644288 | CLIP |
| 7 | 4871771 | RUBBER LUG |
| 8 | 4644289 | CLIP |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 16603824 | SCREW M6X25 |
| 11 | 98404882 | PIPE SOCKET Ø8 MM |
| 12 | 8017491 | FUEL LINE FRONT |
| 13 | 8017492 | FUEL LINE REAR |
| 14 | 16505011 | T-COUPLING |
| 15 | 8017490 | FUEL LINE |
| 16 | 16500011 | PIPE SOCKET |
| 17 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 18 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 19 | 98469675 | THREADED PLUG M12X1 |
| 20 | 8017849 | FUEL LINE |
| 21 | 98469450 | BYPASS VALVE |
