8460SRM50.10

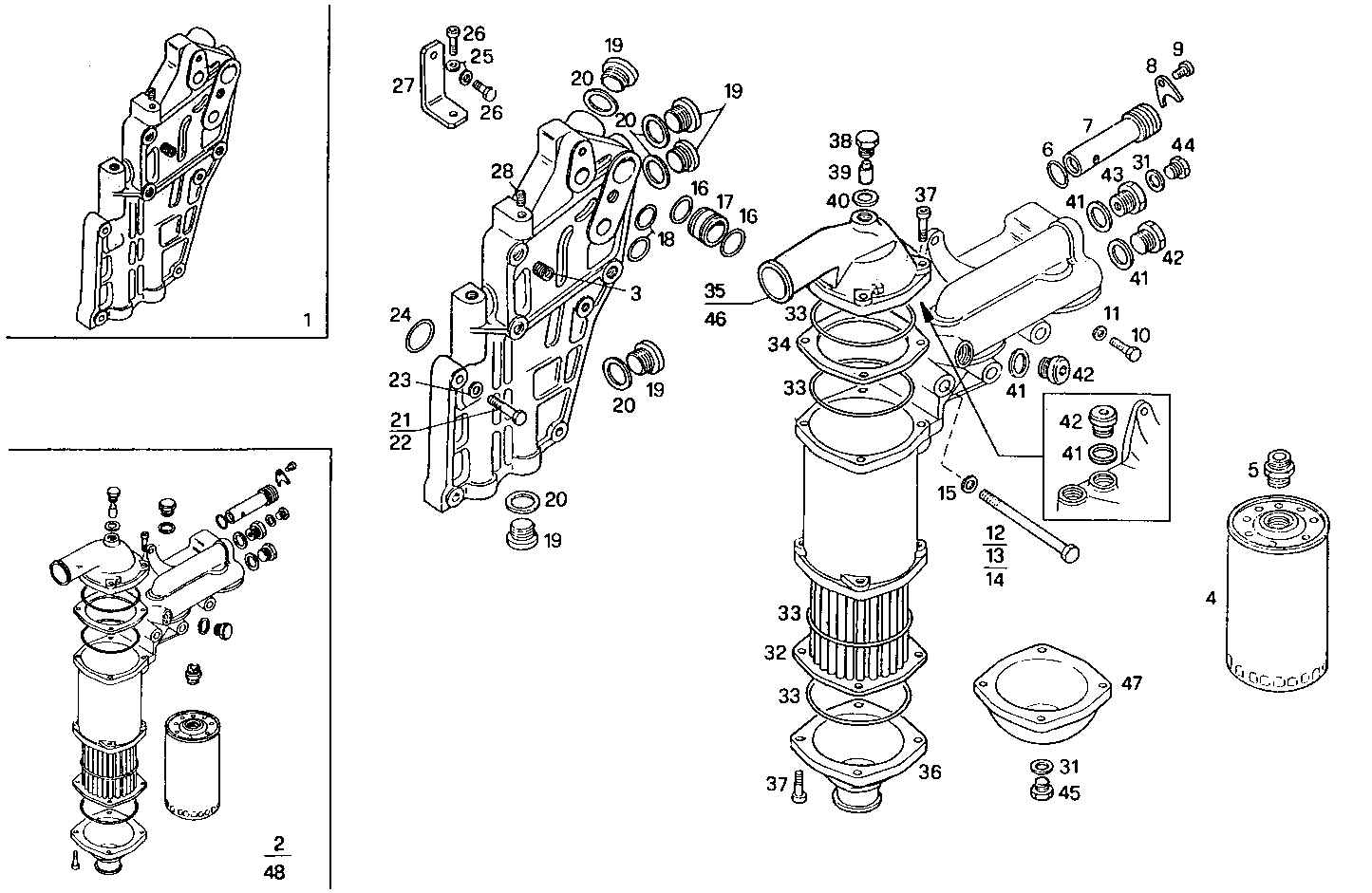

3100.034 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 8017402 SPACING BAR ASSY
2 8017246 OIL/WATER HEAT EXCHANGER ASSY [UP TO 04-95]
3 17873671 THREADED INSERT M12X1,25
4 1907584 OIL FILTER CARTRIDGE
5 4741301 THREADED UNION ASSY
6 17288881 O-RING Ø28,1 MM SP=3,5 MM
7 98435128 VALVE
8 4846397 CONNECTING PLATE
9 16990524 SCREW
10 16605624 HEXAGON BOLT M8X25 MM (8.8)
11 17094914 WASHER 8x16
12 15542121 HEXAGON BOLT M12X1,25X150
13 15541721 HEXAGON BOLT M12X1,25X110 MM
14 15541221 HEXAGON BOLT M12X1,25X70 MM [up to 565948]
15 17095304 WASHER Ø12X24 MM
16 17278981 O-RING Ø25,12 MM SP=1,78 MM
17 4853307 CENTERING BUSH
18 17282581 O-RING Ø28,24 MM SP=2,62 MM
19 16993511 LOCK PLUG M28X1,5
20 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
21 11343821 HEXAGON BOLT M10X1,25X50 MM
22 11234721 HEXAGON BOLT M10X1,25X45 MM
23 17095104 WASHER Ø10X21X2 MM
24 17289281 O-RING Ø34,5 MM SP=3,53 MM
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
26 16605524 HEXAGON BOLT M8X20 MM
27 8017335 RETAINER
28 17873271 THREADED INSERT M8
31 4858608 SEAL GASKET dia.14x19,5x1,5
32 8017399 TUBE STACK
33 99431653 O-RING Ø106,2 MM SP=3,53
34 8017862 SPACING BAR
35 8017243 COVER [up to 04-95]
36 8017244 COVER [up to 04-95]
37 16690724 CYLIND-HEAD SCREW M8X30 MM
38 4917793 PLUG M18
39 8105277 SACRIFICAL ANODE Ø14 MM
40 4858610 WASHER Ø18X24 MM SP=1,5 MM
41 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
42 16994040 PLUG M24X1,5
43 8005151 PIPE SOCKET M24X1,5/M16X1,5
44 16992340 THREADED PLUG M14X1,5
45 10263460 WASHER Ø22X28X1,5 MM
46 8020029 COVER [from 04-95]
47 8017606 HEAT EXCHANG.COVER
48 8020092 OIL/WATER HEAT EXCHANGER ASSY [from 04-95]
