8460SRM50.10

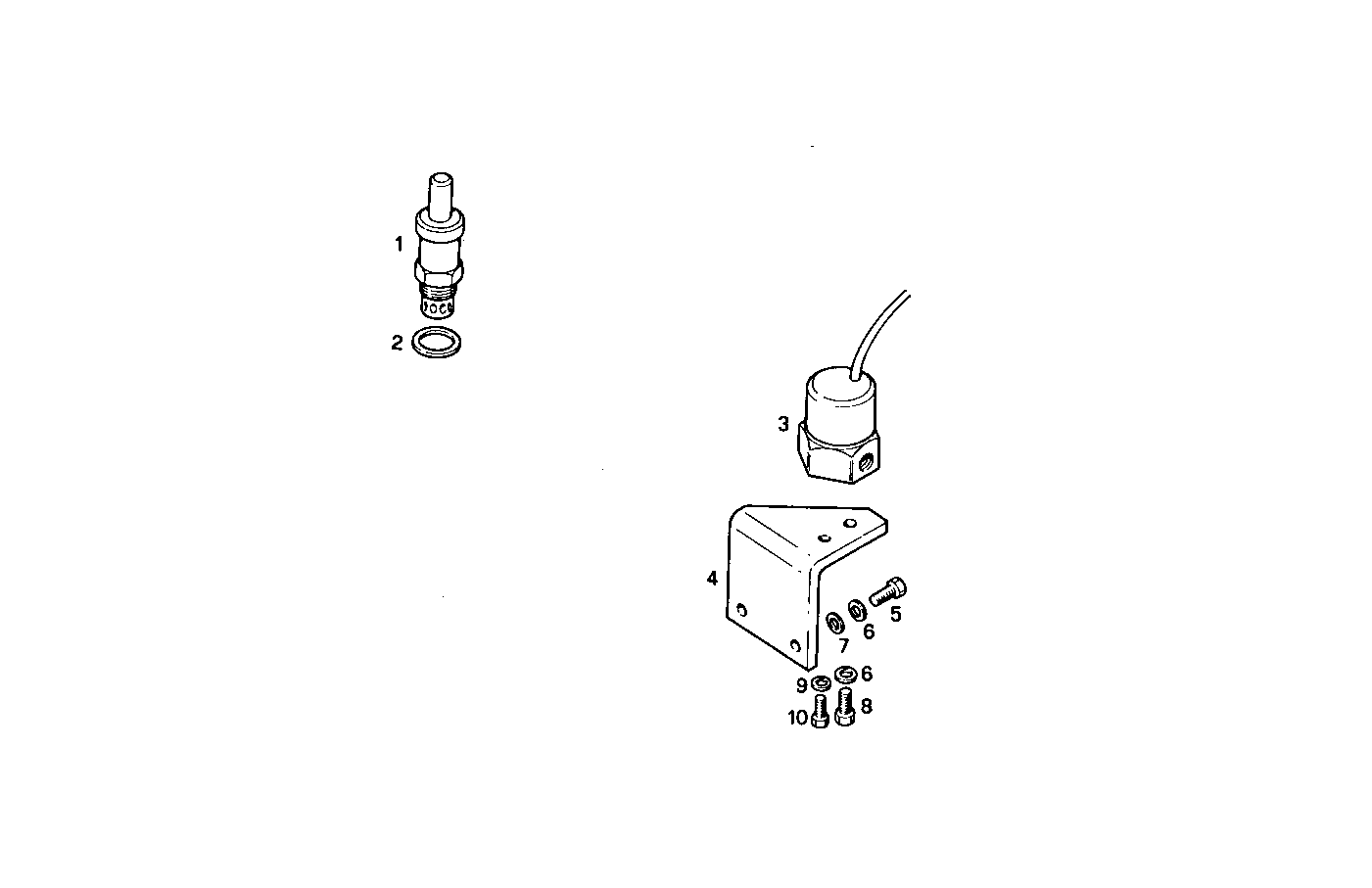

3650.003 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 4846612 | THERMO-STARTER BERU 23V |
| 2 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 3 | 98494898 | ELECT.V.VE.PREHEAT |
| 4 | 8017494 | SUPPORT |
| 5 | 16603524 | SCREW M6X12 MM (8.8) |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 17094714 | WASHER Ø6,4X12 MM |
| 8 | 16603424 | SCREW M6X10 |
| 9 | 17094504 | WASHER Ø5,3X10 MM |
| 10 | 16601924 | HEXAGON BOLT M5X10 MM |
