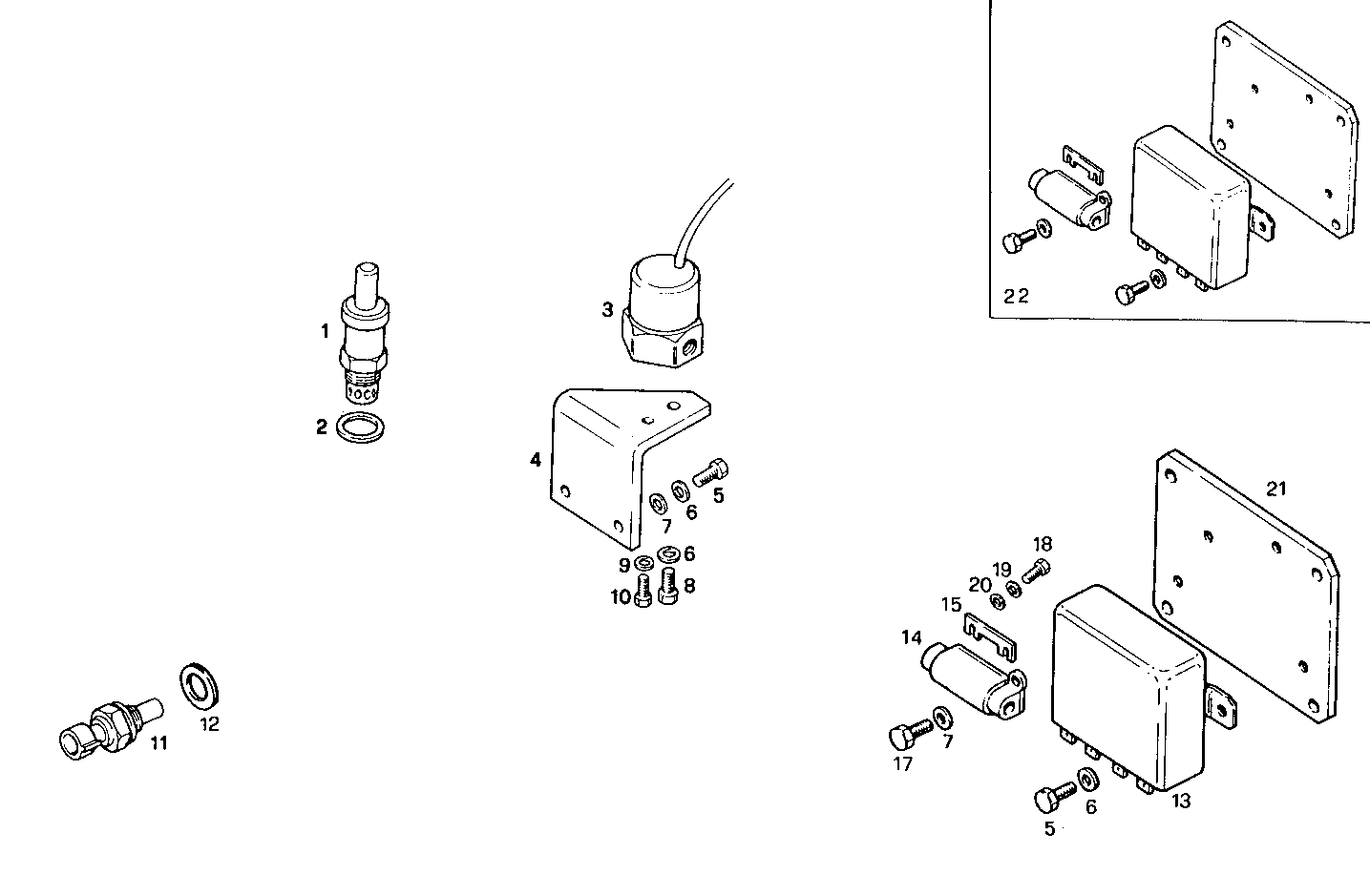

| Item |
Part number |
Description |
|
1 |
99450392 |
THERMO-STARTER |
|
2 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
3 |
98494898 |
ELECT.V.VE.PREHEAT |
|
4 |
8017494 |
SUPPORT |
|
5 |
16603524 |
SCREW M6X12 MM (8.8) |
|
6 |
17088474 |
WASHER Ø6X12 MM |
|
7 |
17097404 |
WASHER Ø14X24X2,5 MM |
|
8 |
16603424 |
SCREW M6X10 |
|
9 |
17094504 |
WASHER Ø5,3X10 MM |
|
10 |
16601924 |
HEXAGON BOLT M5X10 MM |
|
11 |
4857250 |
TRANSMITTER |
|
12 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
13 |
98435374 |
ELECTR.CONTR.UNIT 24V PREHEATER CONTROL |
|
14 |
98433973 |
FUSE BOX |
|
15 |
98436476 |
FUSE |
|
16 |
11181479 |
WASHER Ø4X9X0,7 MM |
|
17 |
10444721 |
HEXAGON BOLT M4 |
|
18 |
17131814 |
SCREW M5X10 |
|
19 |
16665304 |
WASHER Ø5X10X1 MM |
|
20 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
|
21 |
8017236 |
PLATE |
|
22 |
8017450 |
ELECTR.CONTR.UNIT ASSY |
