8460SRM50.10

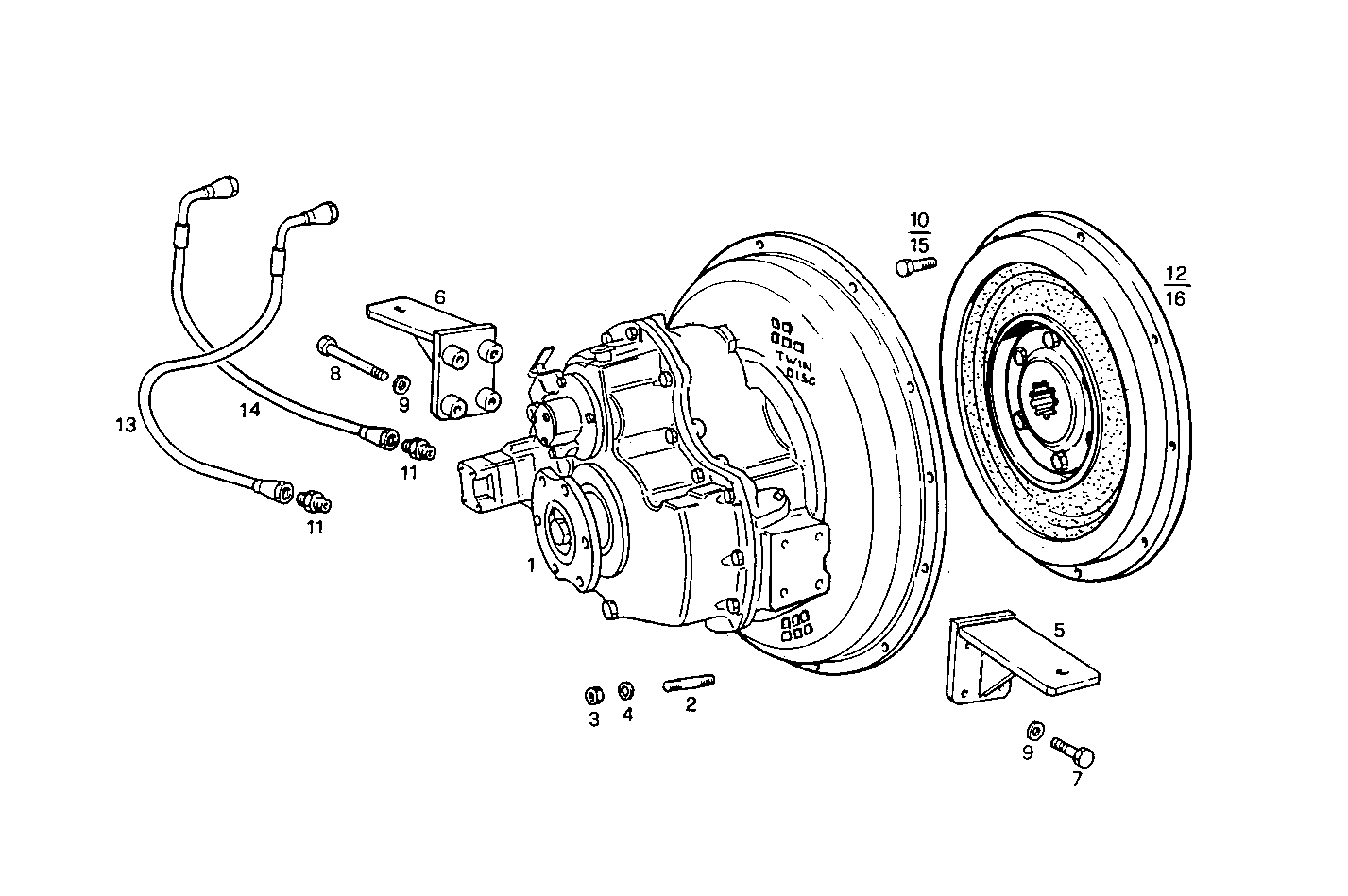

A51080001 MARINE GEAR TWIN DISC MG 5081 A - ratio 1.97:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8023610 | MARINE GEAR 1.97:1 |
| 2 | 13453721 | STUD M10X25X30 |
| 3 | 17038221 | HEXAGON NUT M10 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 8010916 | SUPPORT RIGHT |
| 6 | 8010917 | SUPPORT LEFT |
| 7 | 11127521 | SCREW M16X35 |
| 8 | 15219921 | SCREW M16X70 |
| 9 | 17092171 | WASHER Ø16X32X3,4 MM |
| 10 | 14274621 | LOCKING SCREW M12X1,25X35 |
| 11 | 4935465 | PIPE SOCKET |
| 12 | 8017567 | FLEXIBLE COUPLING [up to 05-97] |
| 13 | 8100965 | OIL HOSE |
| 14 | 4935779 | HOSE |
| 15 | 14274421 | LOCKING SCREW M8X60 MM |
| 16 | 8023601 | FLEXIBLE COUPLING [from 05-97] |
