Catalogue Menu

8460SRM50.10

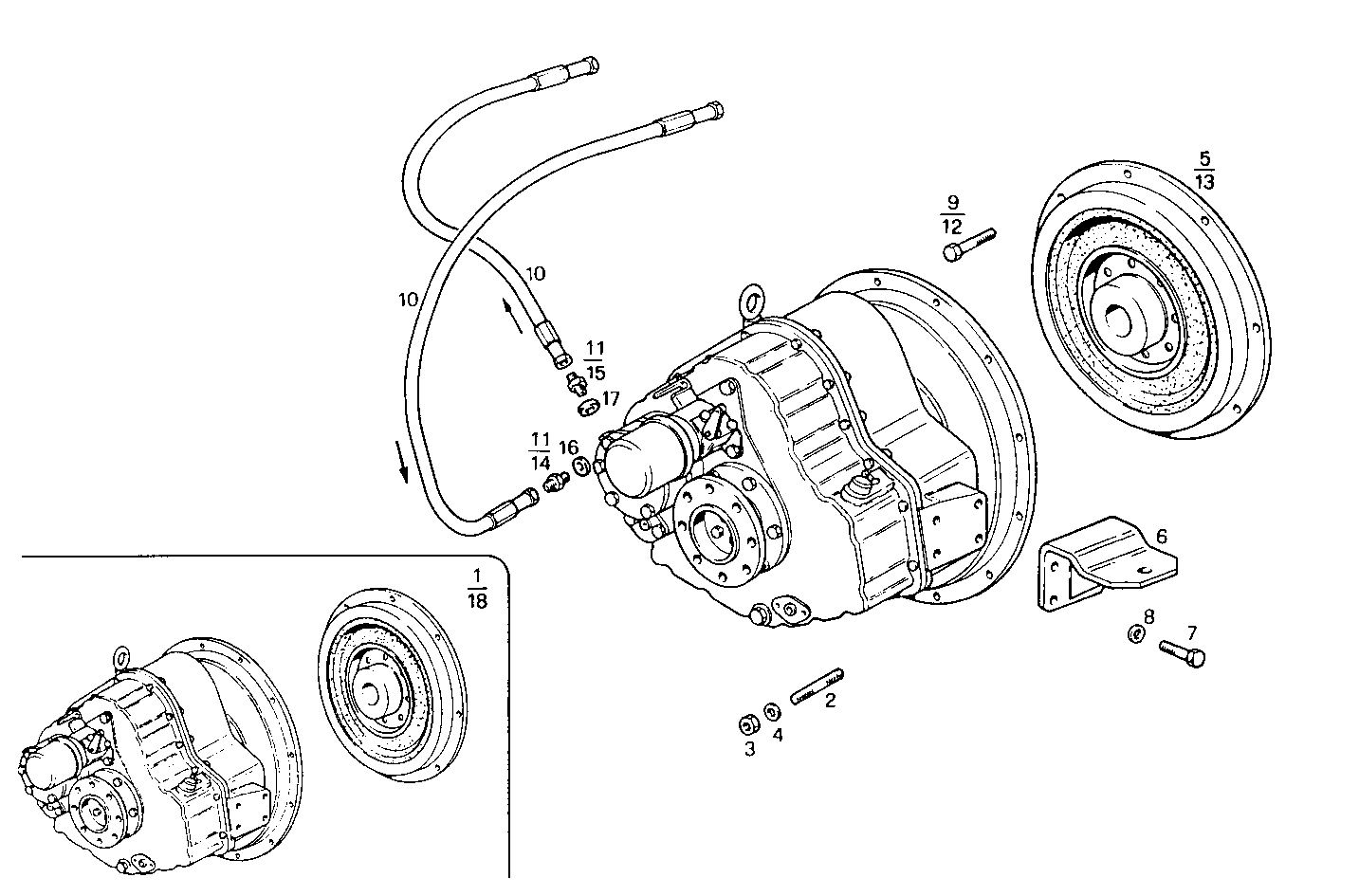

A51880007 MARINE GEAR ZF-MPM IRM 310 A - ratio 1.972:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 310 A

Item Part number Description
1 8023062 MARINE GEAR 1.97:1 [up to 06-98]
2 13543721 STUD M8X16X35 MM
3 12164711 HEXAGON NUT M10X1,25
4 17090174 SPRING WASHER Ø10X20 MM
5 8008391 FLEXIBLE COUPLING [up to 05-97]
6 8009657 SUPPORT
7 4932875 SCREW M16X2X45
8 17092171 WASHER Ø16X32X3,4 MM
9 15540621 HEXAGON BOLT M12X40 MM
10 8105619 HOSE
11 8021737 PIPE SOCKET [up to 05-97]
12 14274421 LOCKING SCREW M8X60 MM
13 8023060 FLEXIBLE COUPLING
14 8100897 PIPE SOCKET 1/2"/M16X1,5
15 8023701 PIPE SOCKET
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 11270460 GASKET Ø17X21X1,5 MM
18 8026411 MARINE GEAR 1.97:1 [from 06-98]
