8460SRM50.10

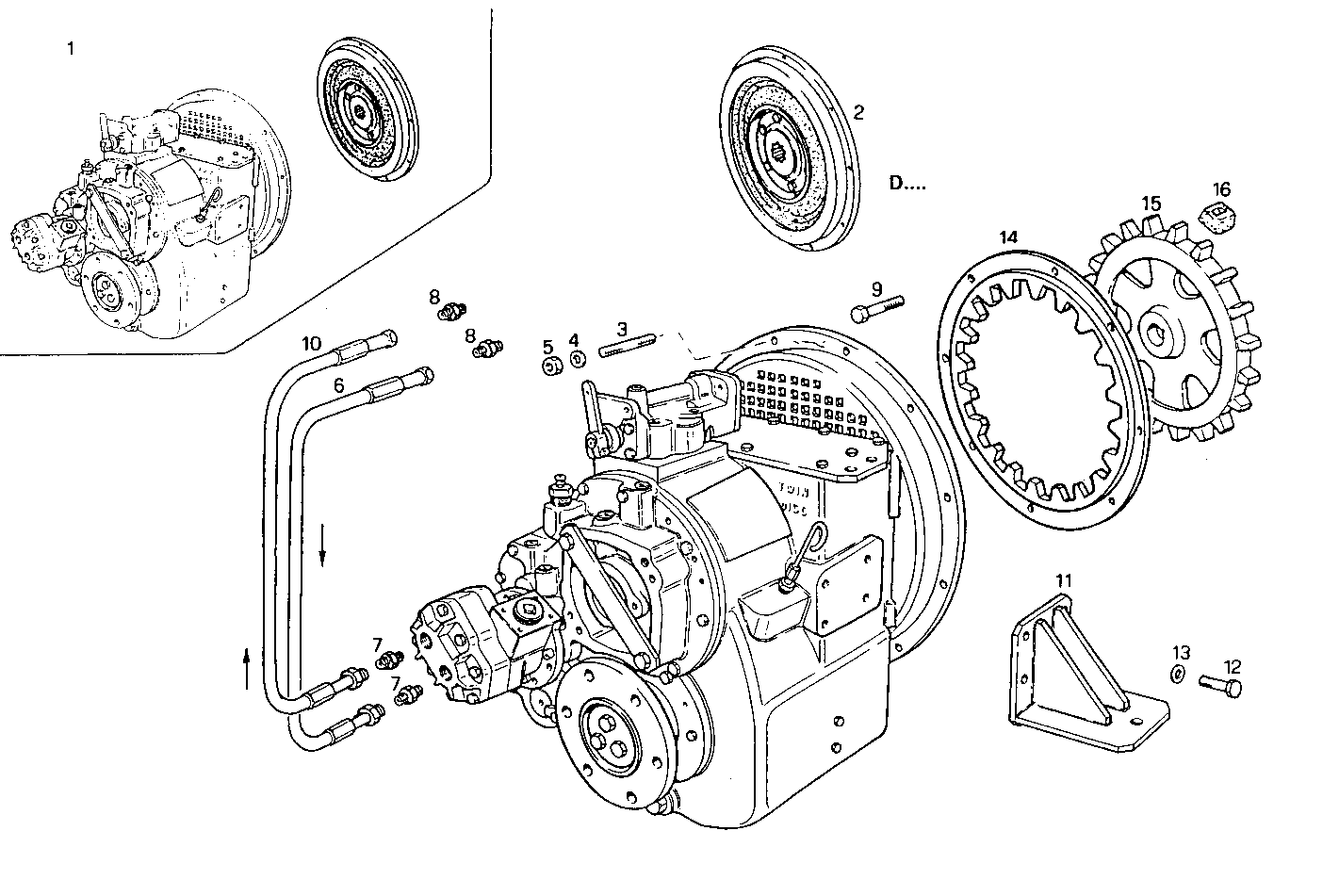

A51960013 MARINE GEAR TWIN DISC MG 5091 - ratio 2.950:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8023600 | MARINE GEAR 2,04:1 |
| 2 | 8023601 | FLEXIBLE COUPLING [from 05-97] |
| 3 | 13453721 | STUD M10X25X30 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 8006875 | HOSE |
| 7 | 8113794 | PIPE SOCKET |
| 8 | 8017553 | PIPE SOCKET [up to 05-98] |
| 9 | 14274421 | LOCKING SCREW M8X60 MM |
| 10 | 8005840 | HOSE |
| 11 | 4928852 | SUPPORT |
| 12 | 4933197 | SCREW |
| 13 | 11200179 | SPRING WASHER Ø14X32 MM |
| 14 | 8007788 | FLANGE [up to 05-97] |
| 15 | 8007787 | FLANGE [up to 05-97] |
| 16 | 4932462 | DOWEL |
