8460SRM50.10A002

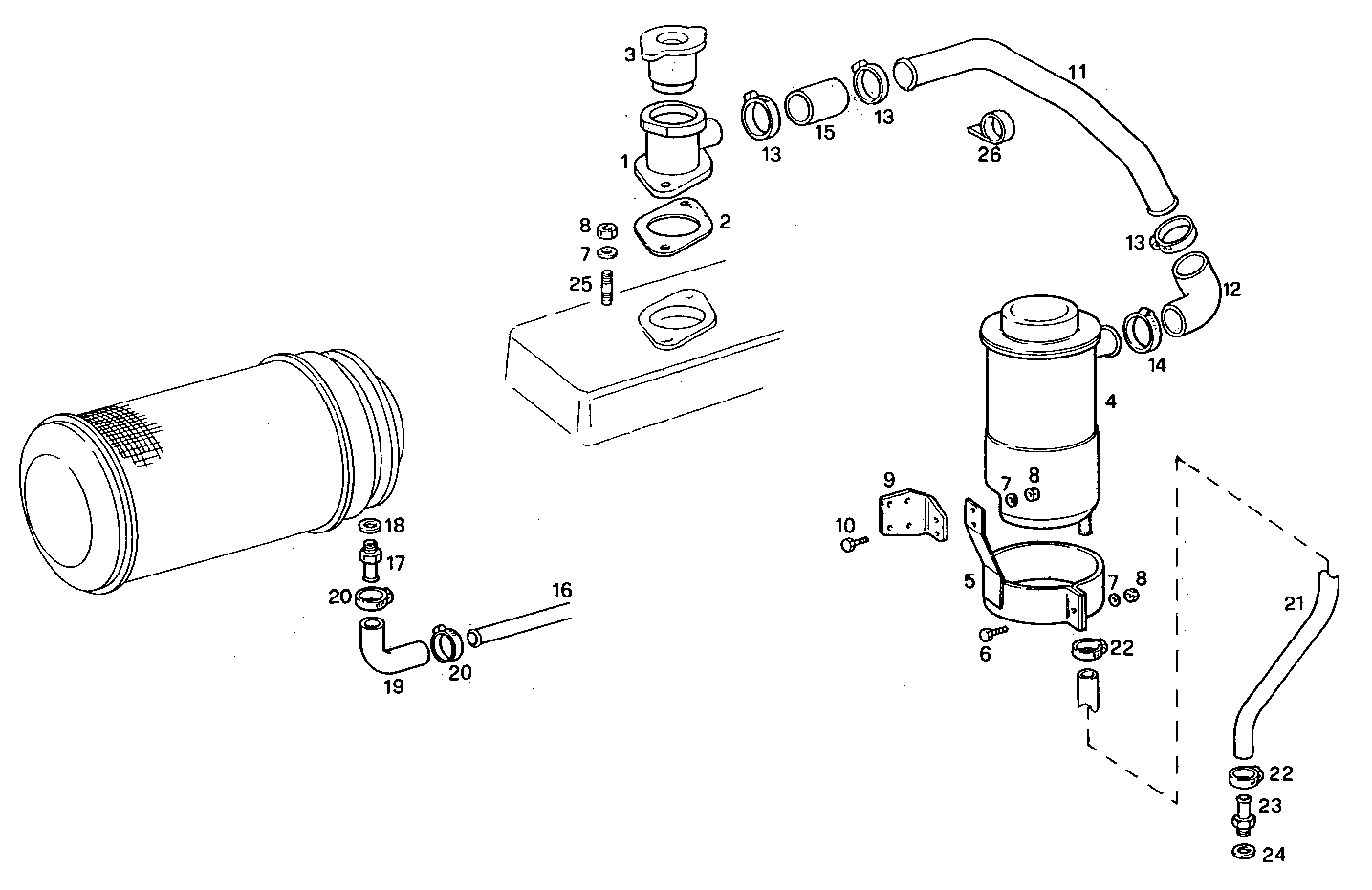

0450.076 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 8017323 BREATHER
2 8009901 GASKET
3 8823136 LOCK PLUG
4 4858569 BREATHER
5 4860370 SUPPORT [up to 03-97]
6 16605734 HEXAGON BOLT M8X30 MM
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17037931 HEXAGON NUT M8X1,25
9 8017325 SUPPORT
10 16605524 HEXAGON BOLT M8X20 MM
11 8017326 BREATHER PIPE
12 8015523 RUBBER SLEEVE Ø30 - Ø25 MM
13 17764693 CLIP Ø25/40 MM
14 17764793 CLIP Ø32/50 MM
15 8105610 RUBBER SLEEVE
16 8017327 BREATHER PIPE
17 8014175 PIPE SOCKET [up to 03-97]
18 4858607 WASHER Ø12X17 MM SP=1,5 MM
19 8013466 WATER HOSE [up to 03-97]
20 17764593 CLIP Ø20/32 MM
21 8019135 OIL HOSE
22 18088392 CLIP Ø16/25 MM
23 8017328 PIPE SOCKET
24 4858610 WASHER Ø18X24 MM SP=1,5 MM
25 16746724 STUD M8X25 MM
26 4760226 FASTENING BRACKET
