8460SRM50.10A002

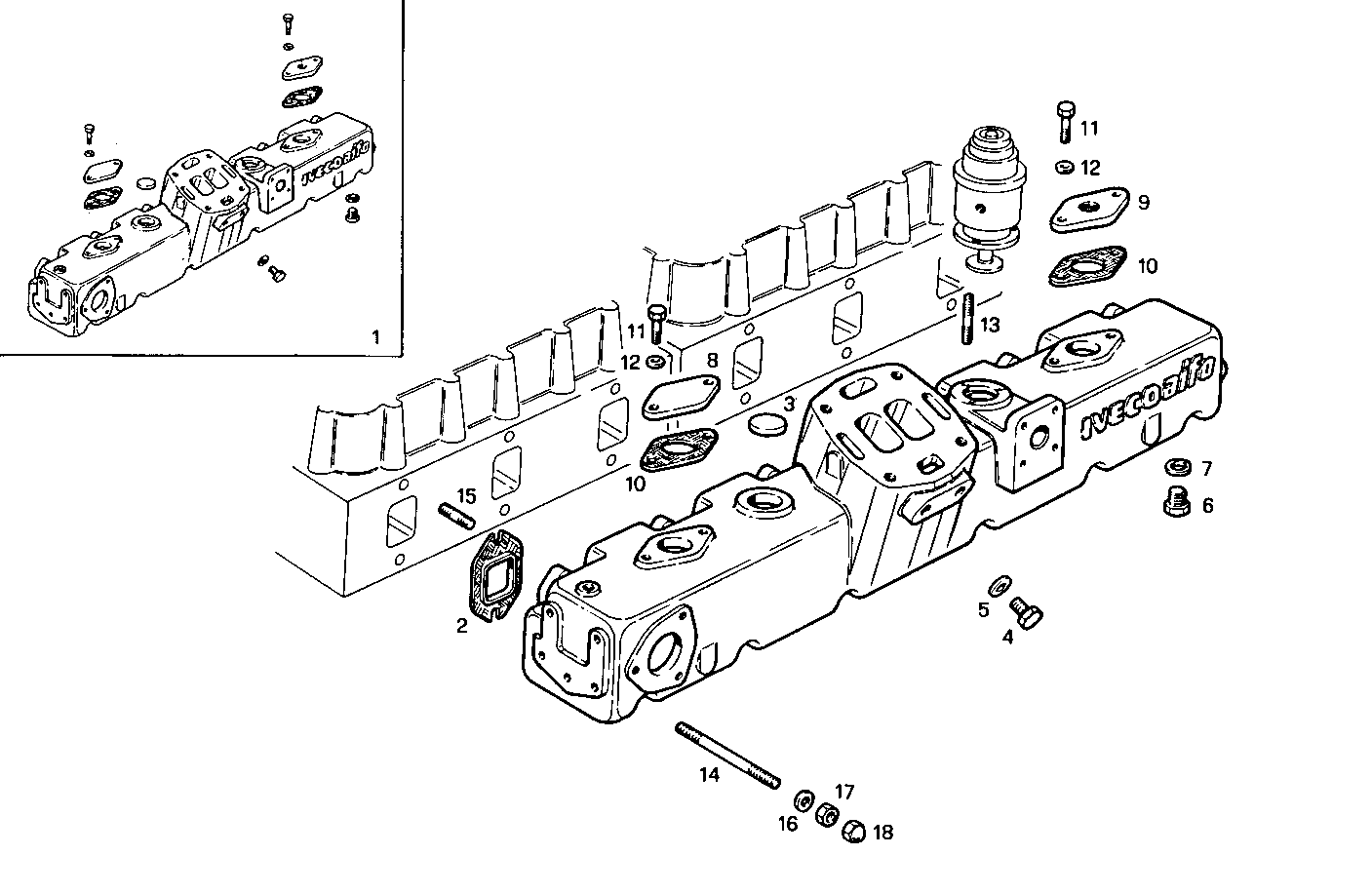

0760.041 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8005002 EXHAUST MANIFOLD ASSY
2 61319208 EXH. MANIFOLD GKT
3 11991170 PLUG Ø36 MM
4 16992211 THREADED PLUG M12X1,5
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 16992440 THREADED PLUG M16X1,5
7 4858609 WASHER Ø16X22 MM SP=1,5 MM
8 8006989 COVER
9 8006990 FLANGE
10 8008755 FLAT ENGINE GASKET
11 16605524 HEXAGON BOLT M8X20 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16727624 STUD M6X16 MM
14 13451921 STUD M10X1,25X140
15 13449821 STUD M10X1,25X15 MM
16 17090274 WASHER Ø10X20 MM
17 17038221 HEXAGON NUT M10
18 10791011 HEXAGON NUT M10X1,25
