8460SRM50.10A002

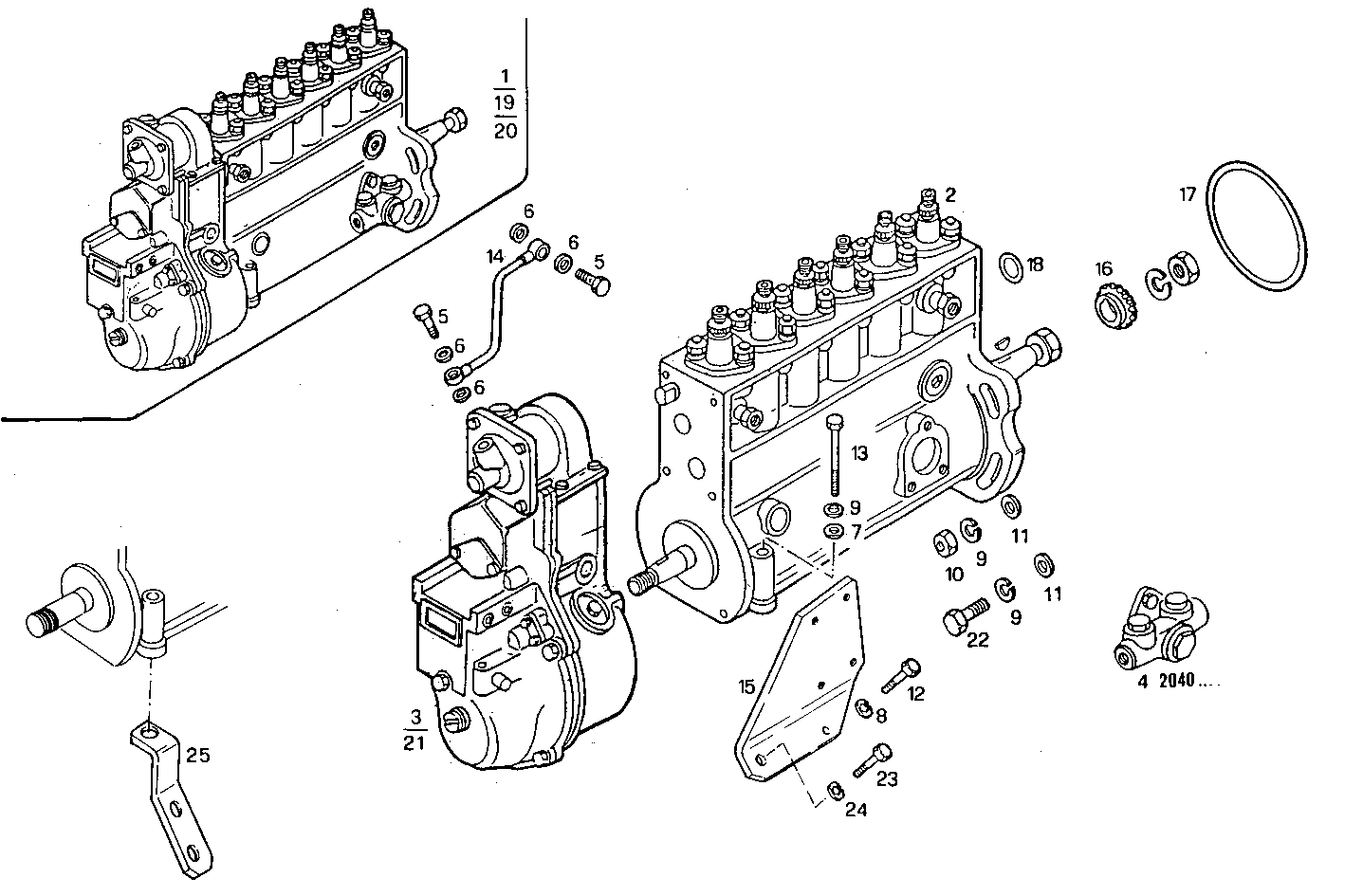

1400.114 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8012728 INLINE INJECT.PUMP ASSY [up to 02-98]
4 8092637 FUEL PUMP OPT.
5 4864082 BANJO BOLT M12X1,5X25 MM
6 98474306 WASHER Ø12X20 MM SP=1,9 MM
7 17095114 WASHER Ø10X21 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 17090174 SPRING WASHER Ø10X20 MM
10 17038221 HEXAGON NUT M10
11 61320297 WASHER
12 16043324 HEXAGON BOLT M8X18 MM
13 15971721 SCREW M10X1,25X95
14 8018769 FUEL LINE L=240 MM
15 8021611 SUPPORT [up to 02-98]
16 61319214 INJECT.PUMP BUSH
17 61317062 O-RING
18 61317701 O-RING Ø3,2X10 MM
19 8026122 INLINE INJECT.PUMP ASSY OPT [from 02-98]
20 8026814 INLINE INJECT.PUMP [from 02-98]
21 8026124 INJECTION CONTROL [from 02-98]
22 15970921 HEXAGON BOLT M10X1,25X35 MM
23 15540221 HEXAGON BOLT M12X1,25X20 MM
24 17091074 WASHER Ø12X24X2,8 MM
25 61319215 SUPPORT [from 02-98]
