8460SRM50.10A002

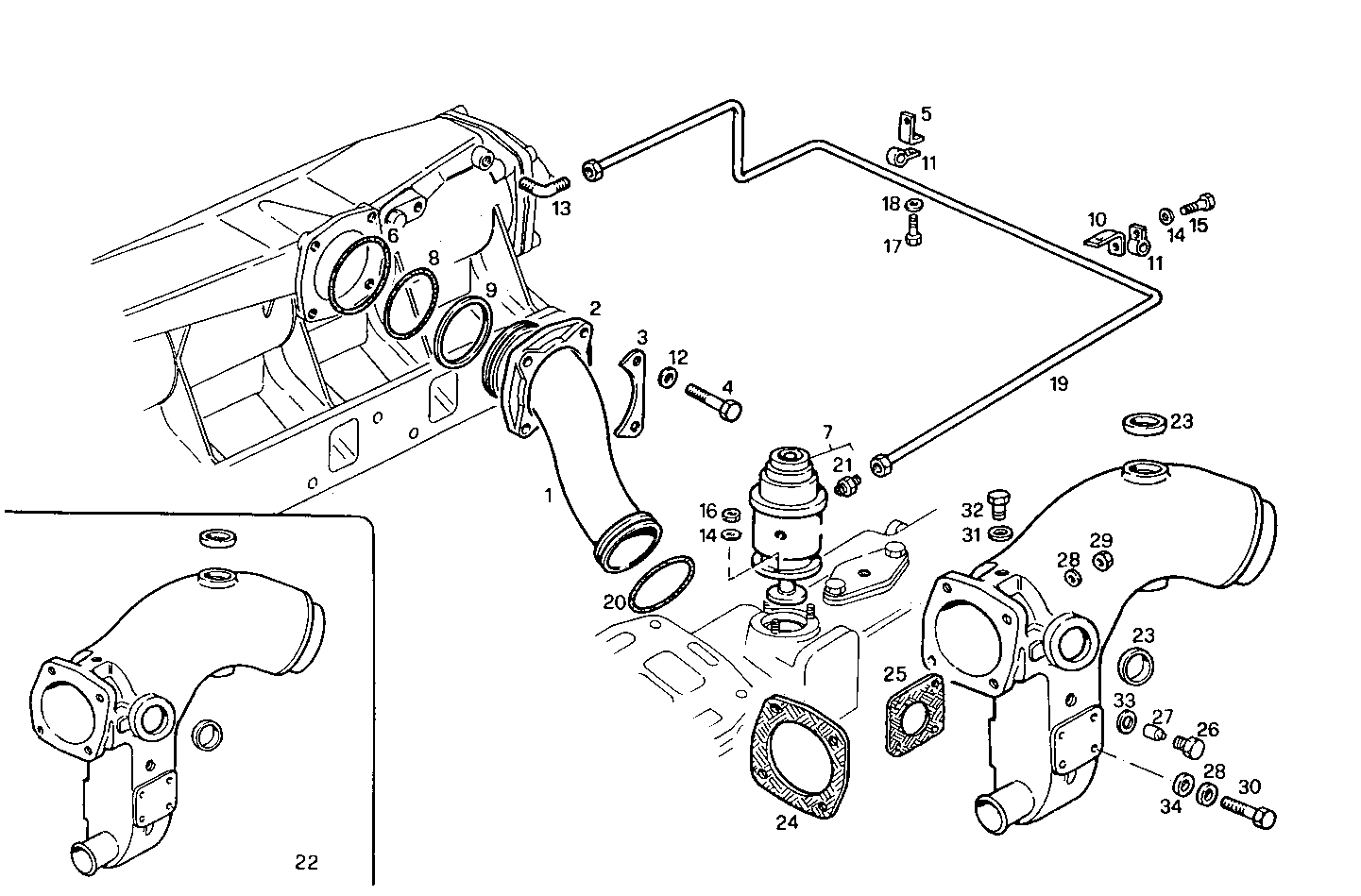

2420.035 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8008974 AIR PIPE/DUCT
2 8105950 FLANGE
3 8105952 PLATE
4 16044021 HEXAGON BOLT M8X1,25X40 MM
5 8110294 RETAINER
6 17291281 O-RING Ø94,84 MM SP=3,53 MM
7 8005484 VALVE ASSY WASTE-GATE
8 17290781 O-RING Ø78,97X3,53 MM
9 8105951 CIRCLIP
10 8102227 RETAINER
11 4656139 FASTENING BRACKET
12 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
13 8007029 PIPE SOCKET
14 17088474 WASHER Ø6X12 MM
15 16603521 SCREW M6X12
16 17037821 HEXAGON NUT M6X1
17 16605421 SCREW M8X16
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 8014370 WATER PIPE
20 14471581 O-RING SP=5,33 MM
21 8012465 PIPE SOCKET
22 8020383 EXHAUST COOL. ELBOW ASSY
23 16991170 LOCK PLUG Ø36 MM
24 8111833 GASKET
25 4833835 GASKET
26 4917793 PLUG M18
27 8105277 SACRIFICAL ANODE Ø14 MM
29 17037931 HEXAGON NUT M8X1,25
30 16045821 HEXAGON BOLT M8X130 MM
31 4858607 WASHER Ø12X17 MM SP=1,5 MM
32 16992240 THREADED PLUG M12X1,5
33 4858610 WASHER Ø18X24 MM SP=1,5 MM
34 17793804 WASHER Ø8X21X1,5 MM
