8460SRM50.10A002

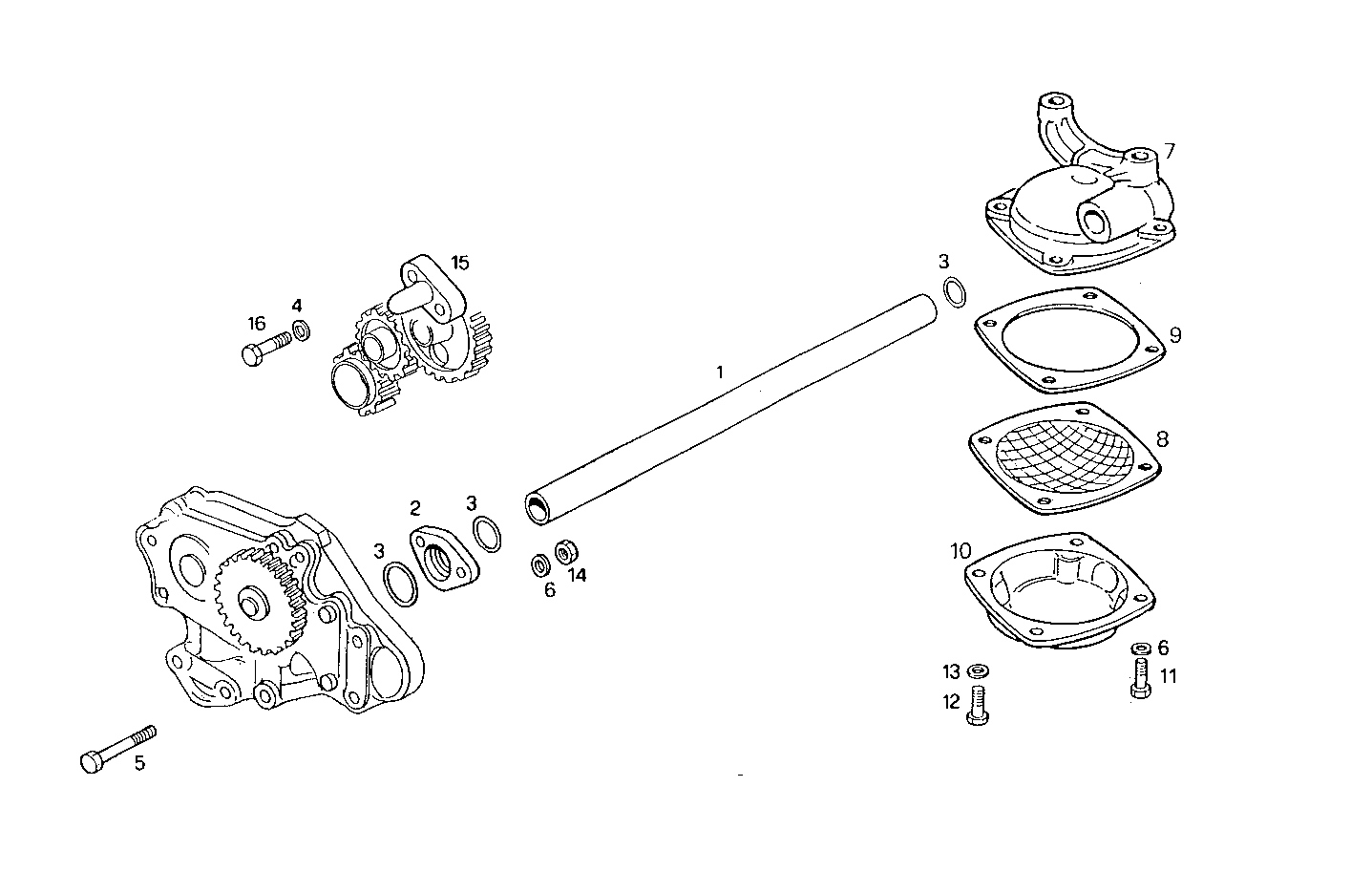

3010.121/01 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 61320868 OIL LINE
2 61317784 FLANGE
3 17288981 O-RING Ø29,74 MM SP=3,53 MM
4 17799374 SPRING WASHER Ø6X12 MM
5 16606424 HEXAGON BOLT M8X65 MM
6 17089574 WASHER Ø8X16 MM
7 61316168 SUCTION STRAINER
8 4673581 FILTER
9 61319056 FLAT ENGINE GASKET
10 61319037 SUCTION STRAINER
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 16603824 SCREW M6X25
13 11194874 SPRING WASHER Ø6X18X1,6 MM
14 17037931 HEXAGON NUT M8X1,25
15 61586093 OIL NOZZLE
16 16603724 HEXAGON BOLT M6X20 MM (8.8)
