8460SRM50.10A002

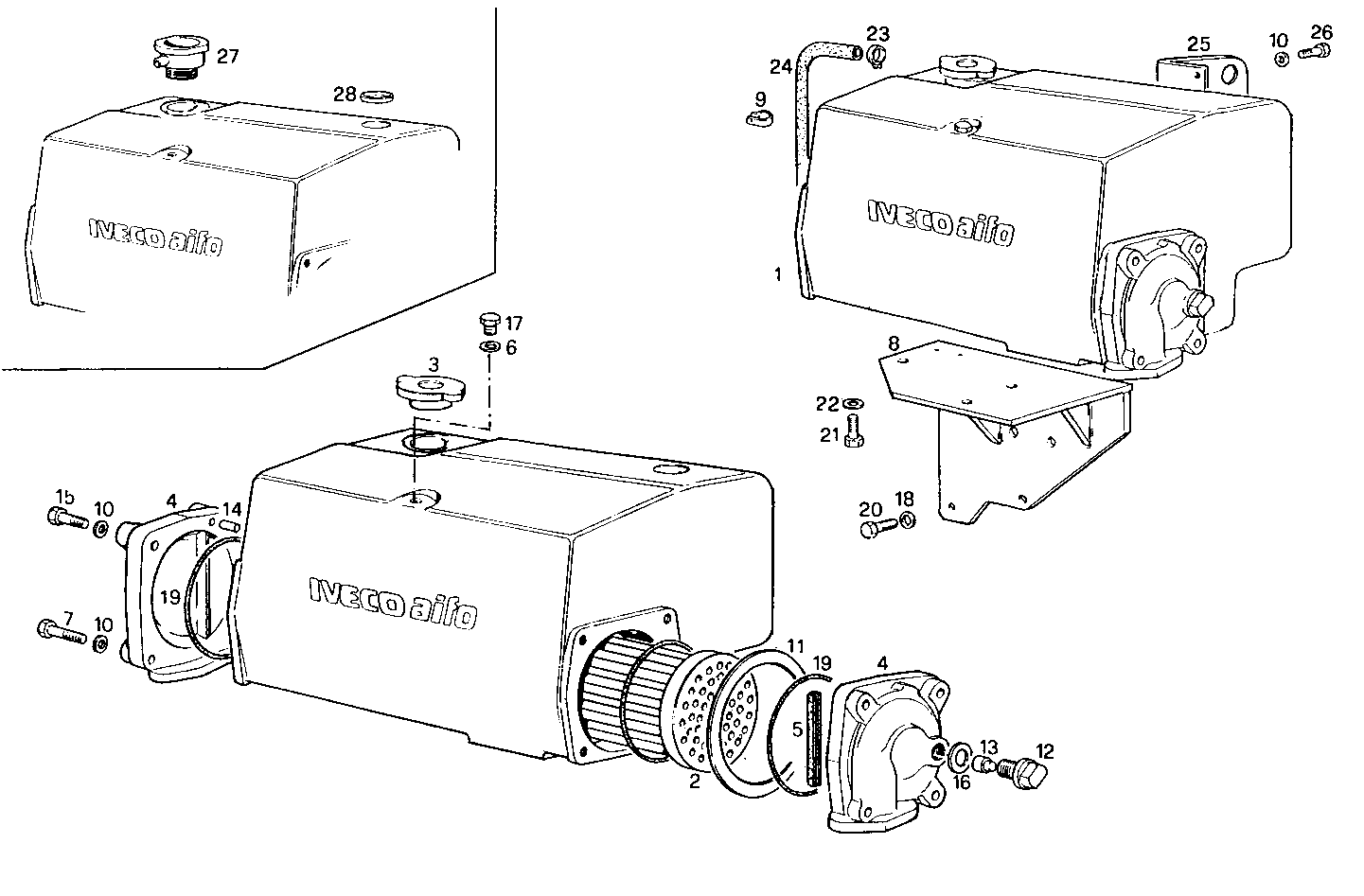

3370.030 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8019188 WATER/SEA WATER HEAT EXCH ASSY
2 8011927 TUBE STACK
3 4927808 PLUG 0,5 BAR
4 8110521 HEAT EXCHANG.COVER
5 8110758 GASKET
6 4858608 SEAL GASKET dia.14x19,5x1,5
7 16606624 HEXAGON BOLT M8X80 MM
8 8112874 SUPPORT
9 17316590 PIPE CLIP Ø12 MM
10 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
11 8110523 SPACING BAR
12 8101771 PLUG M28
13 8101772 SACRIFICAL ANODE Ø20 MM
14 17253370 PIN
15 16605924 SCREW M8X40 MM
16 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
17 16992340 THREADED PLUG M14X1,5
18 17091674 WASHER Ø14X27X3,0 MM
19 17292981 O-RING Ø148,80X3,53 MM
20 17422321 SCREW
21 16610124 HEXAGON BOLT M12X40 MM
22 17091074 WASHER Ø12X24X2,8 MM
23 17764293 CLIP Ø10/16 MM
24 17723081 WATER HOSE Ø7X25 MM
25 8011726 RETAINER
26 16729424 STUD M8X1,25X25
27 4934521 PIPE SOCKET
28 16991370 LOCK PLUG Ø45 MM
