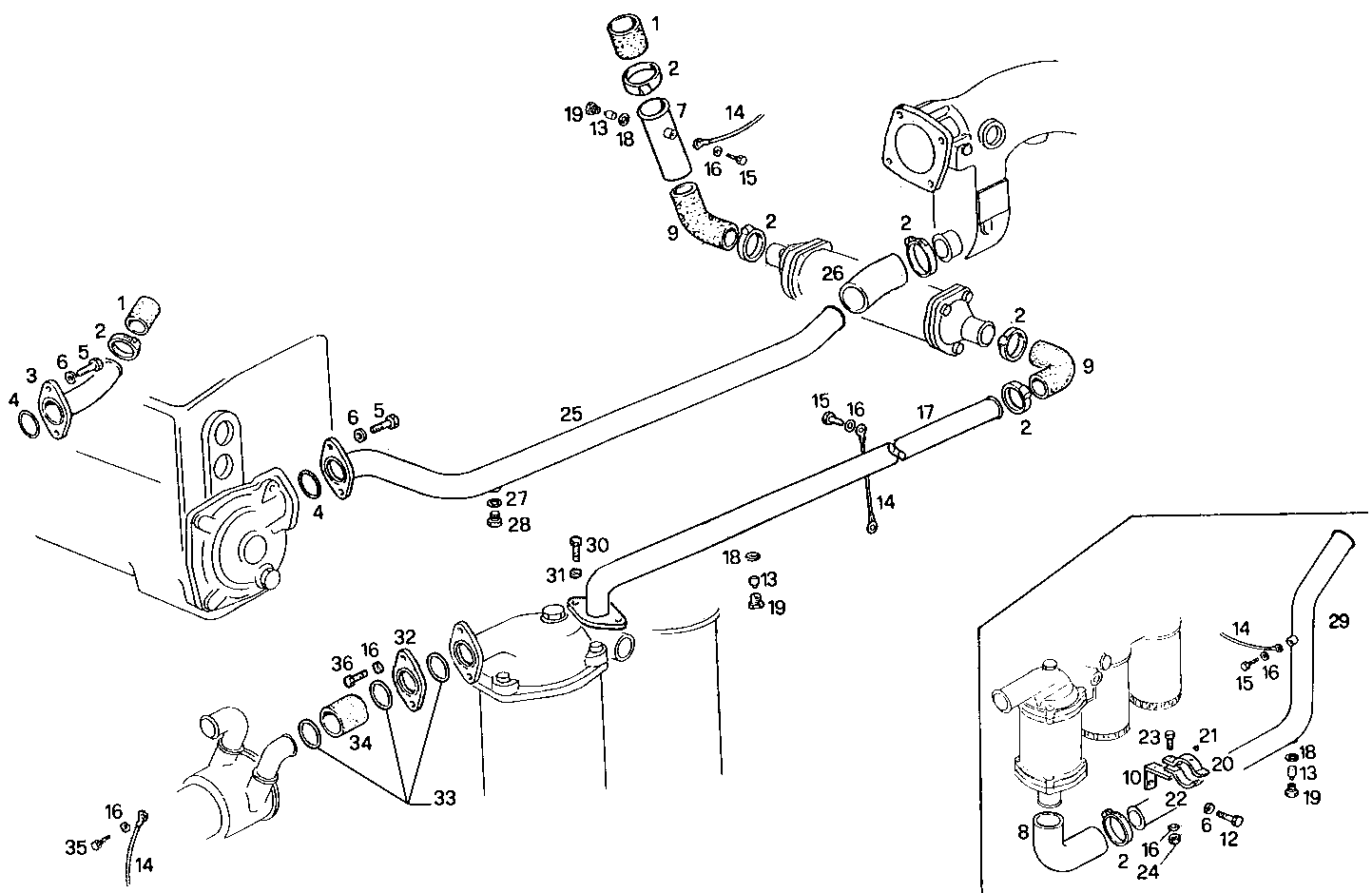

| Item |
Part number |
Description |
|
1 |
4765112 |
RUBBER SLEEVE |
|
2 |
17764993 |
CLIP Ø50/70 MM |
|
3 |
8009636 |
WATER PIPE |
|
4 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
5 |
15540321 |
HEXAGON BOLT M12X1,25X25 MM |
|
6 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
7 |
8017447 |
WATER PIPE |
|
8 |
8009940 |
RUBBER SLEEVE |
|
9 |
8110487 |
WATER HOSE |
|
10 |
8007981 |
RETAINER |
|
12 |
15540221 |
HEXAGON BOLT M12X1,25X20 MM |
|
13 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
|
14 |
8113786 |
ENGINE HARNESS GND |
|
15 |
16043021 |
HEXAGON BOLT M8X12 MM |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
8020051 |
WATER PIPE [from 04-95] |
|
18 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
19 |
4917793 |
PLUG M18 |
|
20 |
8113296 |
CLAMP Ø50 MM |
|
21 |
1366290 |
RUBBER LUG |
|
22 |
8113295 |
CLAMP Ø50 MM |
|
23 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
24 |
17037931 |
HEXAGON NUT M8X1,25 |
|
25 |
8017448 |
WATER PIPE |
|
26 |
8010366 |
WATER HOSE |
|
27 |
4858606 |
GASKET Ø10X14X1 MM |
|
28 |
11903140 |
PLUG M10X1,25 |
|
29 |
8017446 |
WATER PIPE [up to 04-95] |
|
30 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
31 |
17101534 |
SPRING WASHER Ø8 MM |
|
32 |
8020066 |
FLANGE |
|
33 |
17289881 |
O-RING Ø50,3 MM SP=3,5 MM |
|
34 |
8112496 |
CONNECTION L=90 MM |
|
35 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
36 |
16606024 |
SCREW M8X45 MM |
