8460SRM50.10A002

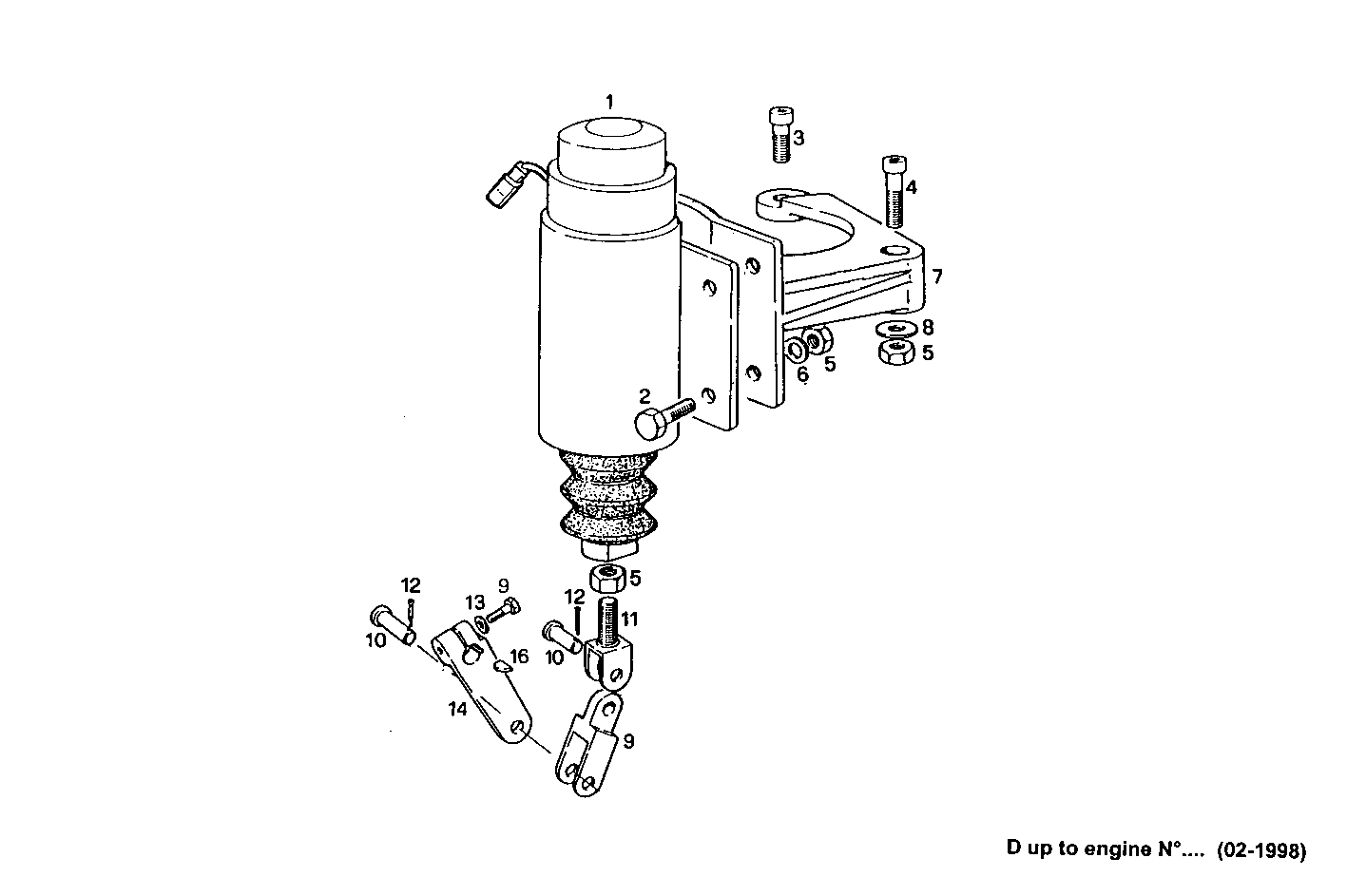

5650.030/02 ELECTRIC STOP ENGINE

Iveco/FPT ELECTRIC STOP ENGINE

Item Part number Description
1 8017206 SOLENOID 24V [from 06-95]
2 16603624 HEXAGON BOLT M6X16 MM (8.8)
3 16689424 SOCKET-HEAD SCREW M6X30 MM
4 16689324 SCREW M6X25
5 17037821 HEXAGON NUT M6X1
6 17088974 SPRING WASHER Ø6X18X1,4 MM
7 8109114 SUPPORT
8 17494734 WASHER Ø6X11,8X1,6 MM
9 16602124 SCREW M5X16 MM
10 17718411 PIN Ø5 MM
11 8108834 CLEVIS
12 16852501 SPLIT PIN Ø1,6X12 MM
13 17494634 SPRING WASHER Ø5,1X9,2 MM
14 8108826 LEVER
15 8108833 CLEVIS
16 8101048 KEY 3X5X12,5
