8460SRM50.10A002

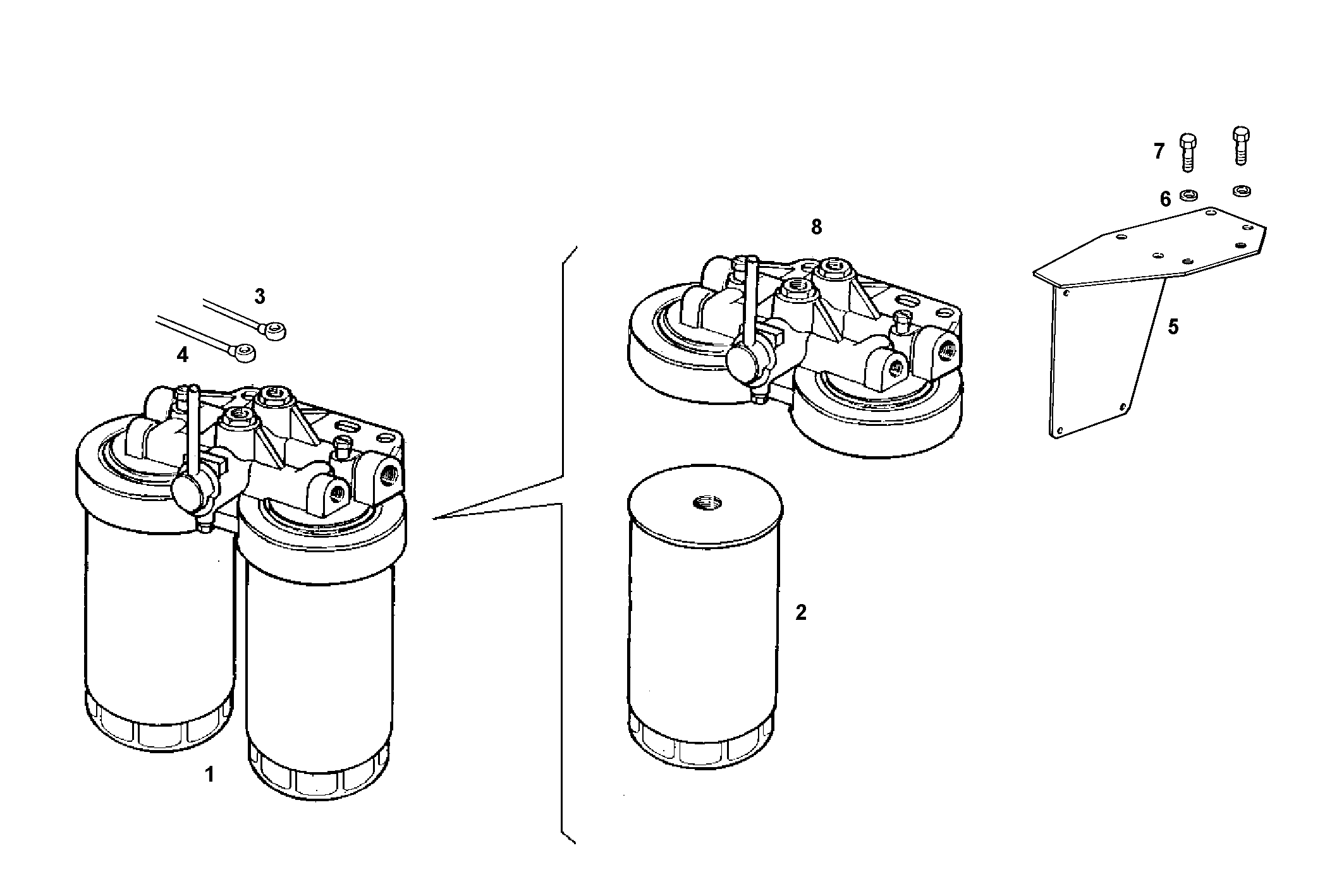

A15010024 DOUBLE FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 8108315 | FUEL FILTER ASSY |
| 2 | 8106473 | FUEL FILTER CARTRIDGE |
| 3 | 8031435 | FUEL LINE |
| 4 | 8031434 | FUEL LINE |
| 5 | 8031423 | FASTENING BRACKET |
| 6 | 17095304 | WASHER Ø12X24 MM |
| 7 | 15540621 | HEXAGON BOLT M12X40 MM |
| 8 | 8108316 | FILTER SUPPORT |
