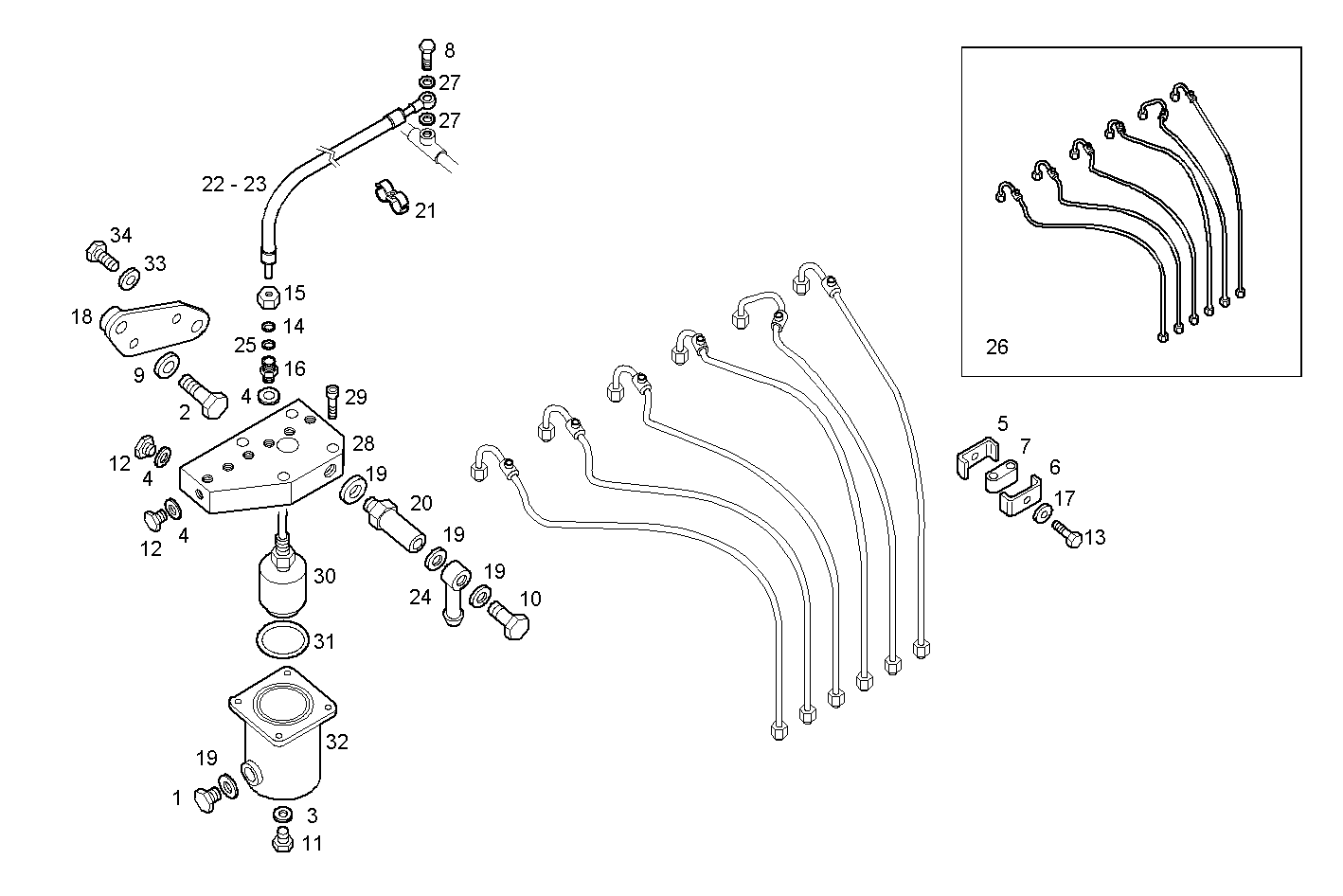

| Item |
Part number |
Description |
|
1 |
16992311 |
LOCK PLUG M14X1,5 |
|
2 |
15540621 |
HEXAGON BOLT M12X40 MM |
|
3 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
4 |
4858606 |
GASKET Ø10X14X1 MM |
|
5 |
4659219 |
PLATE |
|
6 |
4659218 |
CLIP |
|
7 |
4659217 |
DOWEL |
|
8 |
4864078 |
BANJO BOLT M8X1,25 |
|
9 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
10 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
11 |
16992211 |
THREADED PLUG M12X1,5 |
|
12 |
16992111 |
THREADED PLUG M10X1 |
|
13 |
16602224 |
HEXAGON BOLT M5X20 MM |
|
14 |
16507311 |
WASHER Ø6 MM |
|
15 |
16506611 |
UNION NUT |
|
16 |
16500011 |
PIPE SOCKET |
|
17 |
17496434 |
WASHER Ø5X18X0,8 MM |
|
18 |
8030516 |
FASTENING BRACKET |
|
19 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
20 |
8102465 |
VALVE |
|
21 |
8030239 |
CLIP Ø15 MM |
|
22 |
8030221 |
HOSE L=600 MM |
|
23 |
8030220 |
HOSE L=400 MM |
|
24 |
8029491 |
PIPE SOCKET |
|
25 |
8024646 |
O-RING Ø6 MM |
|
26 |
8023432 |
INJECTION LINE SET |
|
27 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
28 |
8030234 |
DISTRIBUTOR |
|
29 |
16689424 |
SOCKET-HEAD SCREW M6X30 MM |
|
30 |
8102285 |
INDICATOR |
|
31 |
17290081 |
O-RING Ø56,74 MM SP=3,53 MM |
|
32 |
8026365 |
TANK |
|
33 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
34 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
