8460SRM50.10A002

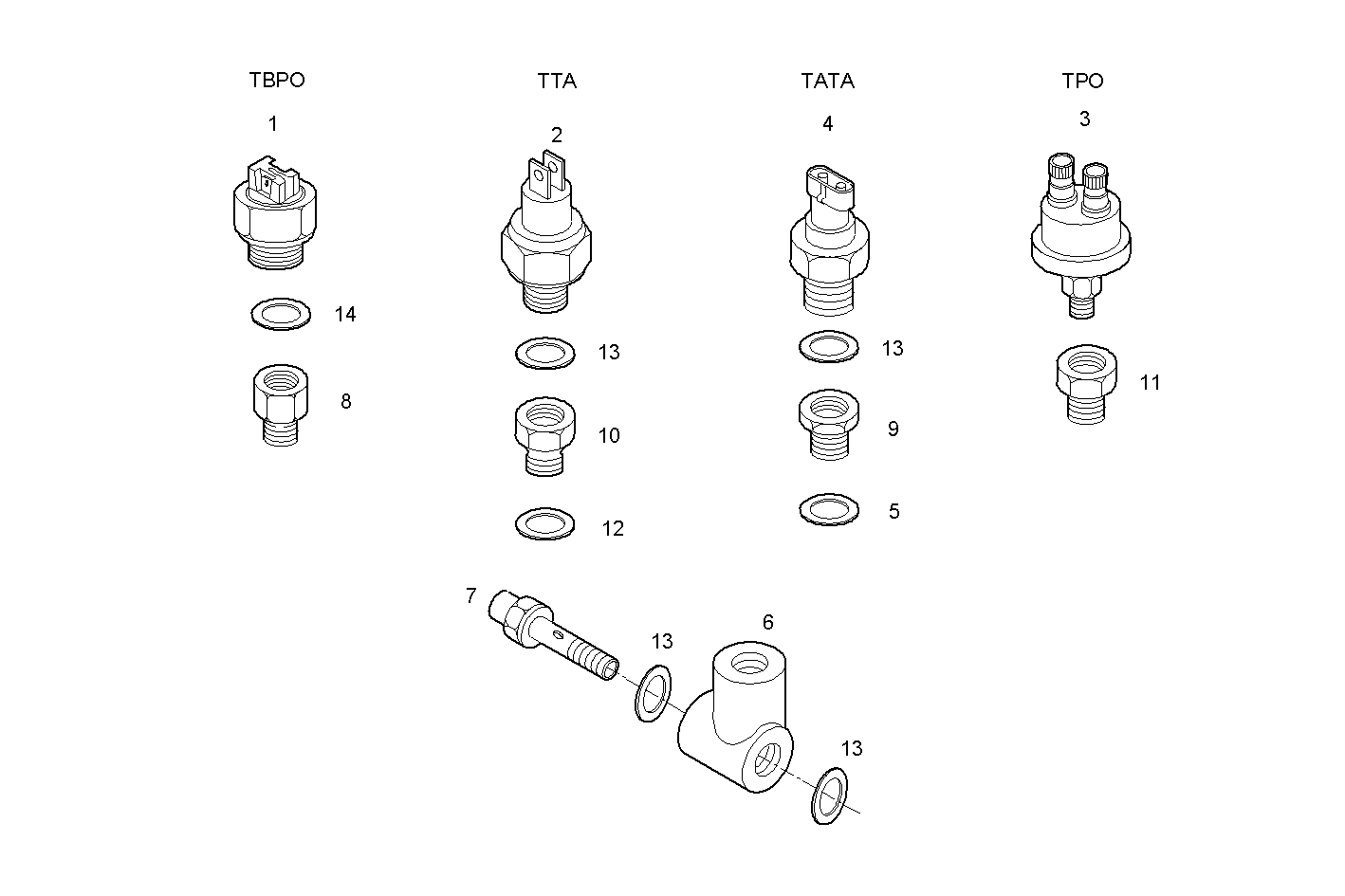

A38550089 INSULATED POLES VDO TRANSMITTER
| Item | Part number | Description |
|---|---|---|
| 1 | 8114030 | TRANSMITTER IBPO |
| 2 | 8100418 | TRANSMITTER TTA |
| 3 | 8100417 | TRANSMITTER TPO |
| 4 | 8019334 | TRANSMITTER IATA |
| 5 | 98429281 | SEAL GASKET Ø24X31 MM SP=1,5 MM |
| 6 | 61319226 | BANJO COUPLING |
| 7 | 61319225 | SCREW CONNECTOR |
| 8 | 4935560 | PIPE SOCKET |
| 9 | 4930370 | PIPE SOCKET |
| 10 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 11 | 4928113 | PIPE SOCKET |
| 12 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 13 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
