Catalogue Menu
C10ENTC23.00A002

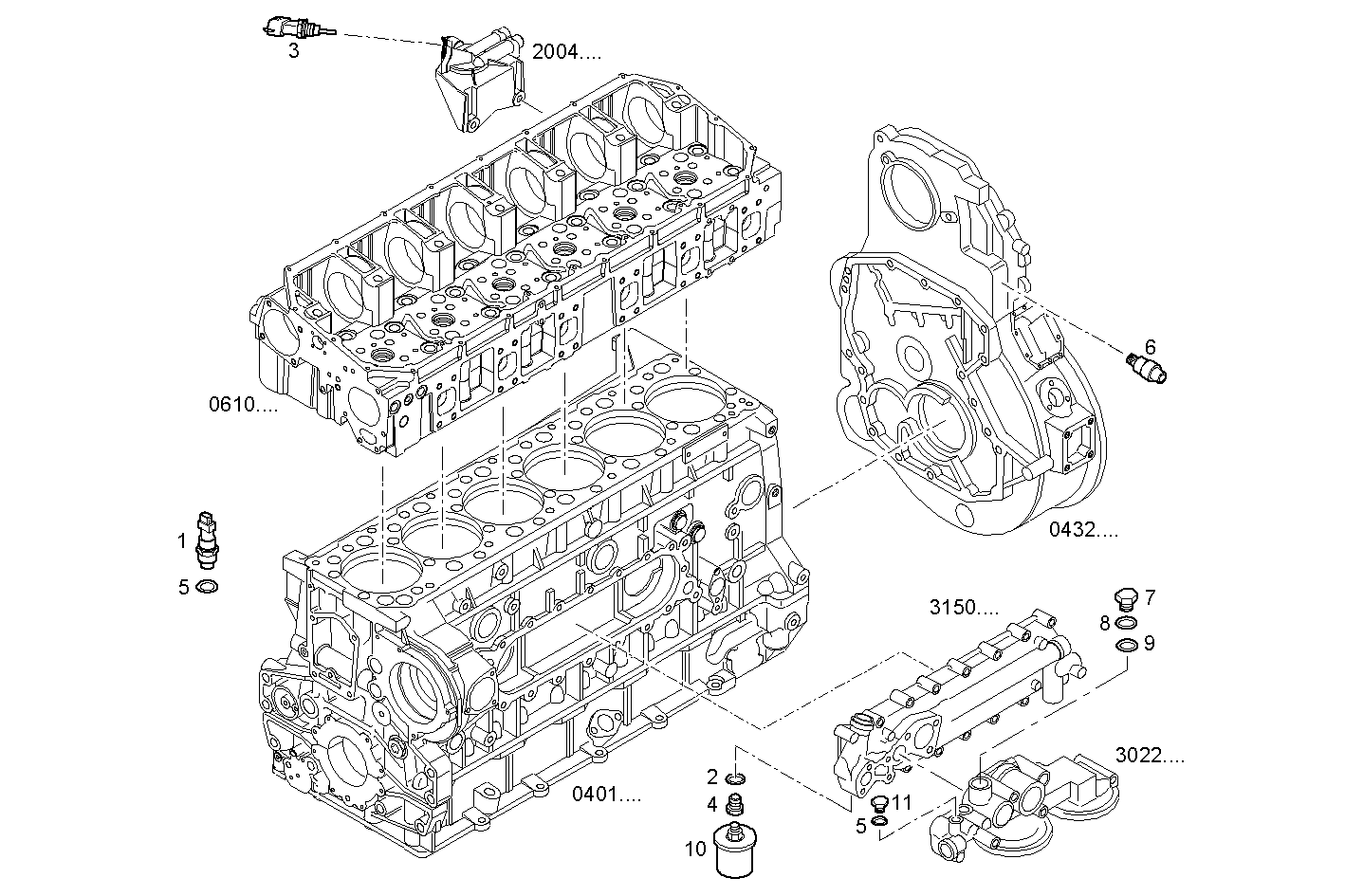

1712.035 SENSORS - interface
| Item | Part number | Description |
|---|---|---|
| 1 | 8031692 | TEMP. TRANSMITTER |
| 2 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 3 | 500346074 | TRANSMITTER Pressure |
| 4 | 8031698 | PIPE SOCKET M14X1,5 |
| 5 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 6 | 500346371 | CHOCKED FILTER INDIC. FILTRO BLOW-BY |
| 7 | 500337200 | THREADED PLUG [FROM # 50368] |
| 8 | 500337199 | O-RING [FROM # 50368] |
| 9 | 17278181 | O-RING [FROM # 50368] |
| 10 | 16992315 | THREADED PLUG M14X1,5 |
| 10 | 8031697 | TRANSMITTER TBPO |
| 11 | 16992415 | THREADED PLUG M16X1,5 |
