C10ENTC23.00A004

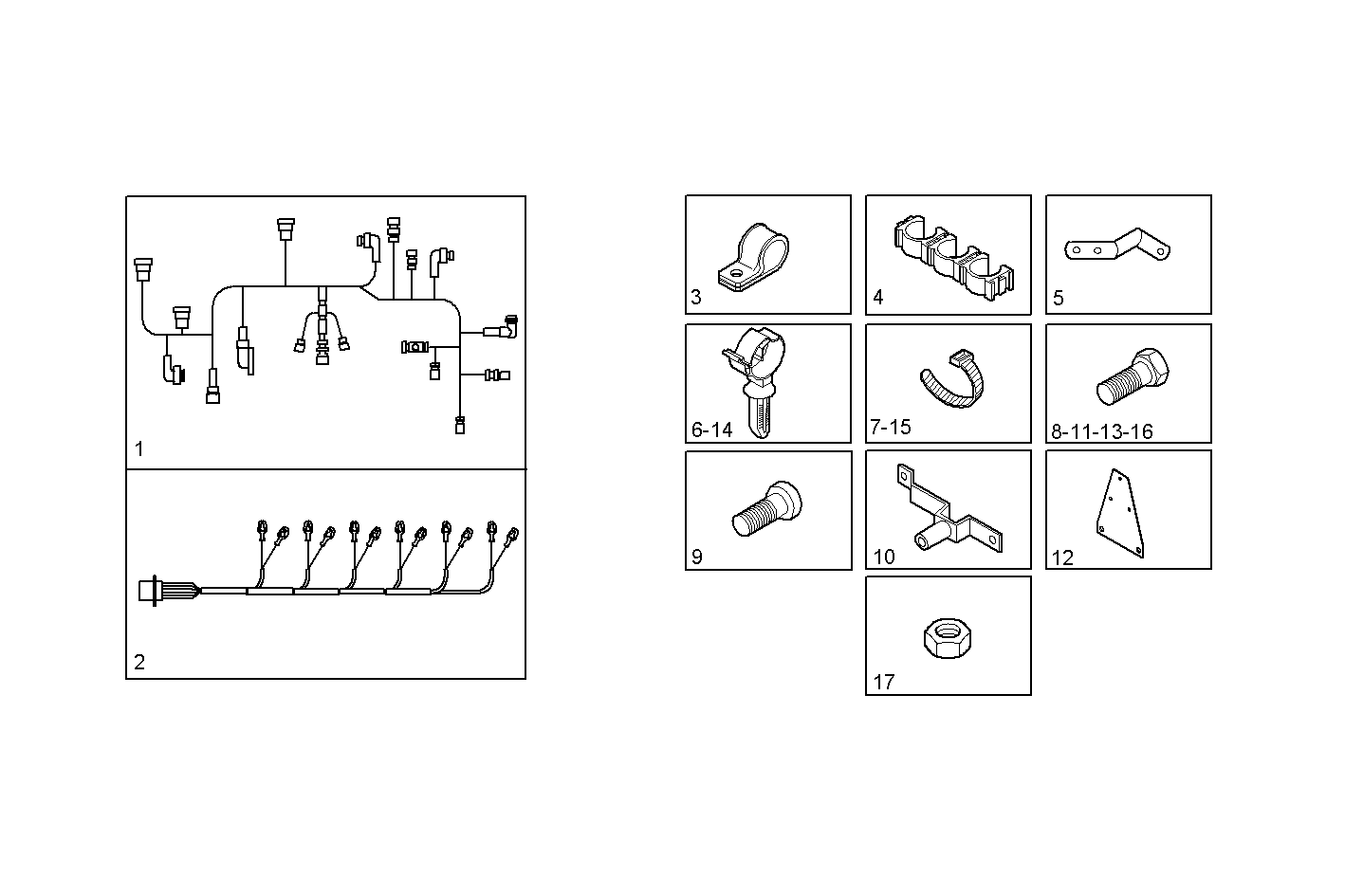

1730.027 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504091212 | ENGINE HARNESS |
| 2 | 500339303 | WIRE/CABLE FOR INJECTORS |
| 3 | 10450990 | PIPE CLIP |
| 4 | 500320256 | RETAINER |
| 5 | 500387097 | YOKE |
| 6 | 504000061 | CLIP |
| 7 | 42099097 | CABLE STRAP |
| 8 | 16592225 | HEXAGON BOLT M8X55 MM |
| 9 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 10 | 500371778 | FASTENING BRACKET |
| 11 | 16596924 | HEXAGON BOLT M6X10 MM |
| 12 | 504067009 | RETAINER |
| 13 | 16597925 | HEXAGON BOLT M8X14 MM |
| 14 | 504000063 | CLIP |
| 15 | 504023286 | CABLE STRAP |
| 16 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 17 | 17044725 | HEXAGON NUT M8 |
