C10ENTC23.00A004

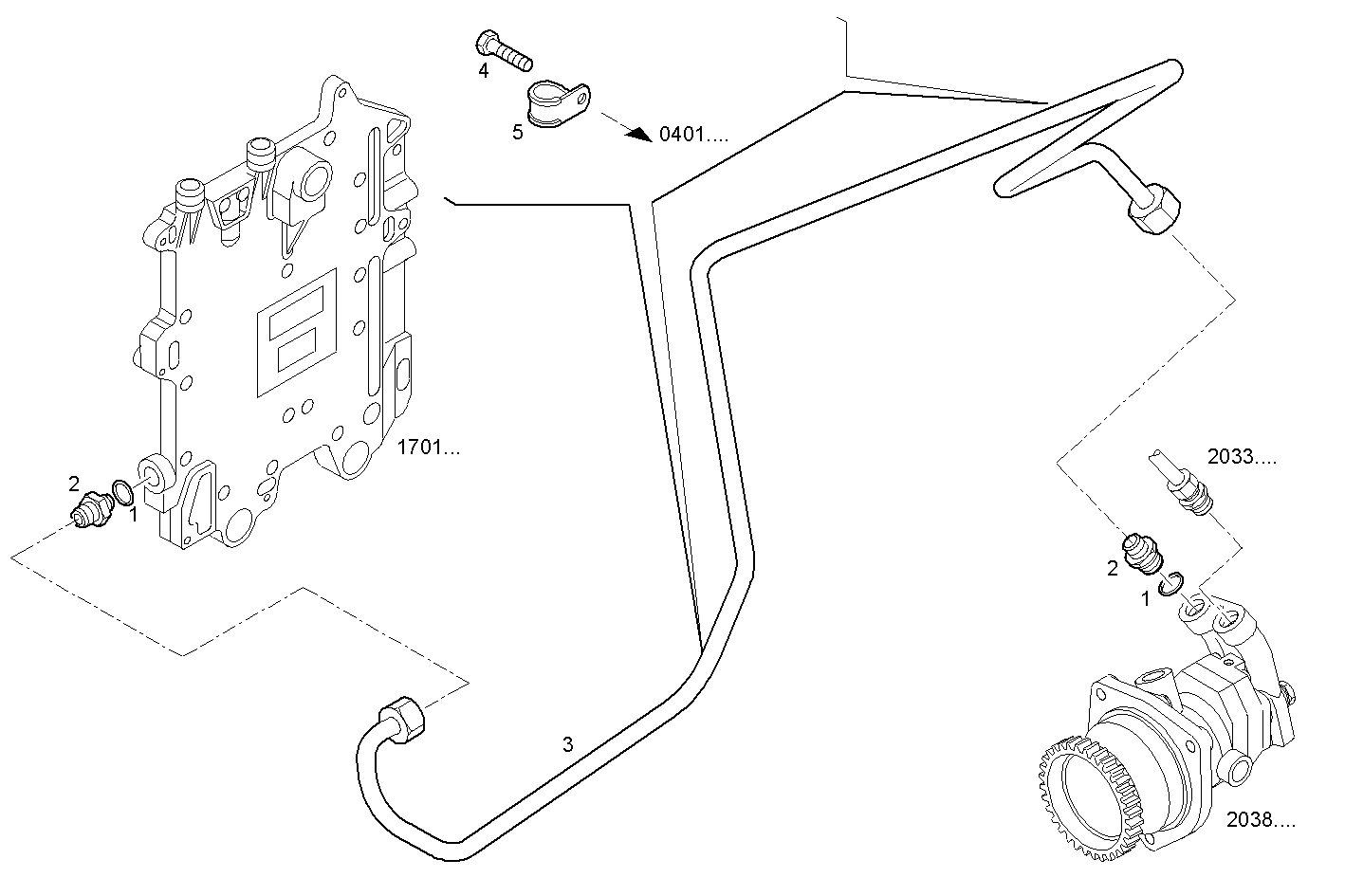

2031.012 FUEL LINES - INLET TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 16500314 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 500313907 | FUEL LINE |
| 4 | 16597925 | HEXAGON BOLT M8X14 MM |
| 5 | 17316599 | PIPE CLIP |
