C10ENTD20.00A800

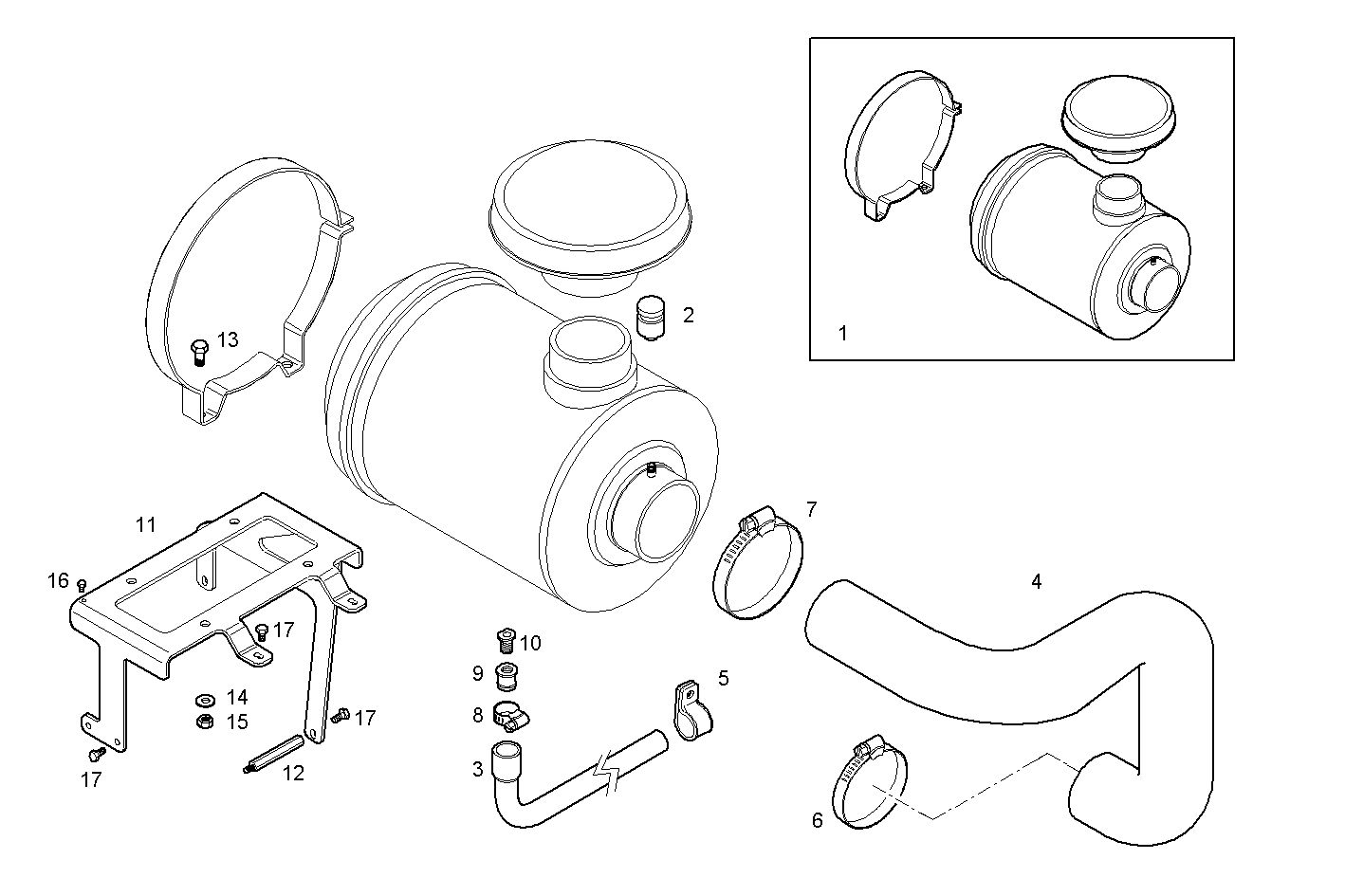

A21210531 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8034708 | AIR CLEANER ASSY |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 99456557 | RUBBER SLEEVE |
| 4 | 8043616 | FILTER HOSE |
| 5 | 17311301 | FASTENING BRACKET |
| 6 | 17765591 | CLIP Ø110/130 MM |
| 7 | 17766091 | CLIP Ø160/180 MM |
| 8 | 17764694 | CLIP Ø25/40 MM |
| 9 | 8015133 | PIPE SOCKET |
| 10 | 8015315 | PIPE SOCKET |
| 11 | 8043613 | FILTER SUPPORT |
| 12 | 8041916 | SPACING BAR |
| 13 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 14 | 17091074 | WASHER Ø12X24X2,8 MM |
| 15 | 17038425 | HEXAGON NUT M12 (8) |
| 16 | 16603425 | HEXAGON BOLT M6X10 |
| 17 | 16605424 | SCREW M8X16 MM (8.8) |
