C10ENTD20.20

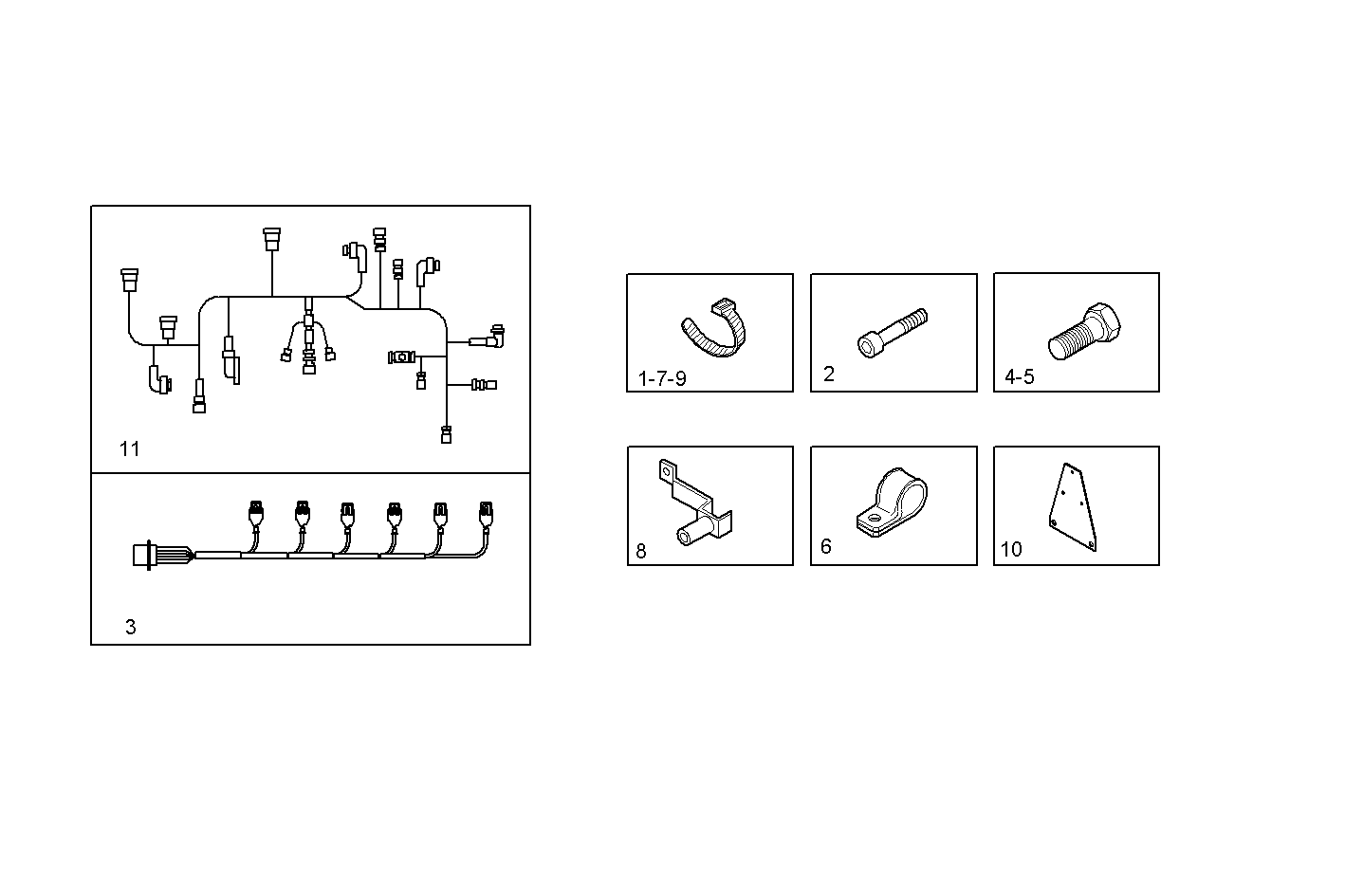

1730.059 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 42099097 | CABLE STRAP |
| 2 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 3 | 504060641 | WIRE/CABLE FOR INJECTORS |
| 4 | 16673835 | HEXAGON BOLT M8X30 MM |
| 5 | 16596925 | HEXAGON BOLT |
| 6 | 17315490 | PIPE CLIP |
| 7 | 99455033 | CLIP |
| 8 | 504020897 | FASTENING BRACKET |
| 9 | 504023286 | CABLE STRAP |
| 10 | 504067009 | RETAINER |
| 11 | 504122099 | SET OF WIRING |
