C10ENTX20.00A008

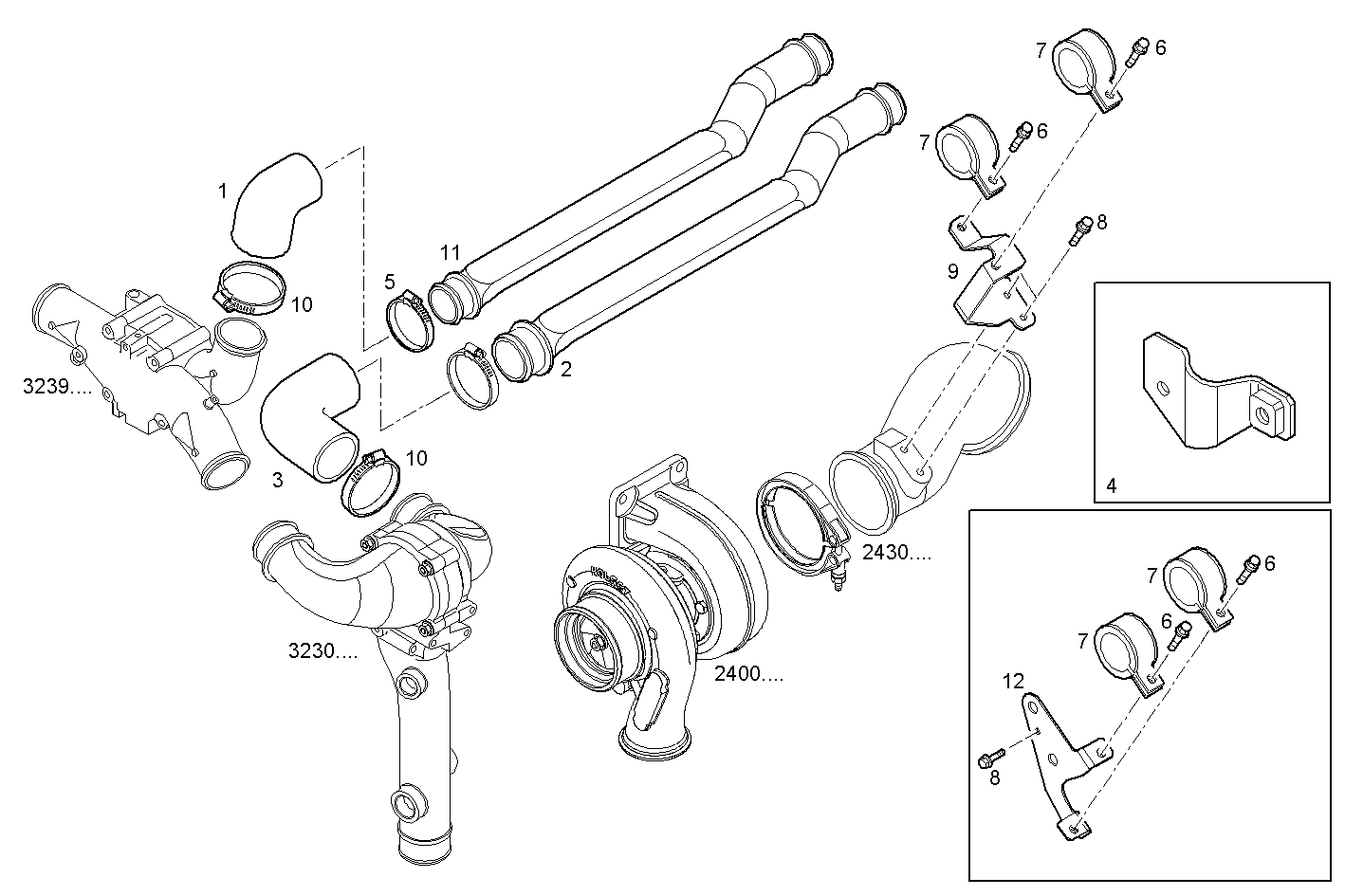

3269.002 UNIT PRESURIZATION LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 500333973 | WATER HOSE |
| 2 | 500359444 | PIPE |
| 3 | 500300744 | WATER HOSE |
| 4 | 504296909 | SUPPORT |
| 5 | 17764991 | CLIP Ø50/70 MM |
| 6 | 16673835 | HEXAGON BOLT M8X30 MM |
| 7 | 41288046 | PIPE CLIP |
| 8 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 9 | 504258603 | SUPPORT |
| 10 | 17765091 | CLIP Ø60/80 MM |
| 11 | 504155412 | PIPE |
| 12 | 500359713 | SUPPORT |
