C10ENTX20.00A008

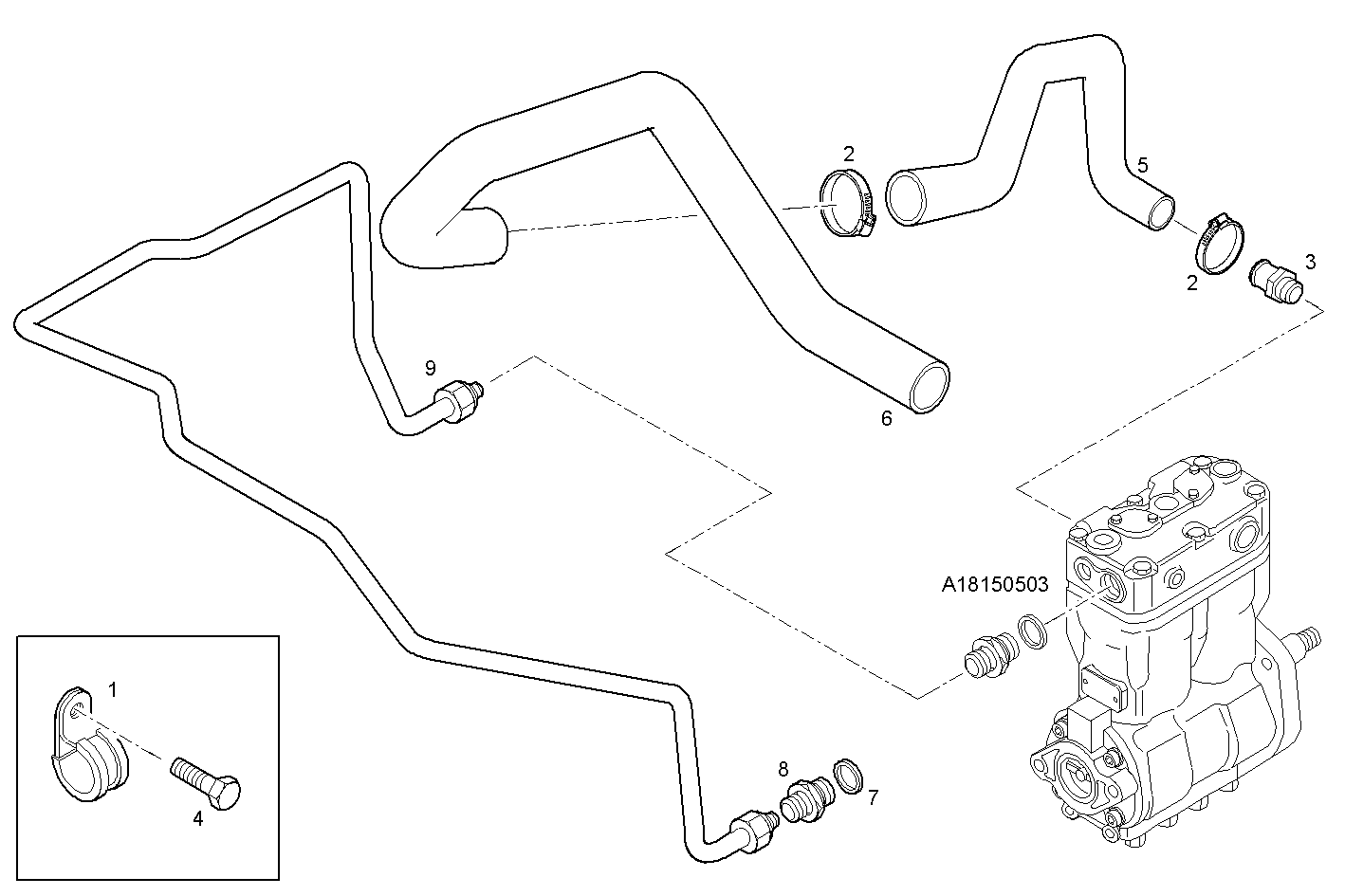

3820.009 COMPRESSOR LINE SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 16597925 | HEXAGON BOLT M8X14 MM |
| 2 | 17764791 | CLIP Ø32/50 MM |
| 3 | 41232261 | THREADED UNION |
| 4 | 41231094 | FASTENING BRACKET |
| 5 | 41225346 | OIL HOSE |
| 6 | 41225180 | SUCTION LINE |
| 7 | 16508560 | WASHER Ø26X31 MM |
| 8 | 61599713 | THREADED UNION M26X1,5 |
| 9 | 504021612 | AIR PIPE/DUCT |
