C10ENTX20.00A802

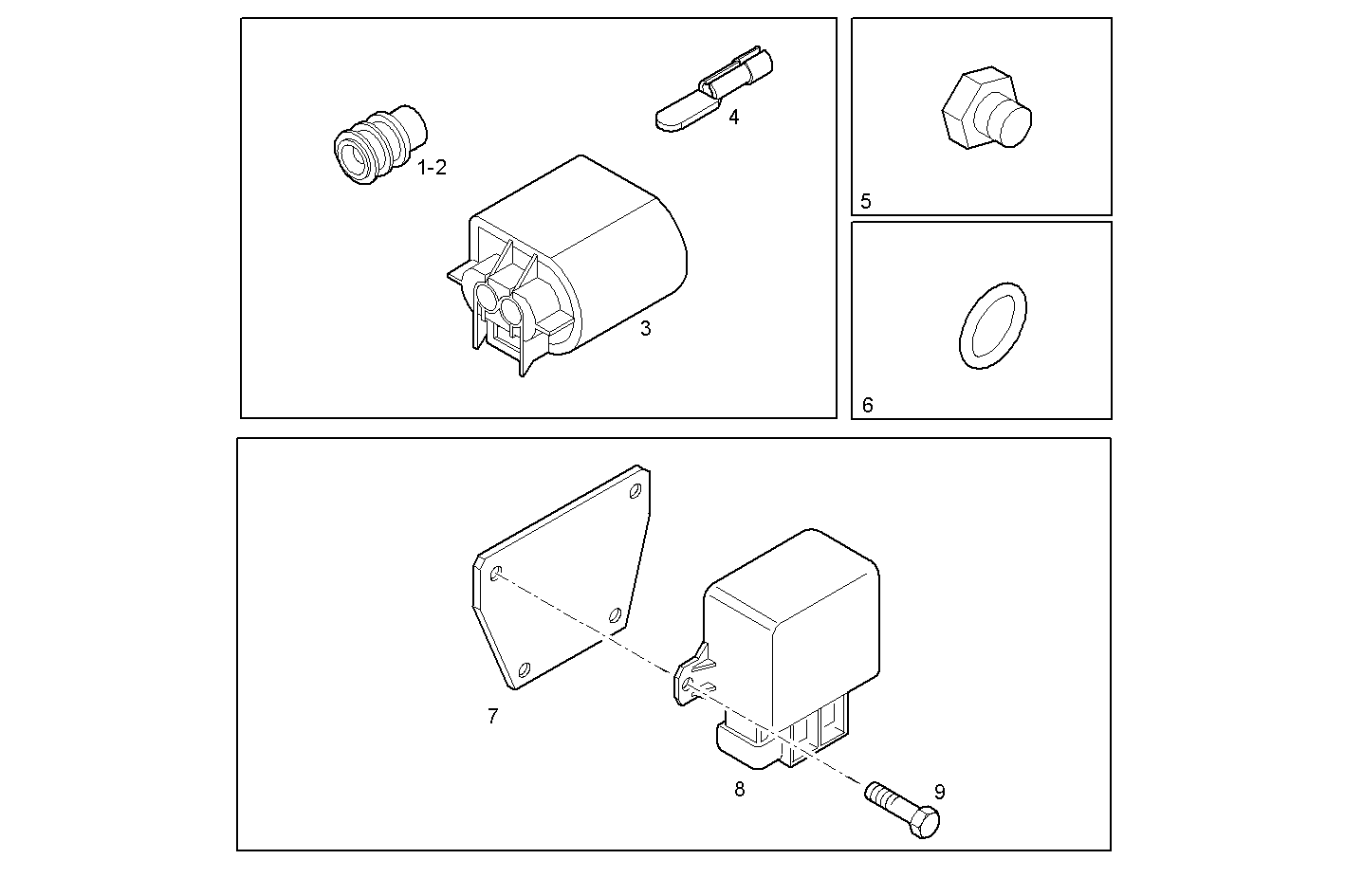

8600.013 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 4835259 | GASKET |
| 2 | 98420215 | PLUG |
| 3 | 8030896 | CONNECTION assy for alternator |
| 4 | 12309290 | TERMINAL |
| 5 | 16993011 | THREADED PLUG M30X1,5 |
| 6 | 99434480 | SEAL GASKET Ø30X40 MM |
| 7 | 504031939 | SUPPORT |
| 8 | 500343161 | RELAY |
| 9 | 18137825 | HEXAGON BOLT M6X16 |
