C13ENAM19.00

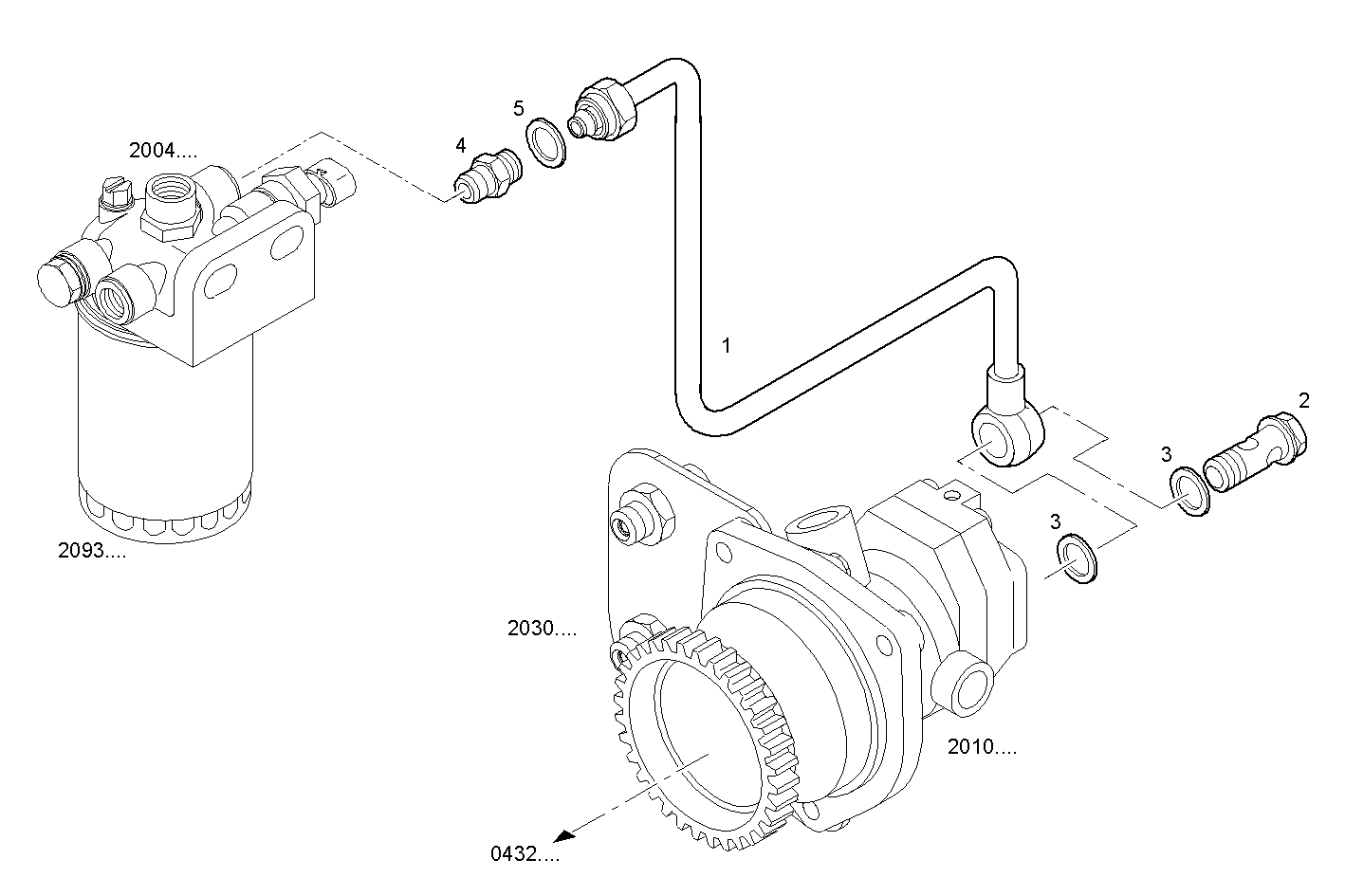

2033.003 FUEL LINES -INLET TO FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 8045012 | FUEL LINE |
| 2 | 4864084 | BANJO BOLT M16X1,5 |
| 3 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 4 | 41905554 | PIPE SOCKET M14X1,5 - M16X1,5 |
| 5 | 98474308 | SEAL GASKET Ø14X22 MM |
