C13ENSM33.10

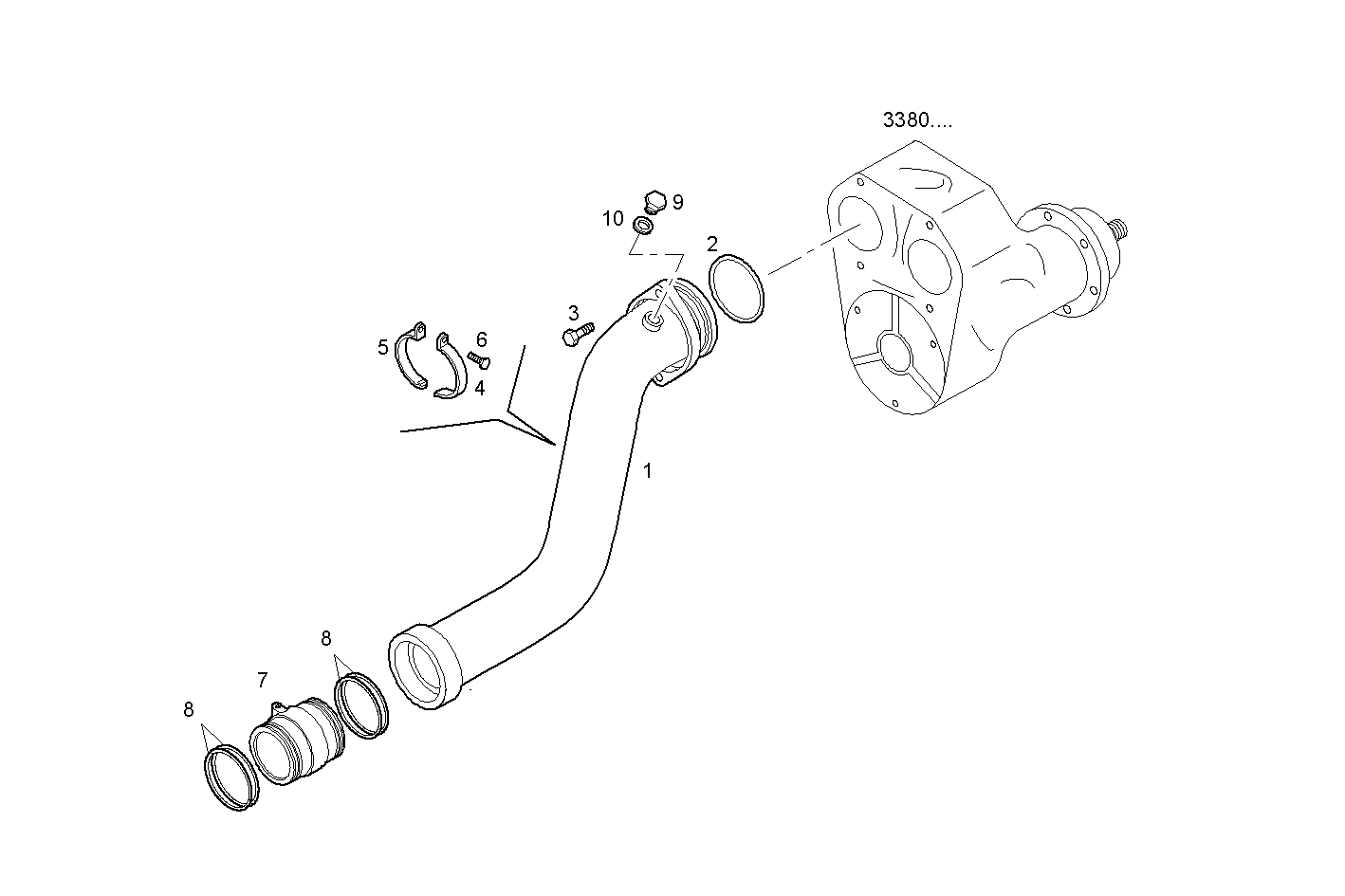

3390.081 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8047160 | SEA WATER PIPE |
| 2 | 17284981 | O-RING Ø66,34 MM SP=2,62 MM |
| 3 | 16673735 | HEXAGON BOLT M8X25 MM |
| 4 | 8017811 | CLAMP |
| 5 | 8017810 | CLAMP |
| 6 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 7 | 8038043 | SPACING BAR |
| 8 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 9 | 16992140 | PLUG M10X1 |
| 10 | 99489016 | SEAL GASKET Ø10X17 MM SP =1,5 |
