C13ENTD20.00A800

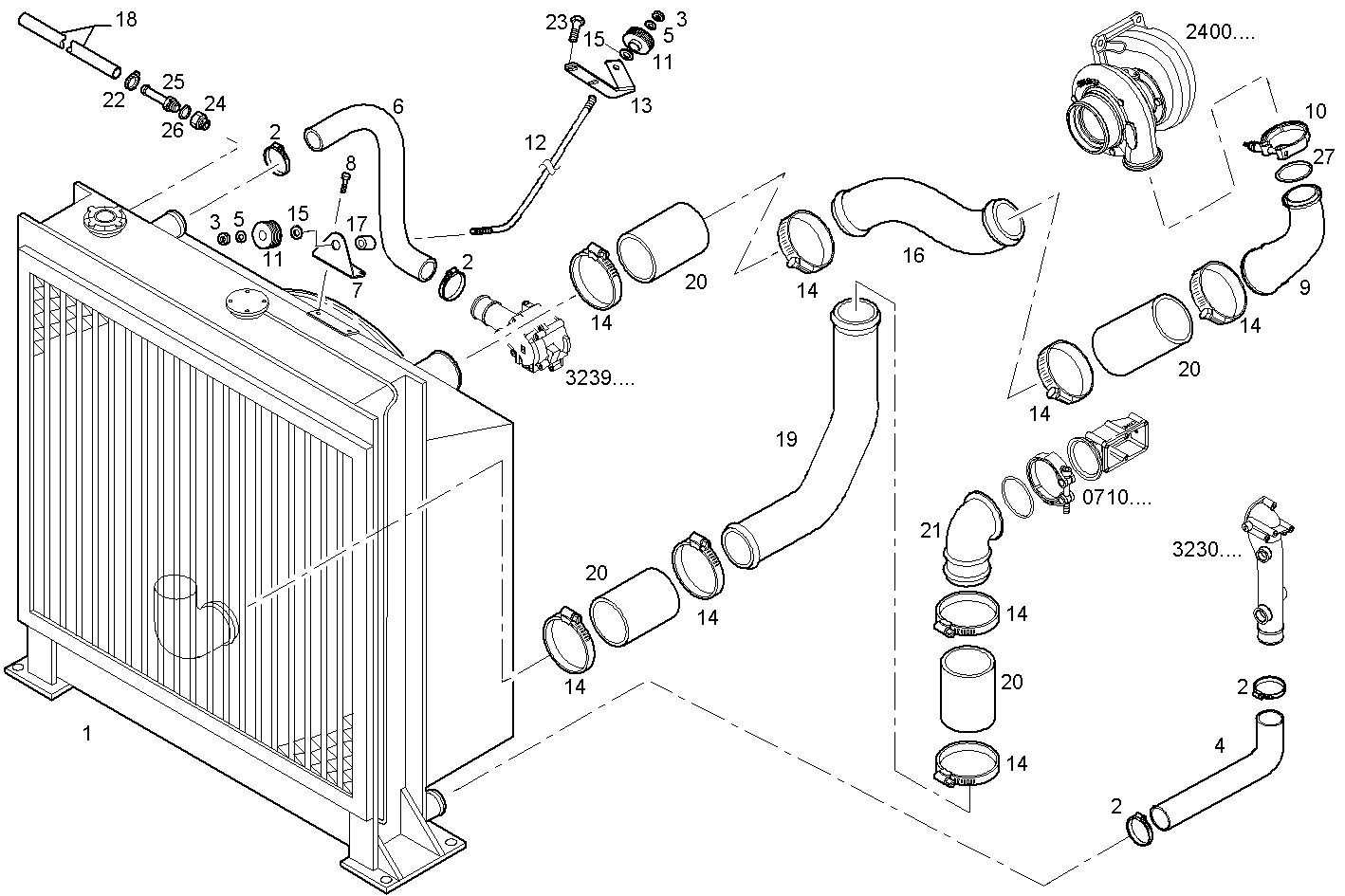

A22480516 RADIATOR 2 CIRCUITS AIR/WATER [FROM 26-02-07] [FROM 26-02-07]
| Item | Part number | Description |
|---|---|---|
| 1 | 8045778 | WATER RADIATOR |
| 2 | 17765091 | CLIP Ø60/80 MM |
| 3 | 17038425 | HEXAGON NUT M12 (8) |
| 4 | 8040979 | RUBBER SLEEVE |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 8040980 | RUBBER SLEEVE |
| 7 | 8019397 | RETAINER |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 504039838 | AIR PIPE/DUCT |
| 10 | 500307975 | CLIP |
| 11 | 741569 | RUBBER LUG |
| 12 | 8041271 | TIE ROD |
| 13 | 8041985 | RETAINER |
| 14 | 4788410 | CLIP Ø92/98 MM |
| 15 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 16 | 8041913 | AIR PIPE/DUCT |
| 17 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 18 | 8041808 | BREATHER PIPE |
| 19 | 8041914 | AIR PIPE/DUCT |
| 20 | 8030531 | TURBOCHARGER HOSE |
| 21 | 8041915 | CONNECTOR SLEEVE |
| 22 | 18087993 | CLIP Ø8/16 MM |
| 23 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 24 | 8100963 | PIPE SOCKET |
| 25 | 4935134 | OIL LINE |
| 26 | 10284460 | SEAL GASKET Ø10X16 MM |
| 27 | 17290781 | O-RING Ø78,97X3,53 MM |
