C13ENTI20.00A100

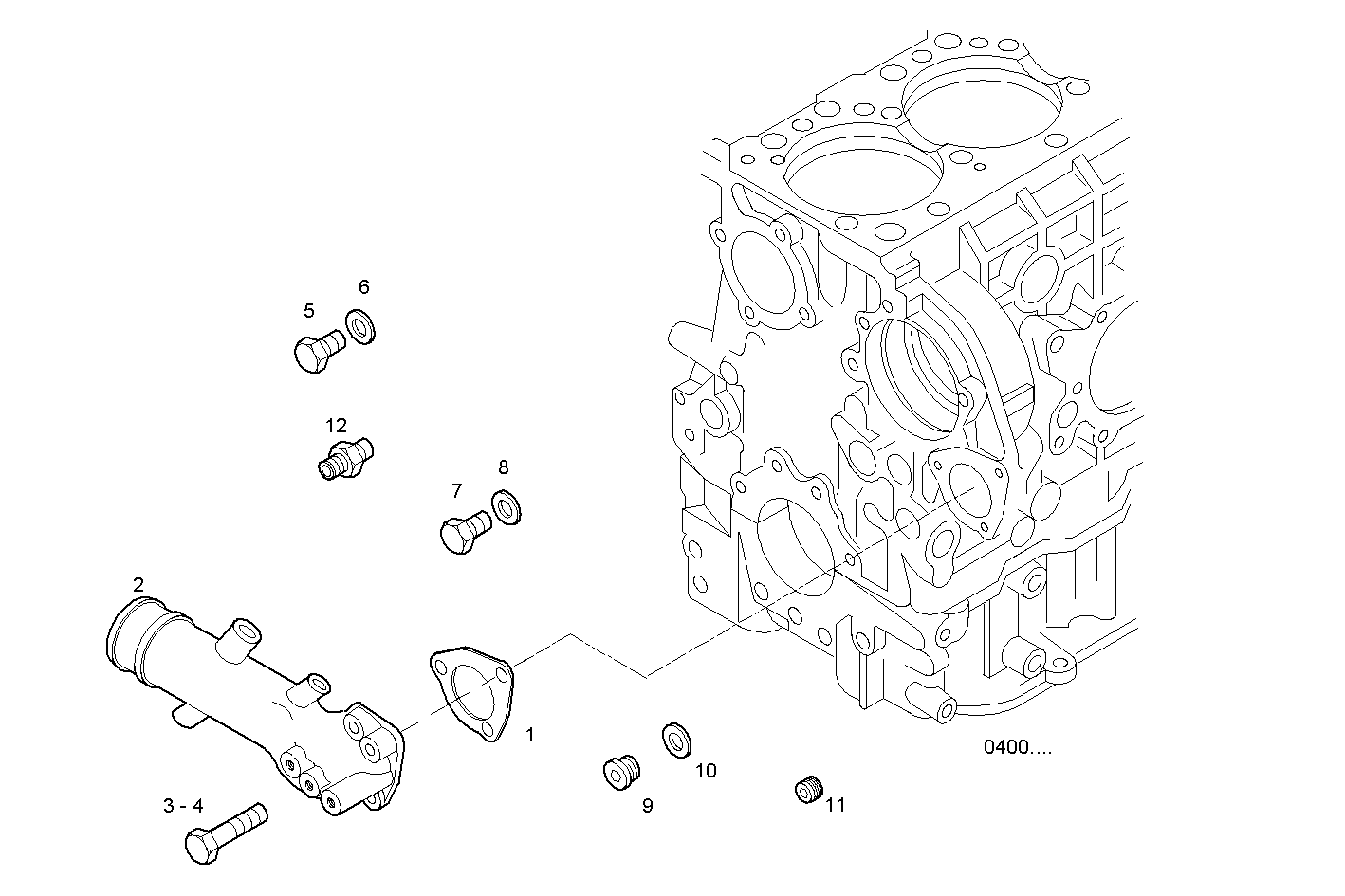

3210.311 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99466940 | FLAT ENGINE GASKET |
| 2 | 99478887 | WATER PIPE |
| 3 | 16674934 | HEXAGON BOLT M8X80 MM |
| 4 | 16674434 | HEXAGON BOLT M8X50 MM |
| 5 | 16992415 | THREADED PLUG M16X1,5 |
| 6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 7 | 16992515 | THREADED PLUG M18X1,5 |
| 8 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 9 | 16993011 | THREADED PLUG M30X1,5 |
| 10 | 99434480 | SEAL GASKET Ø30X40 MM |
| 11 | 99430692 | THREADED PLUG 1/2'' |
| 12 | 99464284 | PIPE SOCKET M30X1,5 |
