C13ENTM50.10

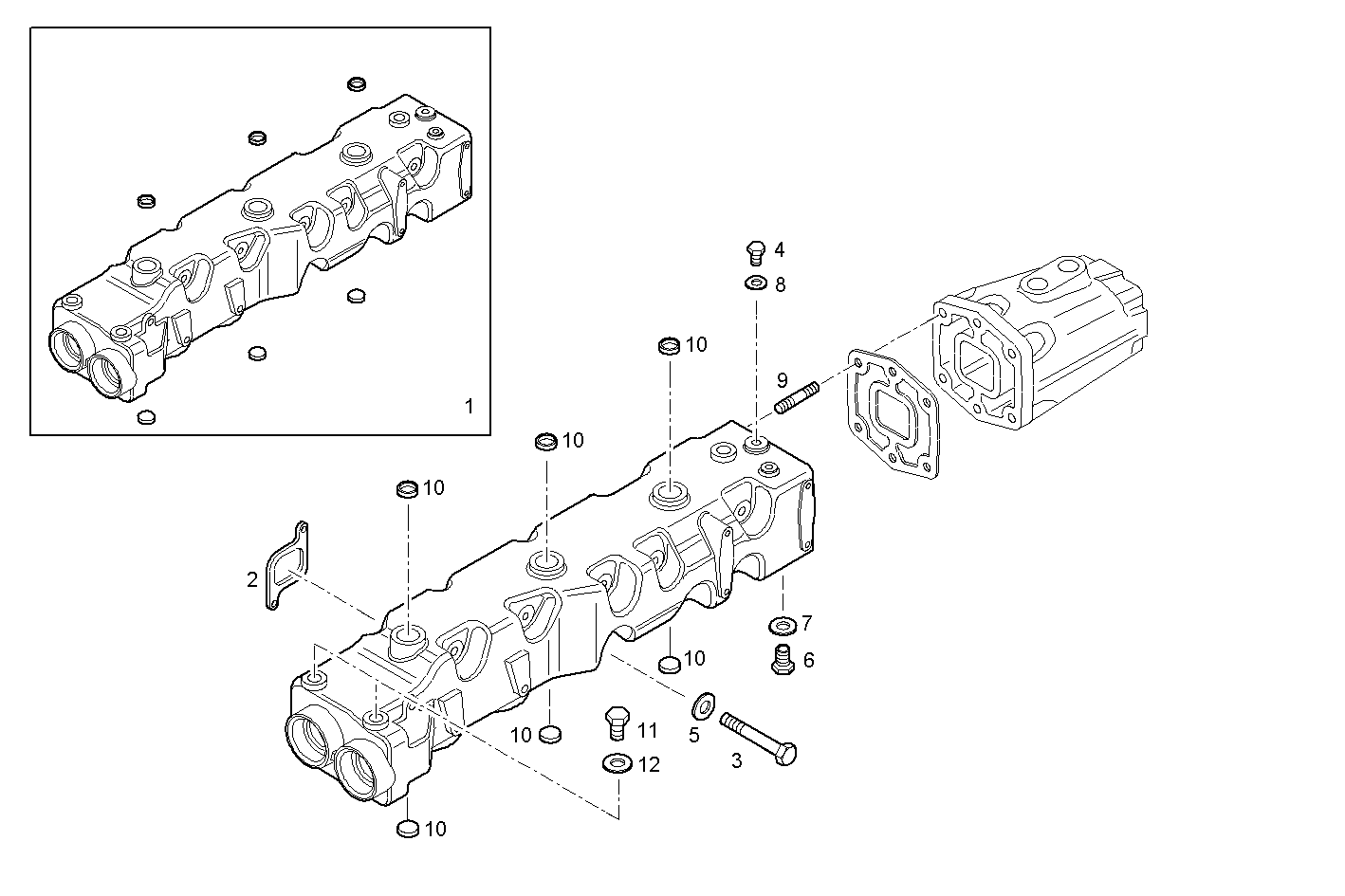

0780.002 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8037395 | COOLED EXHAUST MANIF. ASSY |
| 2 | 8035856 | EXH. MANIFOLD GKT |
| 3 | 16629234 | SCREW M10X1,5X150 |
| 4 | 16992240 | THREADED PLUG M12X1,5 |
| 5 | 17090274 | WASHER Ø10X20 MM |
| 6 | 16992340 | THREADED PLUG M14X1,5 |
| 7 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 8 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 9 | 16733624 | STUD |
| 10 | 16990870 | LOCK PLUG Ø28 MM |
| 11 | 16992640 | PLUG M22X1,5 |
| 12 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
