C13ENTM50.10

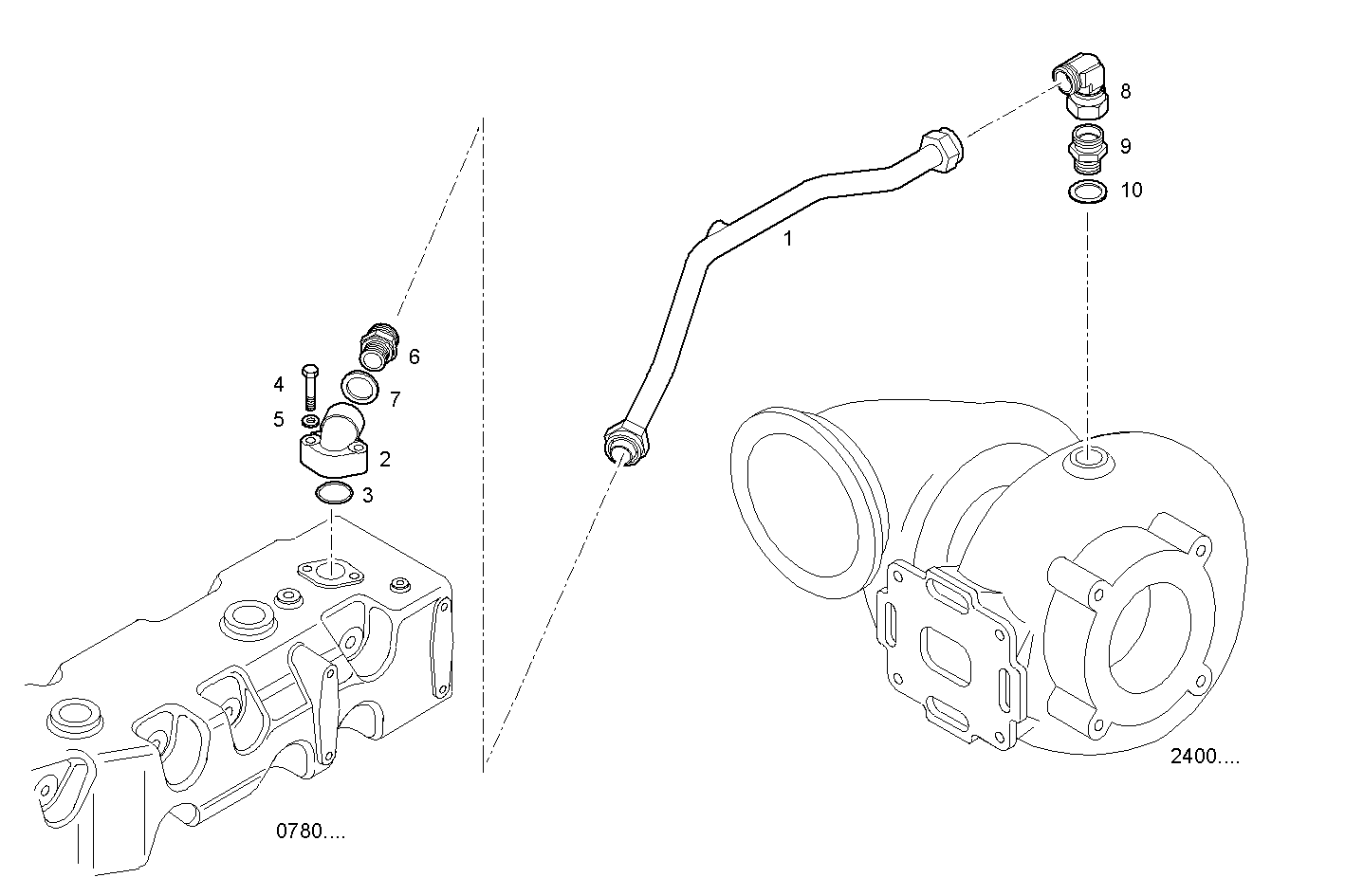

3248.016 TURBO WATER OUTLET PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8040703 | WATER PIPE |
| 2 | 8039949 | FLANGED SOCKET [UP TO 06/02/06] |
| 3 | 98465110 | O-RING Ø31,42 MM SP=2,62 MM |
| 4 | 16605934 | HEXAGON BOLT M8X40 MM (10.9) |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 8110943 | PIPE SOCKET M30X1,5/M25X1,5 |
| 7 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
| 8 | 16526514 | ELBOW COUPLING |
| 9 | 8040224 | THREADED UNION |
| 10 | 98429282 | SEAL GASKET Ø26X33 MM SP=1,5 MM |
