C13ENTM50.10

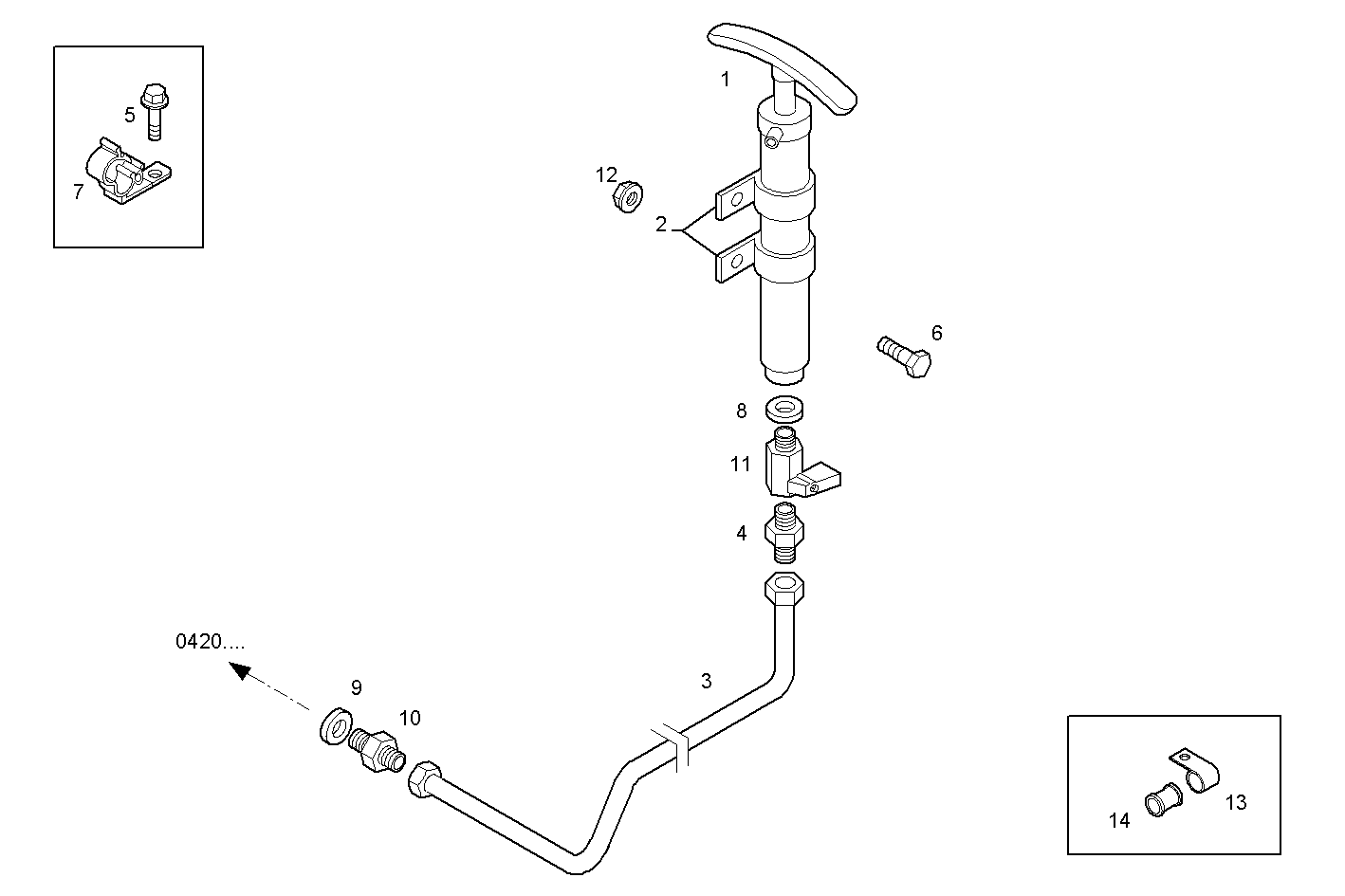

5510.058 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4928851 | CLIP |
| 3 | 8040972 | OIL LINE |
| 4 | 8011422 | PIPE SOCKET Ø3/8''/M22 MM |
| 5 | 16605324 | SCREW M8X12 |
| 6 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 7 | 99453771 | RETAINER |
| 8 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 9 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
| 10 | 8041011 | PIPE SOCKET |
| 11 | 8040027 | RETAINER COCK |
| 12 | 17044721 | HEXAGON NUT M8X1,25 |
| 13 | 4763804 | FASTENING BRACKET |
| 14 | 4757122 | RUBBER PAD |
