C13ENTM50.10

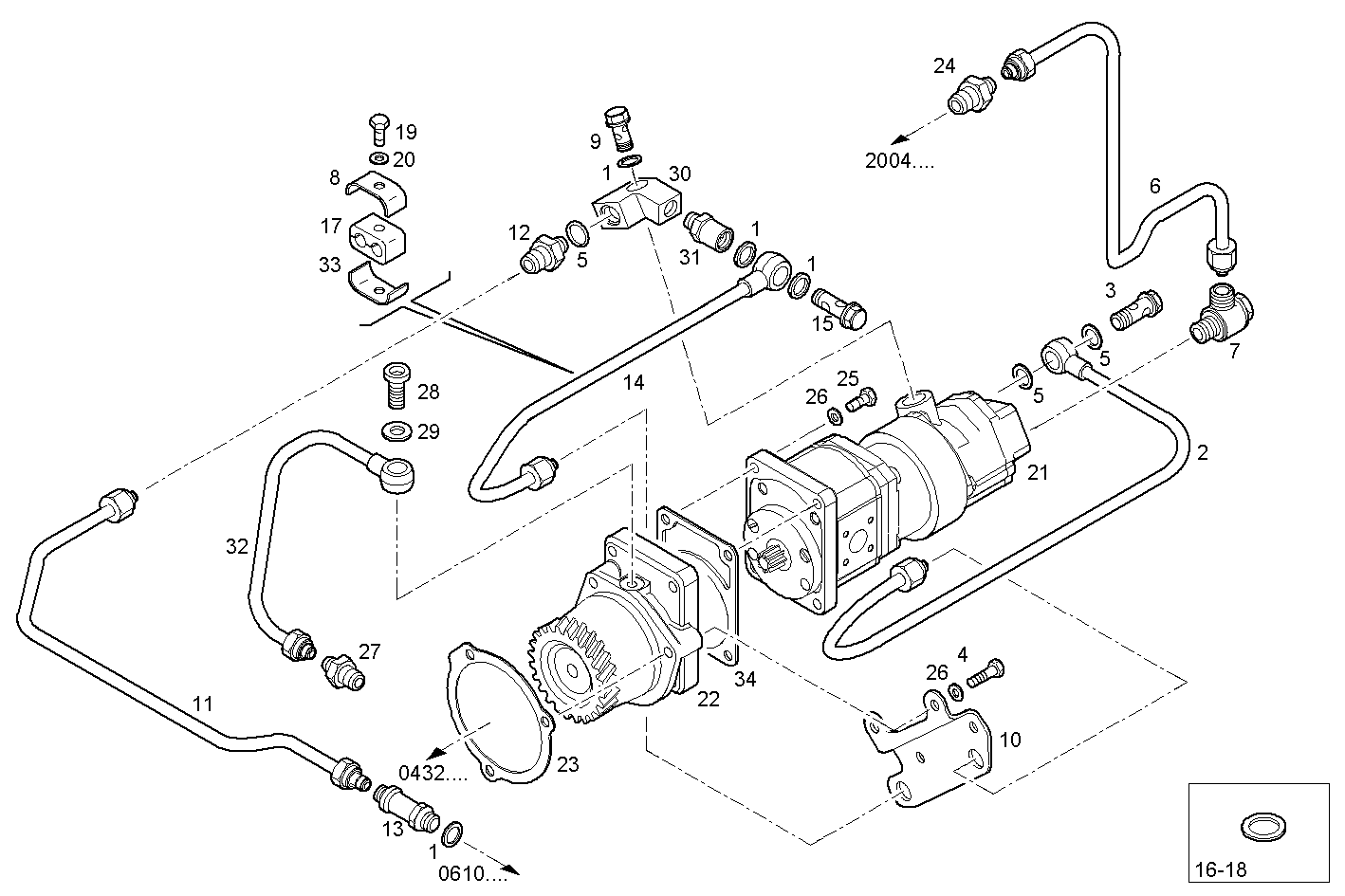

A09500506 HYDRAULIC PUMP

Iveco/FPT HYDRAULIC PUMP

Item Part number Description
1 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
2 8049157 FUEL LINE
3 504081282 SCREW CONNECTOR M16X1,5
4 16691124 SOCKET-HEAD SCREW M8X50 MM
5 99489019 WASHER Ø16X24 MM SP=1,5 MM
6 8050298 FUEL LINE
7 8050956 SWIVEL COUPLING
8 4644288 CLIP
9 504087373 SCREW CONNECTOR M16X1,5
10 8049120 FASTENING BRACKET
11 8050301 FUEL LINE
12 504081274 THREADED UNION M16X1,5 - M18X1,5
13 99455351 CONNECTION PIPE M14X1,5 - M18X1,5
14 8049160 FUEL LINE
15 4864083 SCREW CONNECTOR M14X1,5X30 MM
16 16508260 WASHER Ø16X20 MM
17 4871771 RUBBER LUG
18 98474309 WASHER Ø16X24 MM SP=1,9 MM
19 16603725 HEXAGON BOLT M6X20 MM
20 17088474 WASHER Ø6X12 MM
21 8048621 FUEL PUMP
22 8050364 SUPPORT ASSY
23 504045787 FLAT ENGINE GASKET
24 16500215 THREADED UNION M14X1,5/M16X1,5
25 16605824 HEXAGON BOLT M8X35 MM
26 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
27 504074674 THREADED UNION
28 4864079 SCREW CONNECTOR M10X1
29 98474305 WASHER Ø10X17 MM SP=2,3
30 500342081 PIPE SOCKET
31 500328251 VALVE 0,2-0,3 BAR
32 8050945 OIL LINE
33 4644289 CLIP
34 8034048 FLAT ENGINE GASKET
