C13ENTM50.10

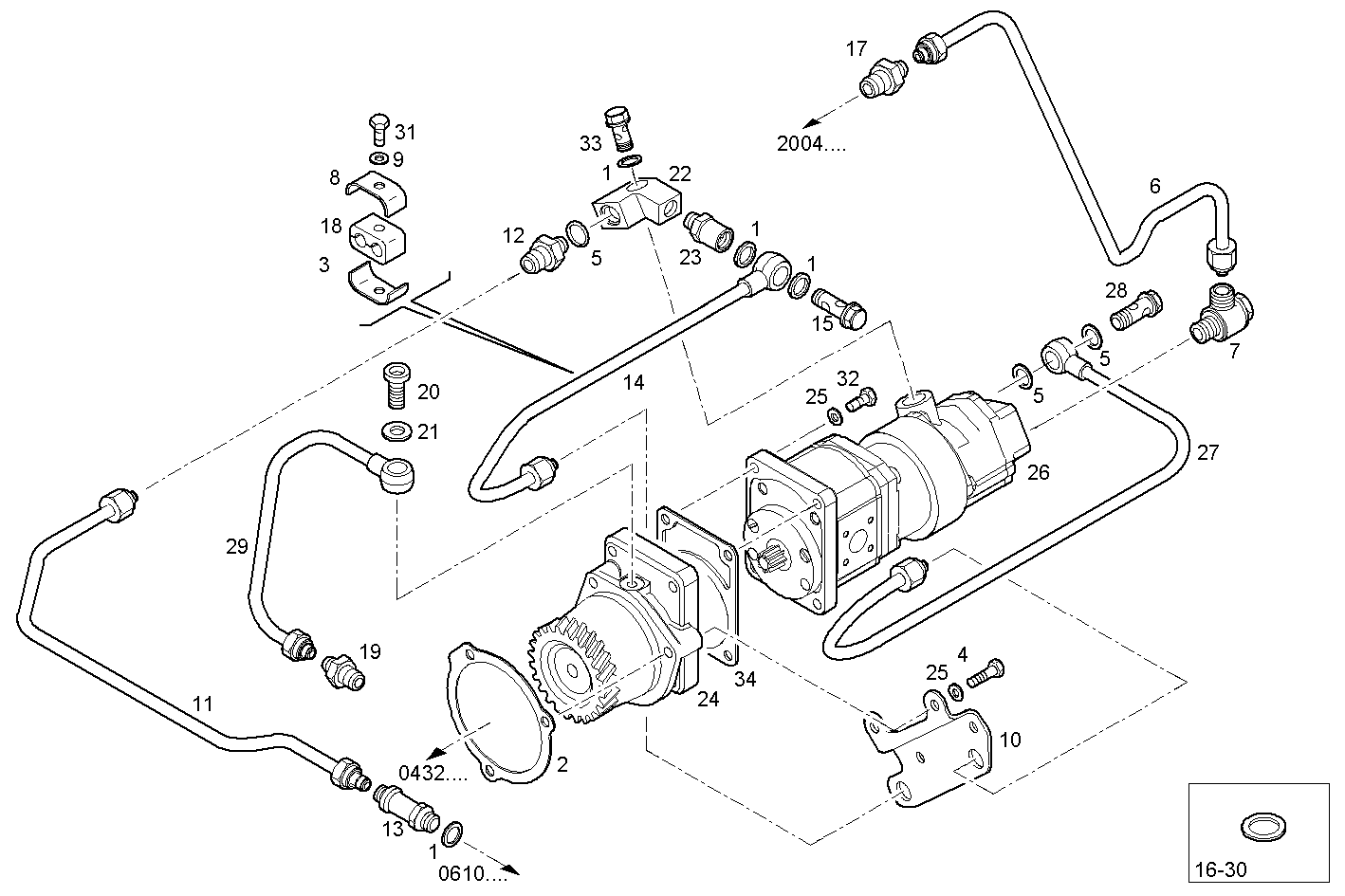

A09500507 HYDRAULIC PUMP

Iveco/FPT HYDRAULIC PUMP

Item Part number Description
1 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
2 504045787 FLAT ENGINE GASKET
3 4644289 CLIP
4 16691124 SOCKET-HEAD SCREW M8X50 MM
5 99489019 WASHER Ø16X24 MM SP=1,5 MM
6 8050295 FUEL LINE
7 8050956 SWIVEL COUPLING
8 4644288 CLIP
9 17088474 WASHER Ø6X12 MM
10 8049120 FASTENING BRACKET
11 8050301 FUEL LINE
12 504081274 THREADED UNION M16X1,5 - M18X1,5
13 99455351 CONNECTION PIPE M14X1,5 - M18X1,5
14 8049160 FUEL LINE
15 4864083 SCREW CONNECTOR M14X1,5X30 MM
16 16508260 WASHER Ø16X20 MM
17 16500215 THREADED UNION M14X1,5/M16X1,5
18 4871771 RUBBER LUG
19 504074674 THREADED UNION
20 4864079 SCREW CONNECTOR M10X1
21 98474305 WASHER Ø10X17 MM SP=2,3
22 500342081 PIPE SOCKET
23 500328251 VALVE 0,2-0,3 BAR
24 8050364 SUPPORT ASSY
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
26 8048621 FUEL PUMP
27 8049157 FUEL LINE
28 504081282 SCREW CONNECTOR M16X1,5
29 8050945 OIL LINE
30 98474309 WASHER Ø16X24 MM SP=1,9 MM
31 16603725 HEXAGON BOLT M6X20 MM
32 16605824 HEXAGON BOLT M8X35 MM
33 504087373 SCREW CONNECTOR M16X1,5
34 8034048 FLAT ENGINE GASKET
