C13ENTM50.10

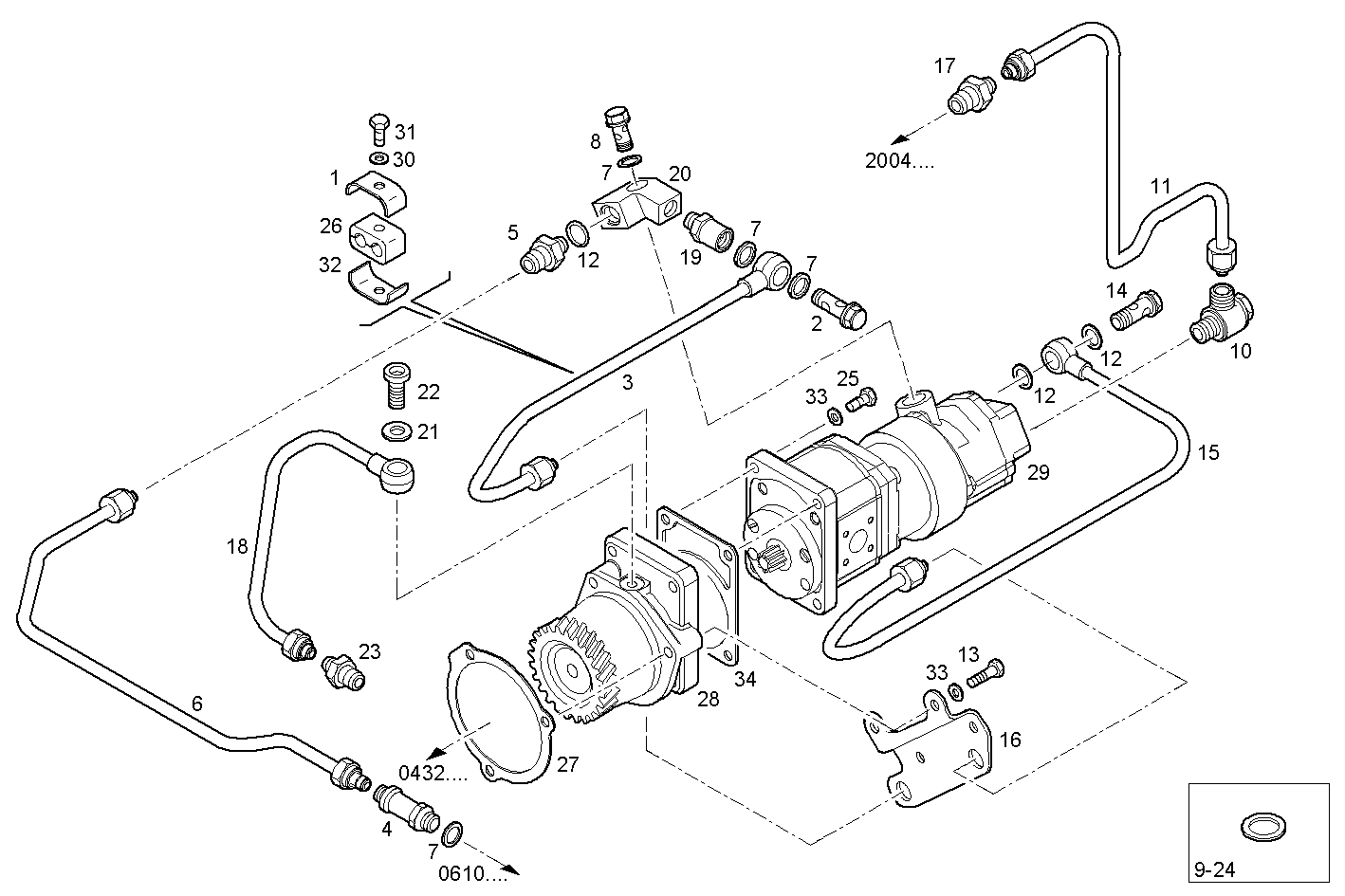

A09500508 HYDRAULIC PUMP

Iveco/FPT HYDRAULIC PUMP

Item Part number Description
1 4644288 CLIP
2 4864083 SCREW CONNECTOR M14X1,5X30 MM
3 8049160 FUEL LINE
4 99455351 CONNECTION PIPE M14X1,5 - M18X1,5
5 504081274 THREADED UNION M16X1,5 - M18X1,5
6 8050301 FUEL LINE
7 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
8 504087373 SCREW CONNECTOR M16X1,5
9 98474309 WASHER Ø16X24 MM SP=1,9 MM
10 8050956 SWIVEL COUPLING
11 8050298 FUEL LINE
12 99489019 WASHER Ø16X24 MM SP=1,5 MM
13 16691124 SOCKET-HEAD SCREW M8X50 MM
14 504081282 SCREW CONNECTOR M16X1,5
15 8049157 FUEL LINE
16 8049120 FASTENING BRACKET
17 16500215 THREADED UNION M14X1,5/M16X1,5
18 8050945 OIL LINE
19 500328251 VALVE 0,2-0,3 BAR
20 500342081 PIPE SOCKET
21 98474305 WASHER Ø10X17 MM SP=2,3
22 4864079 SCREW CONNECTOR M10X1
23 504074674 THREADED UNION
24 16508260 WASHER Ø16X20 MM
25 16605824 HEXAGON BOLT M8X35 MM
26 4871771 RUBBER LUG
27 504045787 FLAT ENGINE GASKET
28 8050364 SUPPORT ASSY
29 8048621 FUEL PUMP
30 17088474 WASHER Ø6X12 MM
31 16603725 HEXAGON BOLT M6X20 MM
32 4644289 CLIP
33 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
34 8034048 FLAT ENGINE GASKET
